VAC8610F 100V/500A Wireless Ammeter Voltmeter Battery Capacity Monitoring Coulomb Counter 50A/100A Voltage Current Indicator
I. Introduction to the Instrument

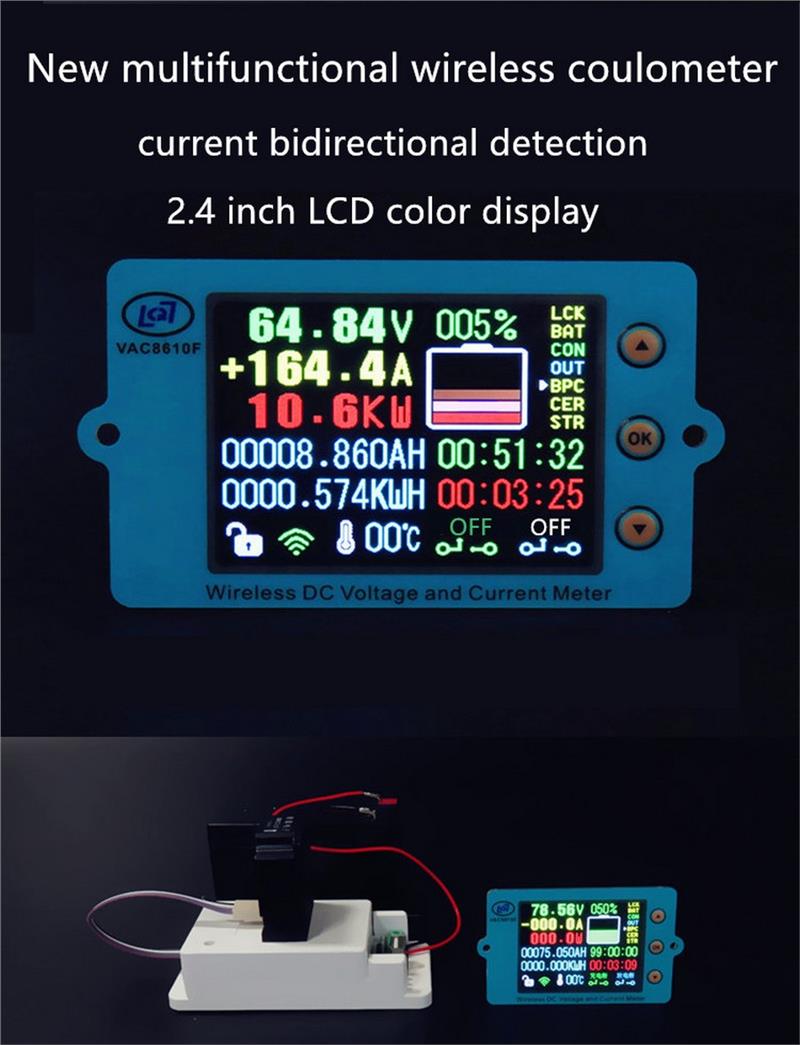

VAC8610F is a multifunctional instrument based on 2.4G wireless data transmission technology, which can display voltage, current, power, capacity, energy, temperature, running time and other physical parameters in real time. battery charging and discharge management, overvoltage, undervoltage, overcurrent protection and buzzer alarm can be realized by two relay interfaces reserved. And the instrument uses 2.4 inch color liquid crystal as the display, the display data is more comprehensive, clear, easy to observe, reserved communication interface, easy to secondary development.

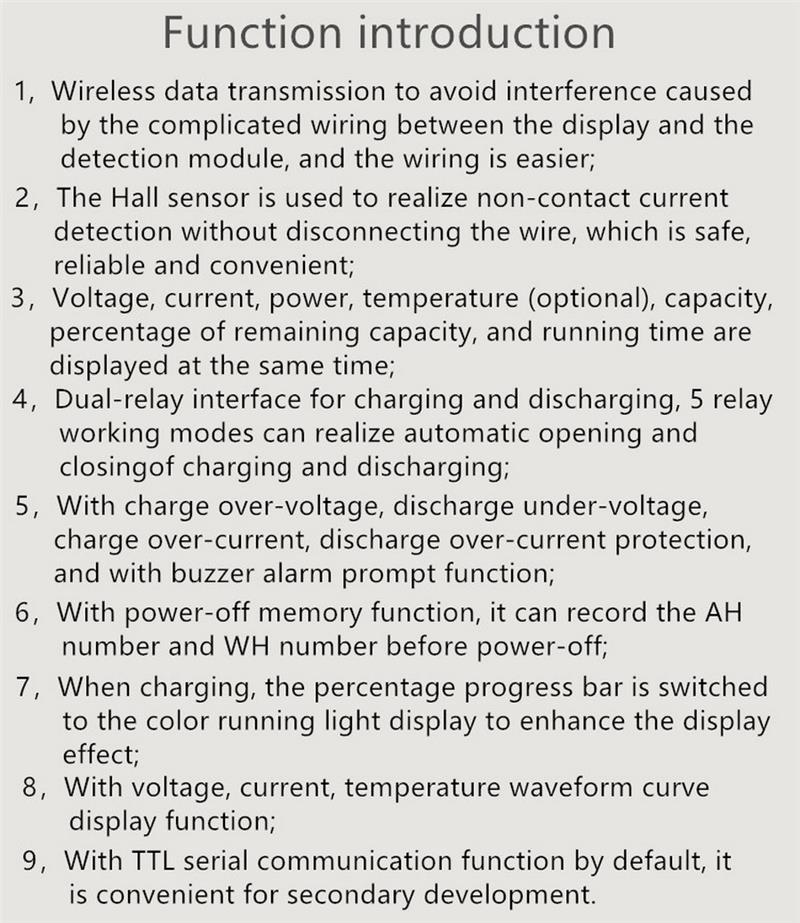

II.Main characteristics
1. wireless data transmission, to avoid the display and detection module between the complex wiring interference, while the wiring is more convenient;
2. hall sensor to achieve non-contact detection of current without disconnecting wire, safe, reliable, convenient;

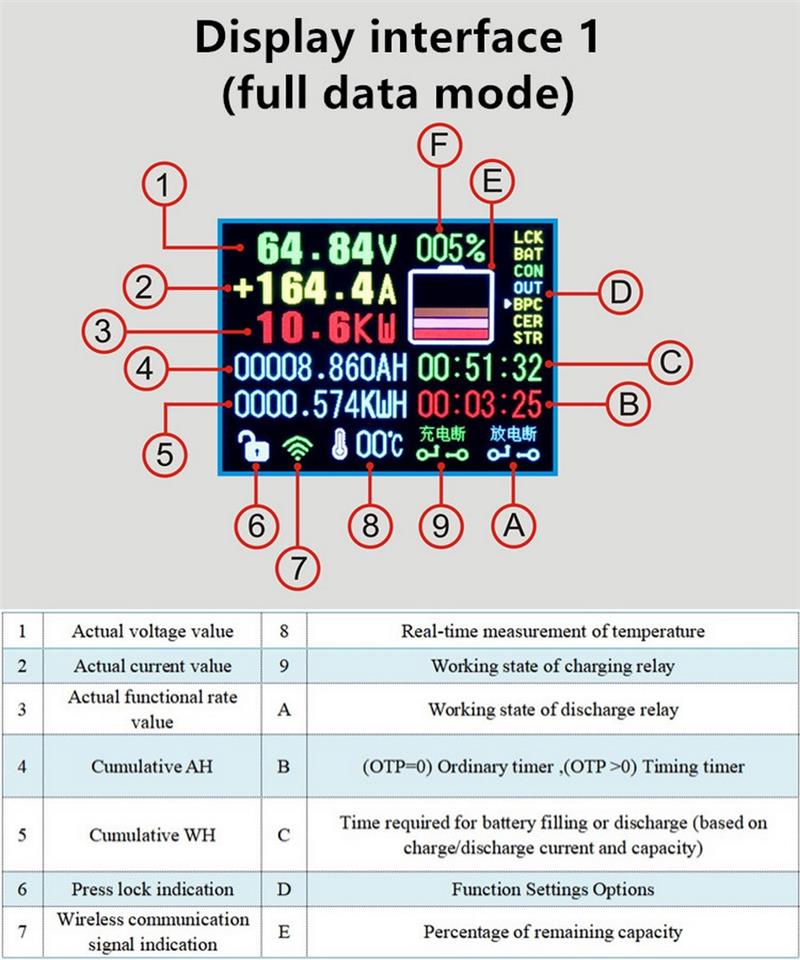

3. voltage, current, power, temperature (optional), capacity, percentage of residual capacity, running time display at the same time;

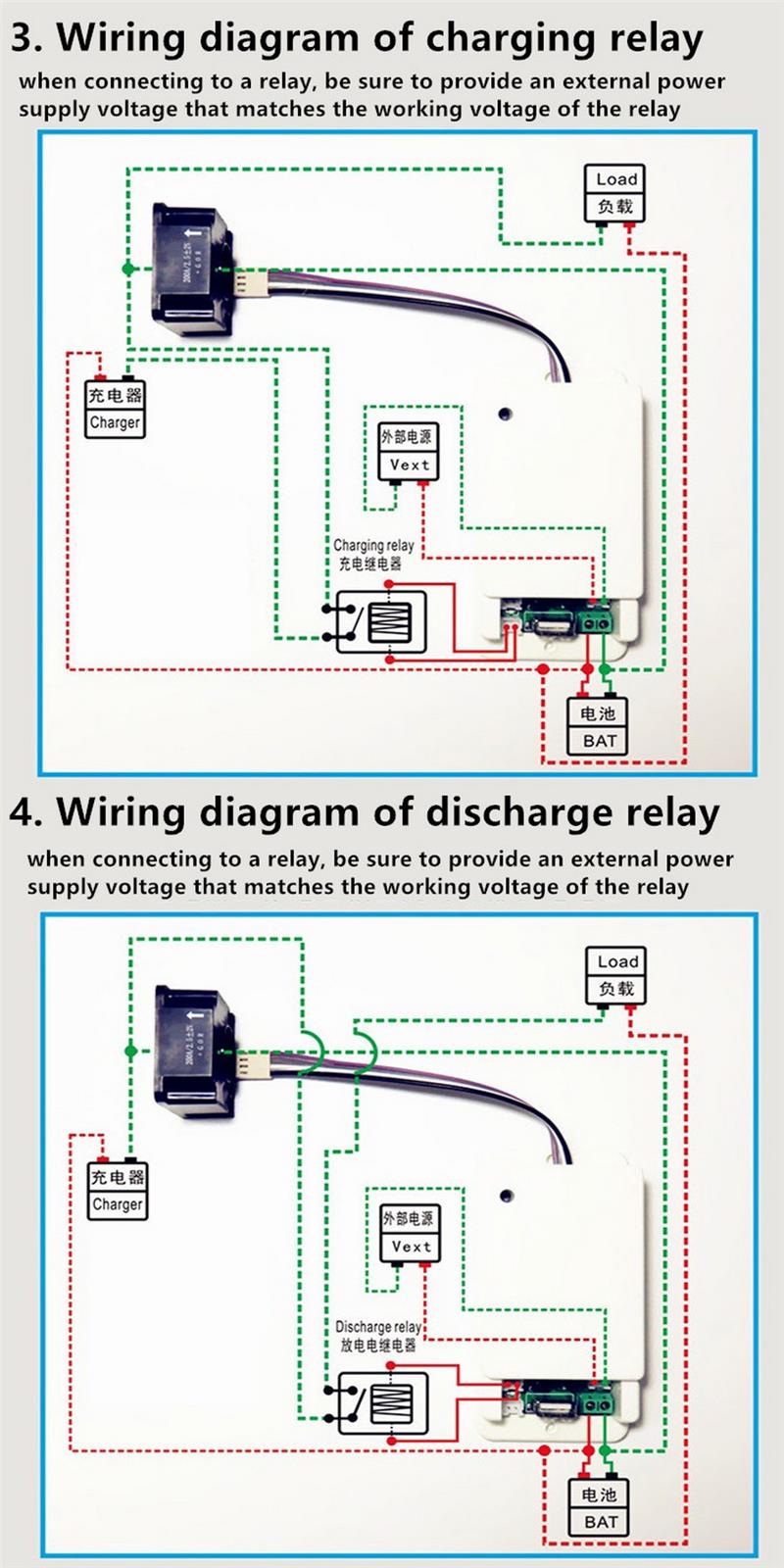

4. charging and discharging double relay interface ,5 relay working modes can realize automatic disconnection and automatic closure of charge and discharge
5. has charging overvoltage, discharge undervoltage, charging overcurrent, discharge overcurrent protection, and with buzzer alarm function;
6. with power off memory function, can record the number of AH and WH before power off;

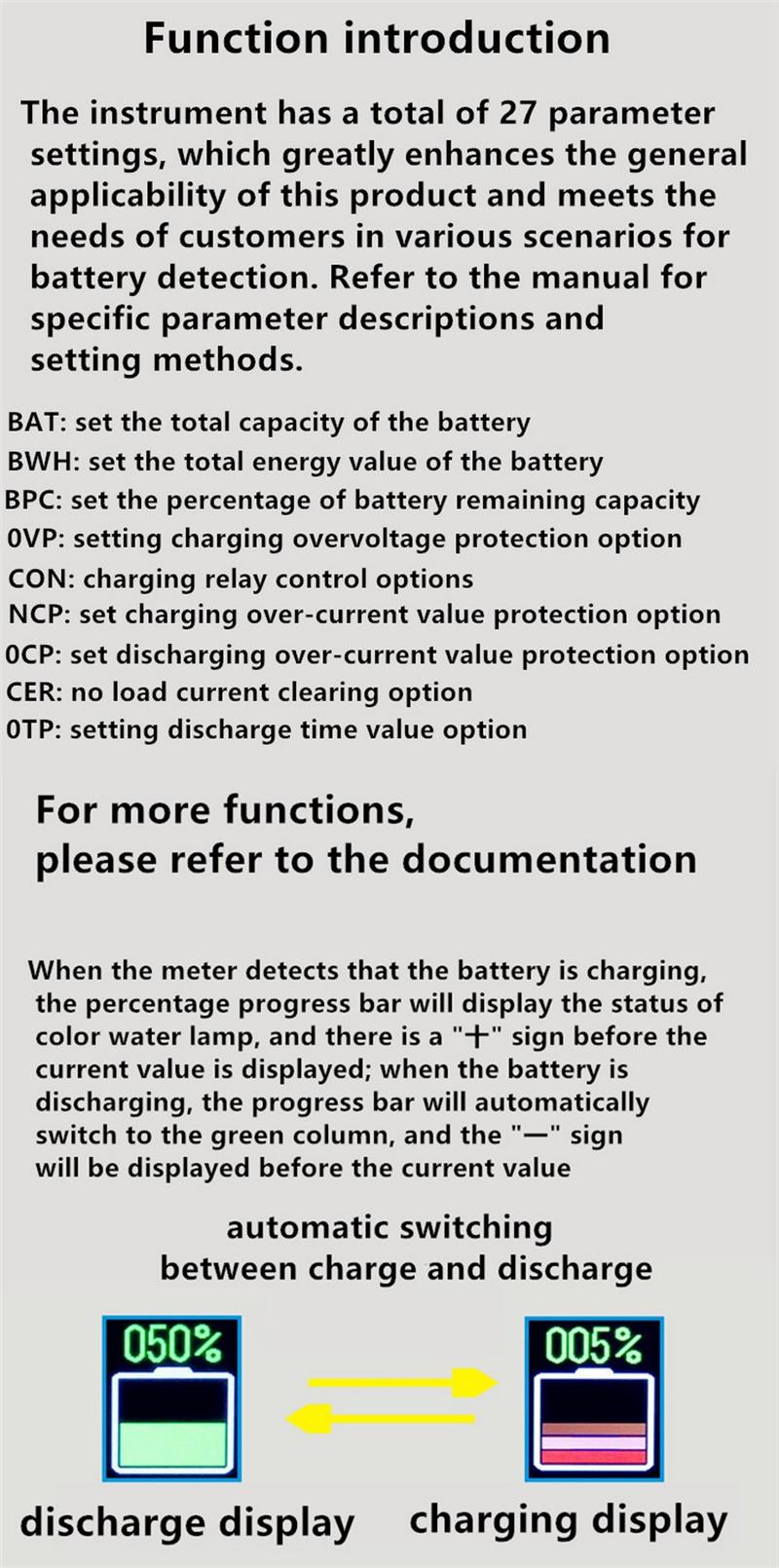

7. the percentage progress bar when charging switch to color flow light display, enhance the display effect;

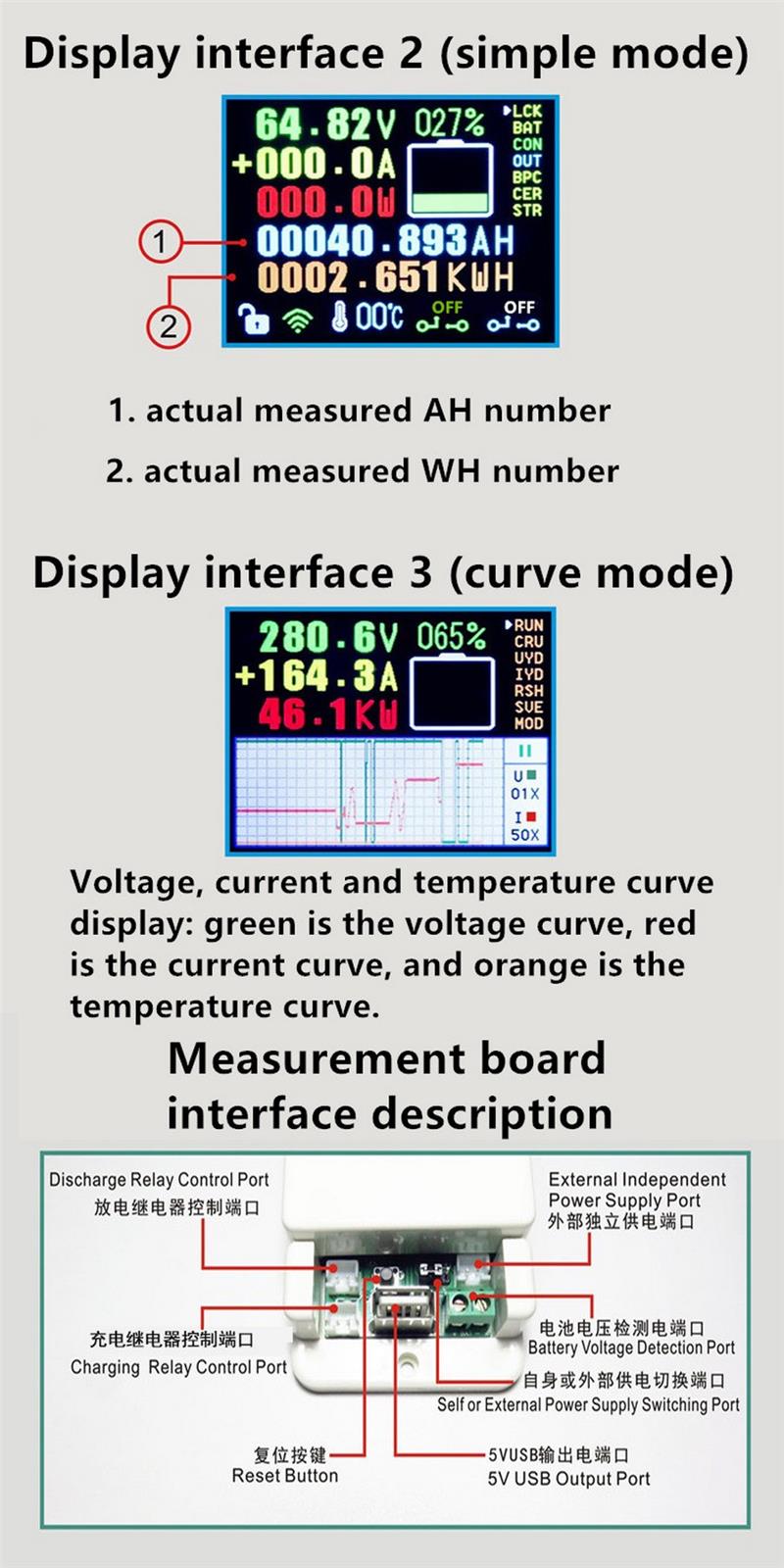

8. with voltage, current, temperature waveform display function;

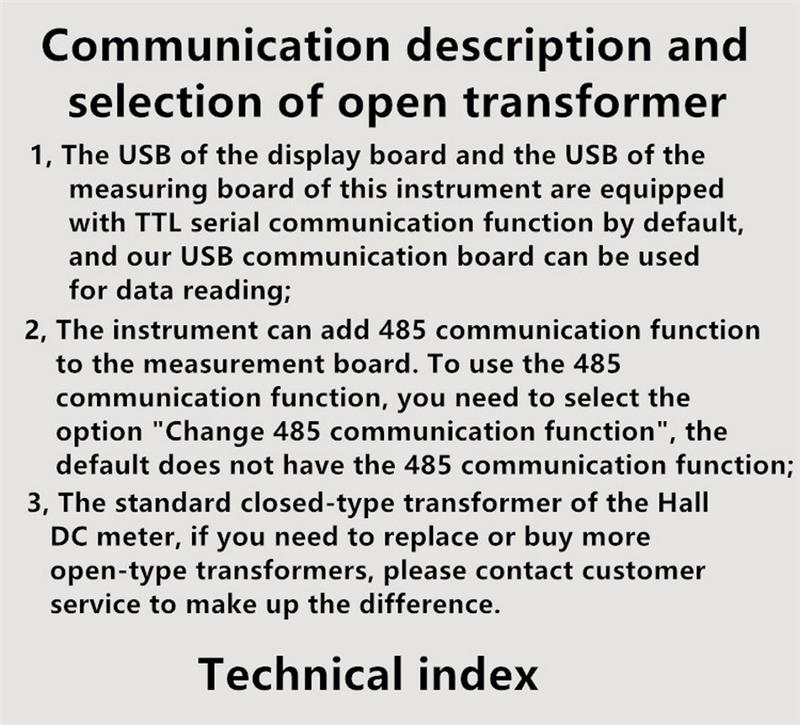

9. own TTL serial communication function, easy to secondary development;
Chinese and English language selection, two display color can be switched, three display interface adjustable, suitable for different customer needs;

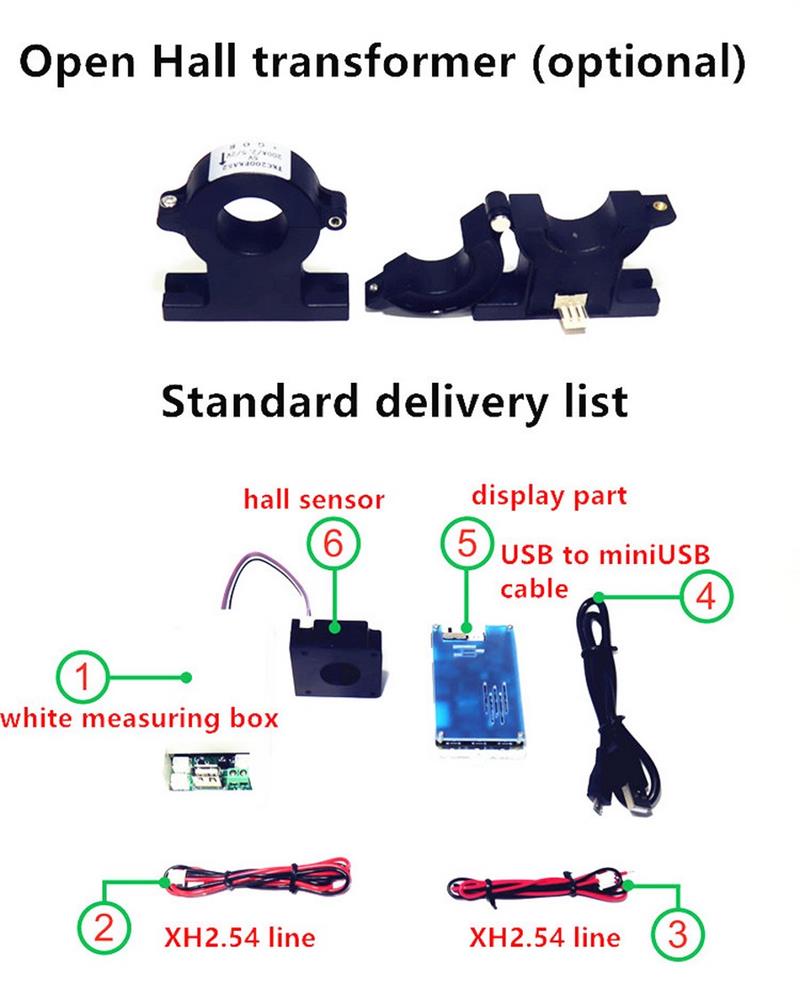

Packaging included:
1xVAC8610F Voltage Current Meter
