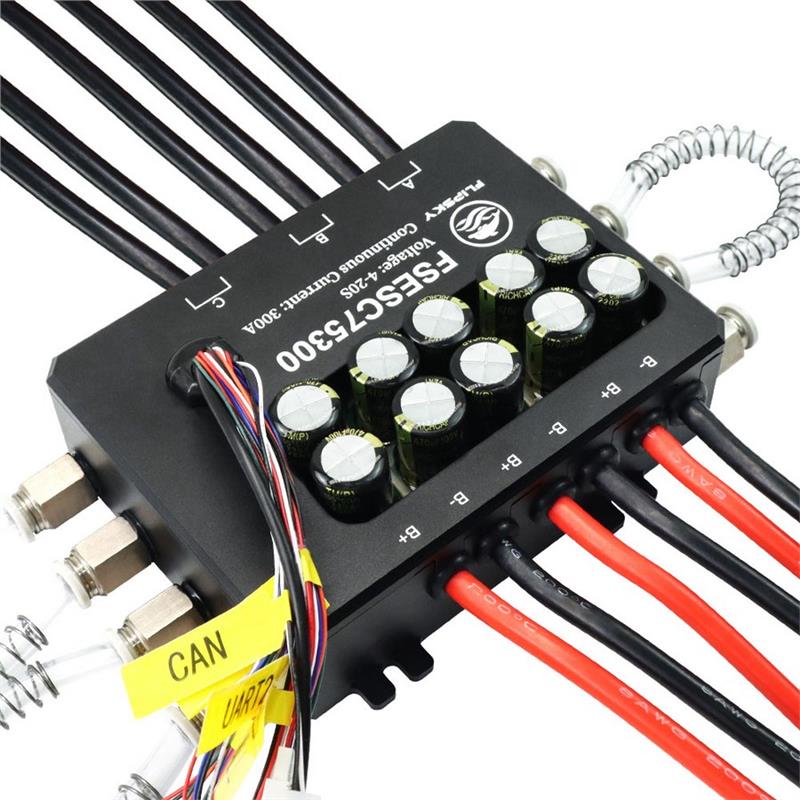

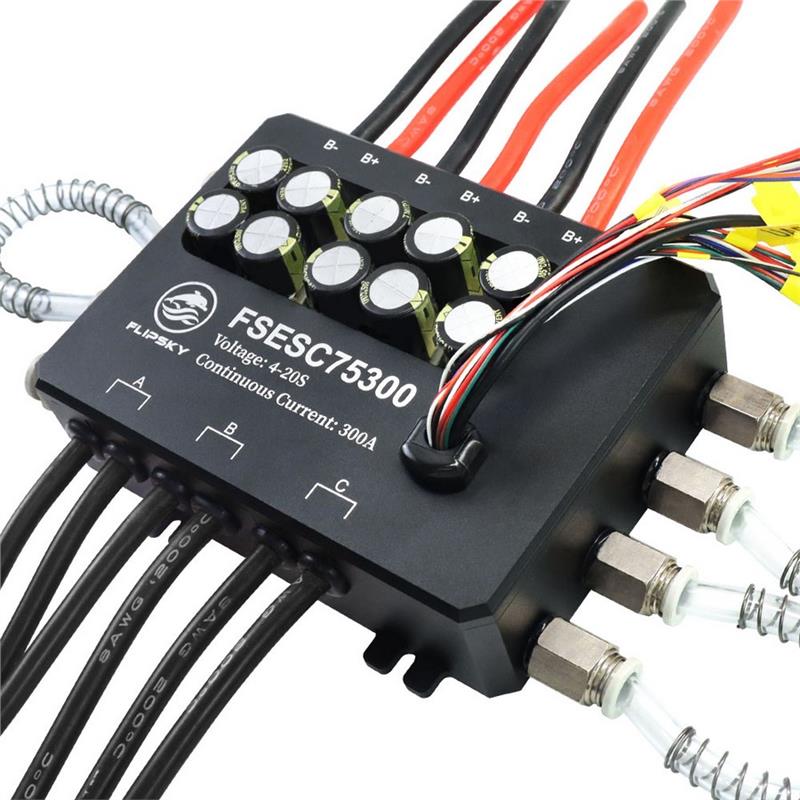

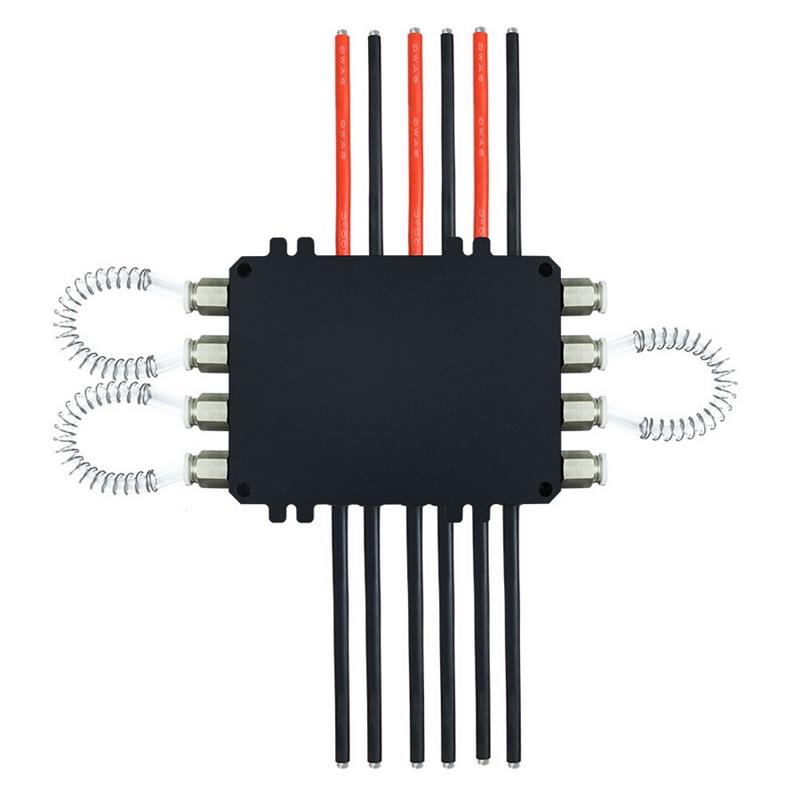

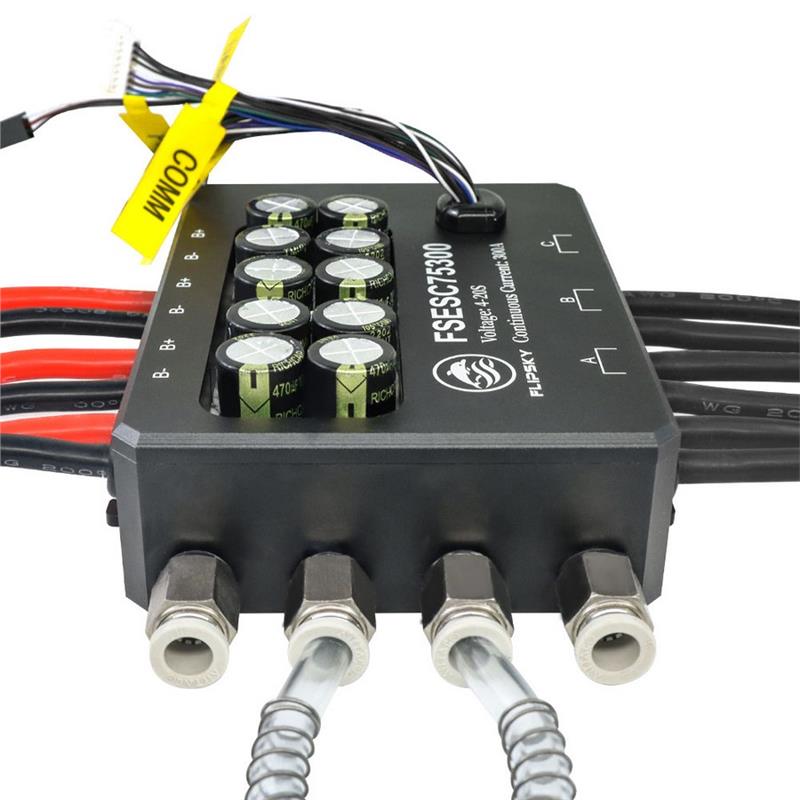

Flipsky FSESC 75300 84V High Current 350A ESC with Aluminum Case Water Cooling Enclosure for E-Foil Fighting Robot RC Car Models Parts

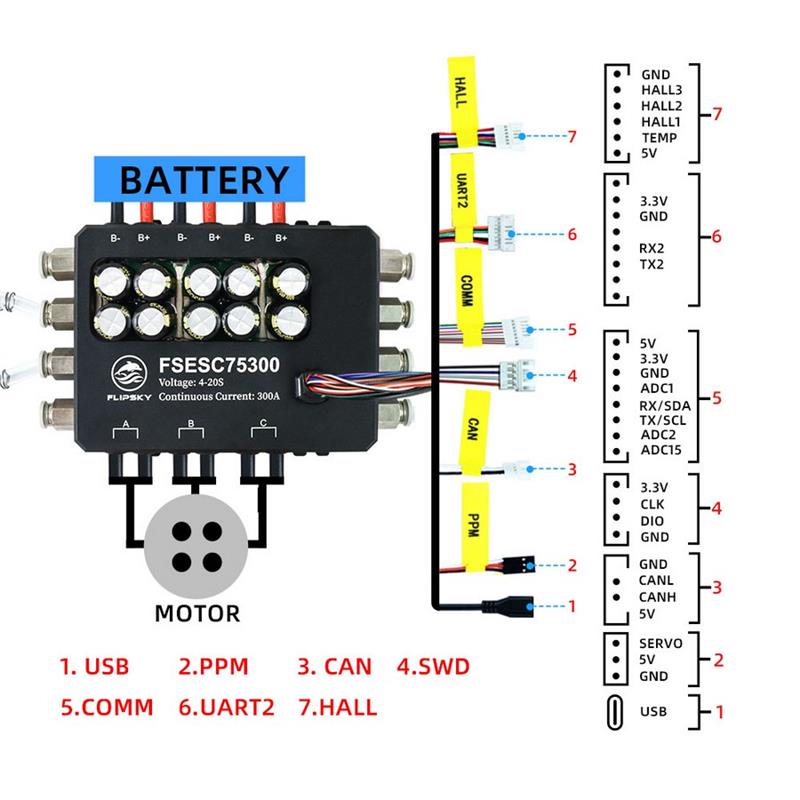

Description: Specification: Voltage:14-84V( safe for 3-20S) Continuous Current:50V/300A,75V/200A Max Current:350A Supported Sensors:ABI, HALL, AS5047,AS5048A EPRM:150000 Size:297*115*45mm((Including the height of water pipes and electrolytic capacitors) Features: Regenerative braking The CPU adopts the STM32F405 with the main frequency of 168MHz and the Cortex-M4 architecture with DSP function; Sensored or sensorless operation + crossbreed mode Configurable RPM-, current-, voltage- and power limits Input Source: PPM, ADC, NRF,UART,PAS Communication Ports: USB, CAN, UART,SPI,IIC Throttle curve and ramping for all input sources Seamless 4-quadrant operation Motor revolution, ampere hour, watt hour counting Real-time data analysis and readout through the communication port. Adjustable protection against: Low input voltage High input voltage High motor current High input current High regenerative braking current (separate limits for the motor and the input) High RPM (separate limits for each direction) Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurate Motor Wire:8AWG Power Cable:8AWG Waterproof Level:(with water cooling enclosure):IP67 Package Included: 1X FSESC 75300 ESC Wiring Diagram:Please Click Here
Additional information
Weight
1.3 kg
Style:No selection
With Water Cooling Enclosure
