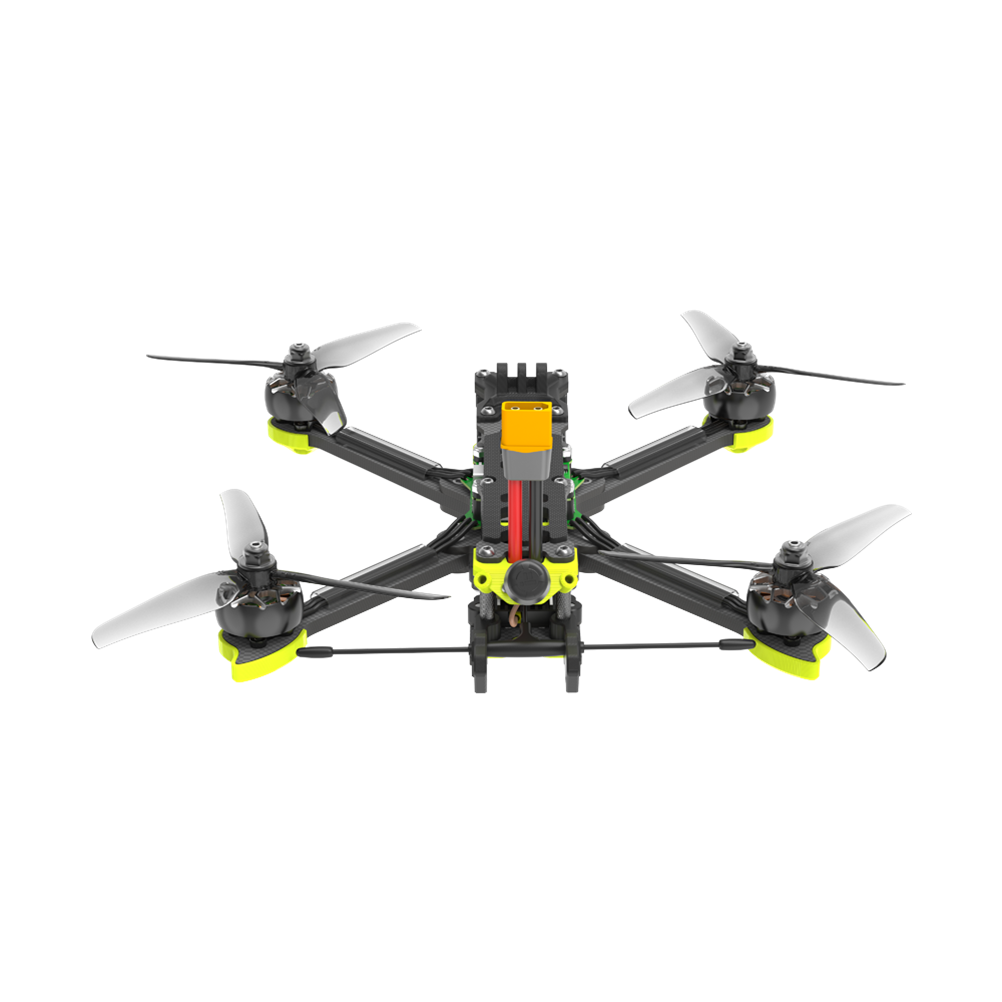

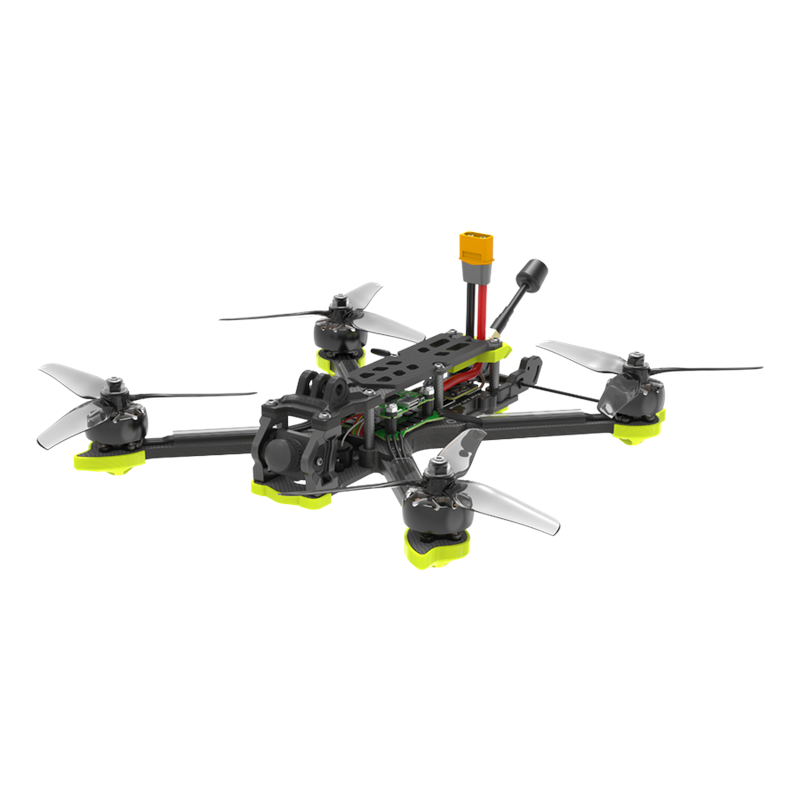

iFlight Nazgul5 V3 Analog 240mm 5 Inch 6S Freestyle FPV Racing Drone BNF/PNP RaceCam R1 Cam BLITZ F7 E45S 45A ESC 2207 1800KV Motor
Notice: have upgrade it from v2 into new v3 version. At present, v2 and v3 version are mix in CN Warehouse, will send radomly.
March 30th, 2023, BeiJing Time
v3 Diffirence:

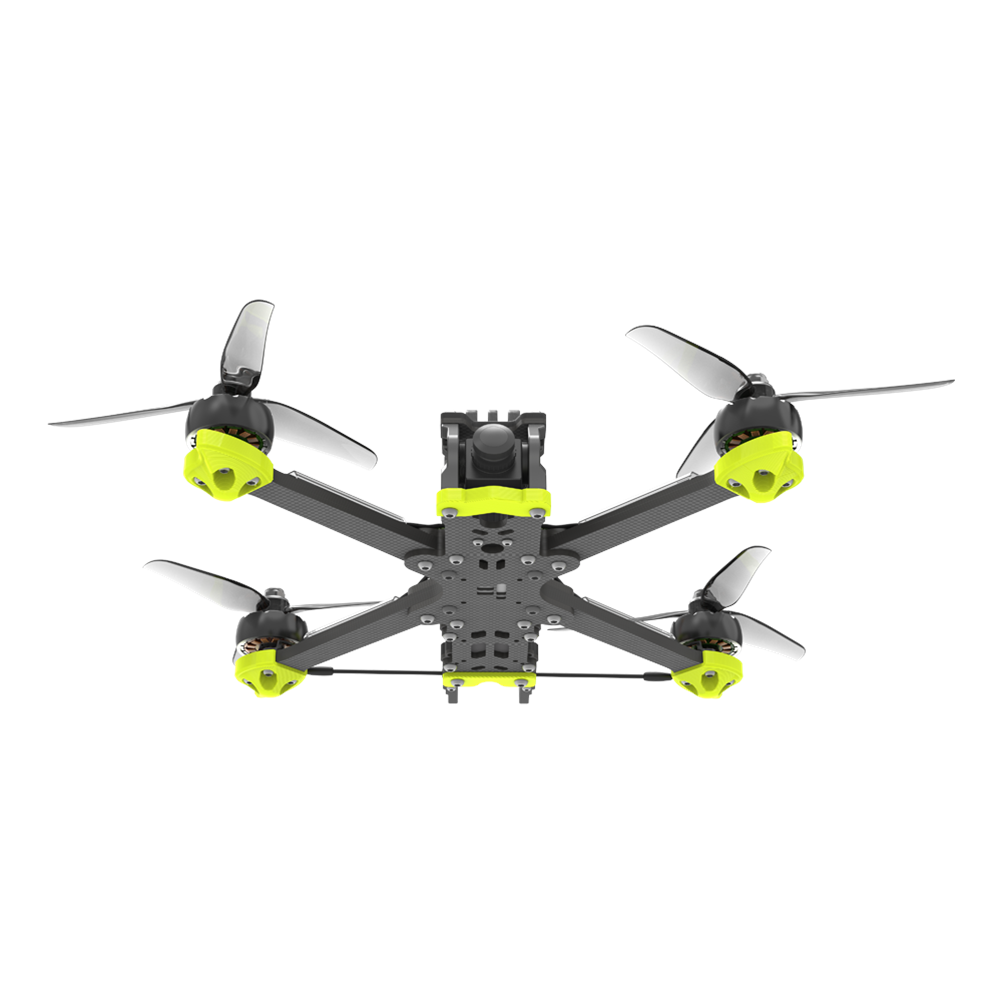

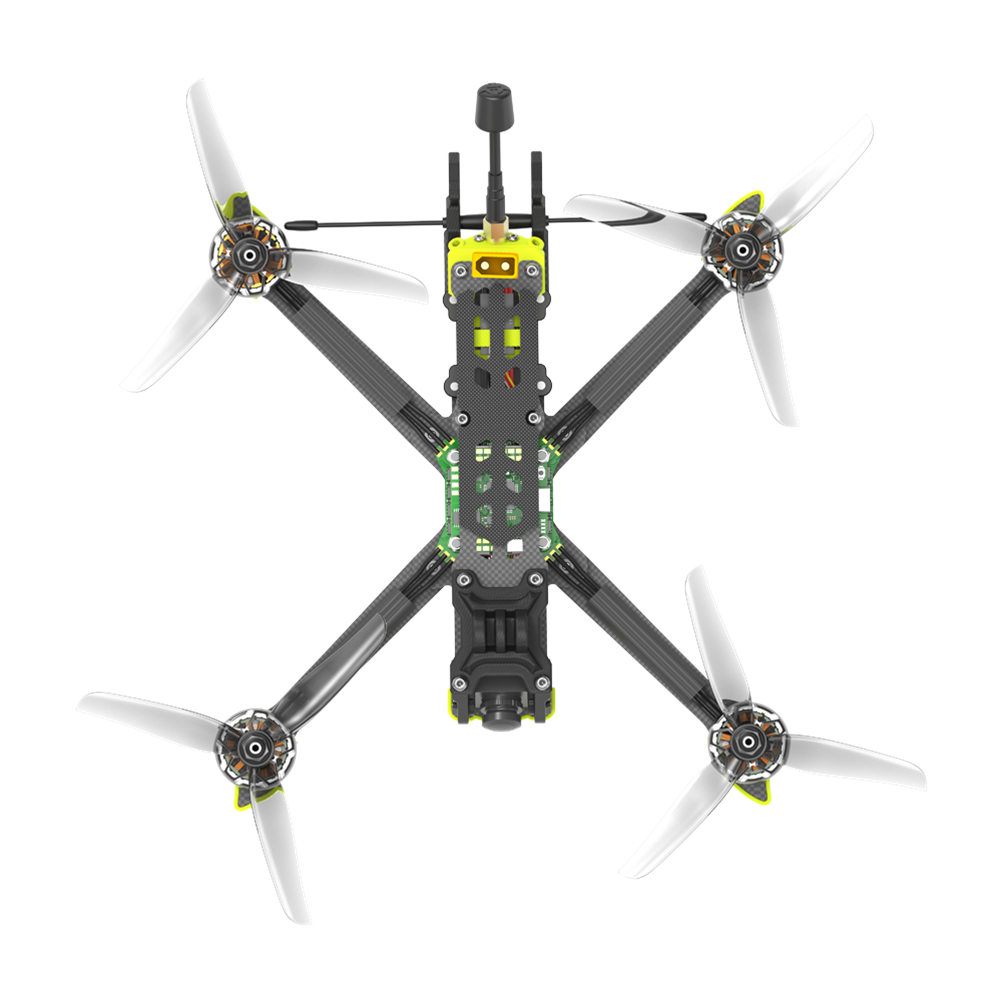

– change the frame kit into v3 version ( like photos showed)
– change the vtx into BLITZ 1.6W VTX
V2 Version | new V3 Version |
Nagul5 v2 frame Kit Wheelbase: 240mm*240mm Body size: 170*170mm |
Nagula5 v3 frame kit Wheelbase: 245mm Size: 173*173*37 mm |
SucceX Force 5.8g 800mW VTX Adjustable – Item: SucceX-Force 800mW adjustable VTX – Output voltage/ Max current: 5V 1A – 12V input current: 40mA@PIT MODE, 95mA@25mW, 185mA@200mW50mA@500mW, 380mA@800mW – Output 48 frequency points, – size:36*36*3mm – PIT/25mW/200mW/400mW/800mW |
BLITZ 1.6W VTX Input voltage: 7V6V Interface: MMCX Power levels: PIT/25mW/400mW/800mW/1600mW Channels: 40 (including Raceband) Mounting pattern: 30.5×30.5mm/??3 Lightweight: 18.9g (excluding antenna) VTX telemetry: IRC Tramp Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight! RC Tramp VTX table values: 25/400/800/1600mW |
V3 Features:
– Comes with BLITZ 1.6W VTX , high power, strong anti-interference
–
CNC integral molding aluminum alloy lens brackt, the material is light and hard, more durable
– Lightweight design, using carbon fiber material, light material, high hardness, and the fuselage is more resistant to explosion.
– The center of gravity of the fuselage is low, the flight is more stable, and freestyle more easily
– Increase the anti-sparking module to prevent sparks caused by plugging in the battery and prolong the life of the battery plug.
– Compatible with Gopro5/6/7/8/9/10/11, DJI Action. ( NOT Included.)
Specification:
BLITZ F7 Flight Controller ( Separate FC Link) |
MCU: STM32 F722 Gyro: BMI270 Barometer: DPS310 OSD Chip: AT7456E Flash: 32MB (Blackbox flash) UARTS: 6 Motor outputs: 4x (SH1.0 connector) I2C serial: SD A/ SL Apads Smartaudio / IRC Tramp VTX protocol supported LED controller: Yes Beeper pad: Yes Firmware target: IFRC-IFLIGHT_BLITZ_F722 Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter Dimensions: 36.5*35 mm Weight: 7.8g |
BLITZ E45S 4in1 ESC ( separate ESC Version to know more details ) |
Input oltage: 2-6S
|
XING-E Pro 2207 1800KV 6S Brushless Motor ( Separate Motor click here) |
KV: 1800KV Input Voltage: 3-6S Configuration: 12N14P Stator Diameter: 22mm Stator Length: 7mm Shaft Diameter: 5mm Motor Dimension: 28.5×19.7mm (Dia*Len) Weight: 33.8g Idle Current(10) @10V: less than 1.2 A Max. Con. Power (180S): 845.3W Internal Resistance: 81.5m?? Max. Current (180S): 35.22A |
Before
Caddx Ratel camera changed to
RaceCam R1 Mini Cam.
(
RaceCam R1
is the same as the
Caddx Ratel camera, but changed the brand LOGO )
Frame Spare Part , Click Here
PRODUCT DESCRIPTION
Nazgul5
V2
is a 5′ size BNF (Bind-and-Fly) quadcopter.
it is
updated XL5 V5 FPV frames
. Pre-tuned and setup
, e
verything you need is just bind-and-fly! Loads of power and smooth flights guaranteed using our popular XING-E motors with long-lasting NSK bearings. Got a hard hit and snapped an arm Don’t worry, get some spares with your order and easy-swap out in field. Wanna strap your for GoPro on that beast as well Checkout our collection of high quality TPU prints for your cam!
Tips:
VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you’re flying legal frequencies and use our prepared Betaflight VTX tables according to your region.
Specification:
S 1800KV )
Feature:
– 5mm arm design for more durability
– Easy-Swap arms
–
LED illuminated Logo
– XING-E 2207 motors and NAZGUL 5140 props
– 5′ version also fits 5.1′ style propellers
– Popular True-X configuration
– TPU crash-guards
– Fits both 30.5x and 20x stacks
Package Included:
RaceCam R1
, 2.1mm lens 19x19mm camera
Microfiber PU Leather Battery Strap (Color May Vary)
Additional Suggested Parts (Not Included)
FACTORY SETUP and WIRING DIAGRAM:
This BNF comes pre-built and setup with all necessary parameters to bind-and-fly. We also added a basic filter and PID tuning as well as some more software tweaks enhance the flight experience.
Reflashed your drone but didn’t backup the setup Messed up the whole tune and want our factory tune back
No need to worry! All Factory Dumps and Wiring Diagrams
can be found on our Google Drive: LINK
