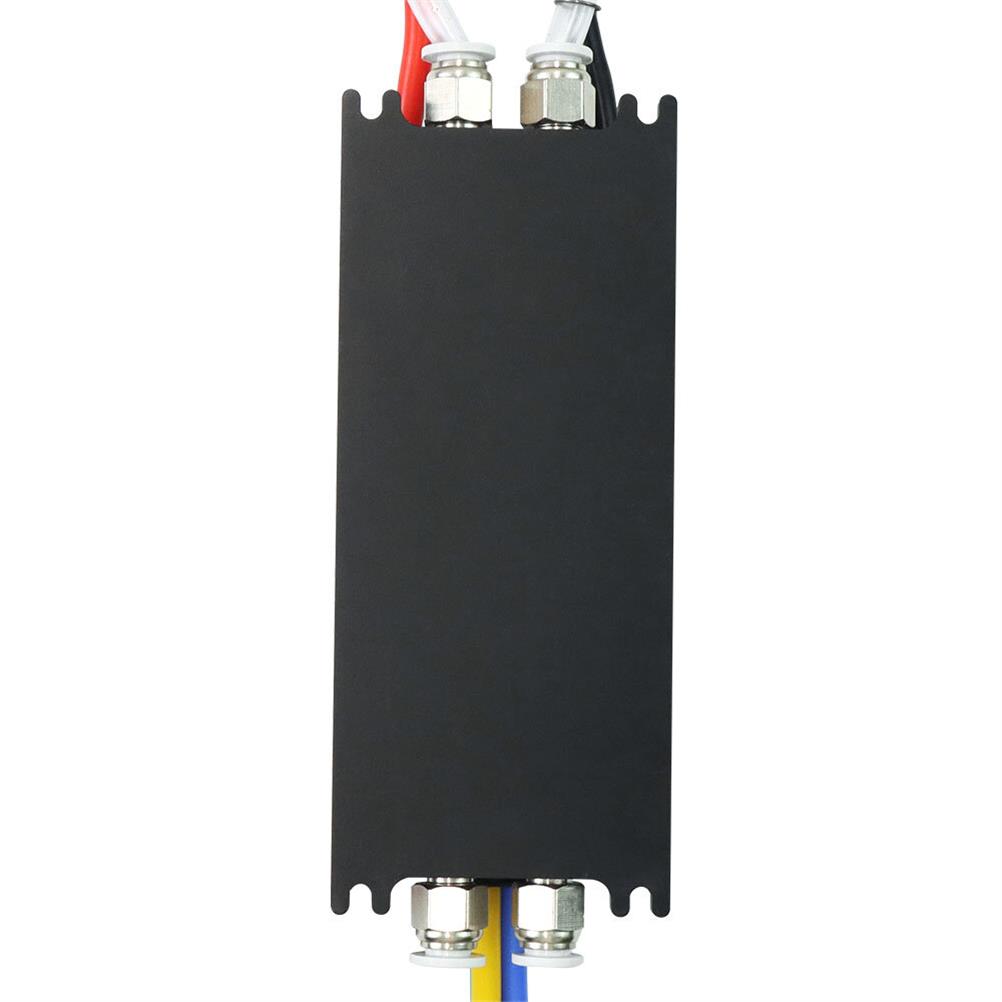

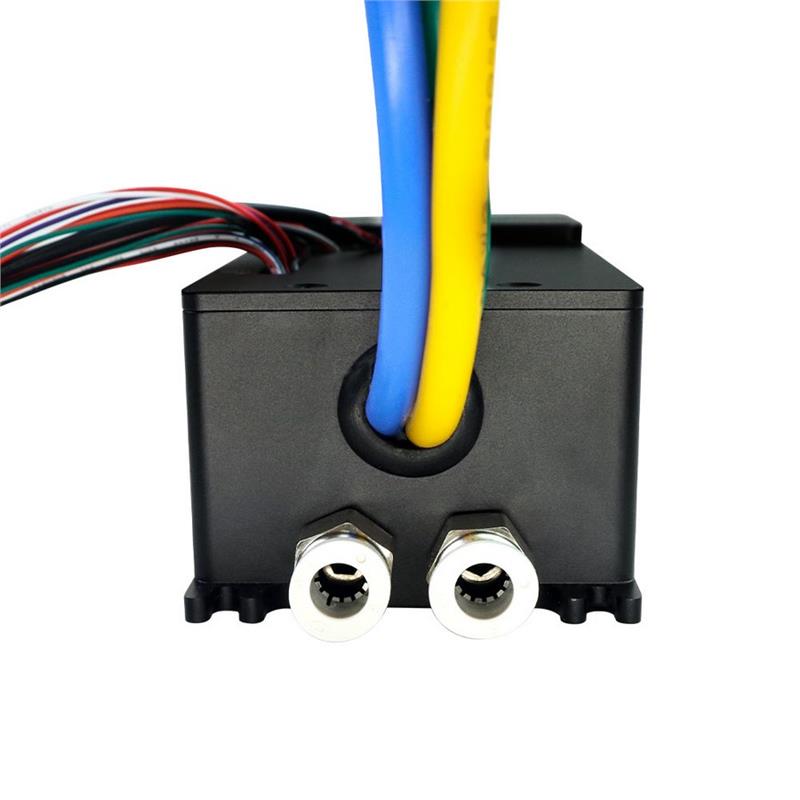

Flipsky Upgraded 75200 200A 84V ESC High Current with Aluminum PCB Water Cooling Enclosure for Fighting Robot Surfboard AGV Robot RC Cars Models Parts
Description:
Item Brand:Flipsky
Item Name:75200 ESC
Mateial:Metal,aluminum
Color:Black

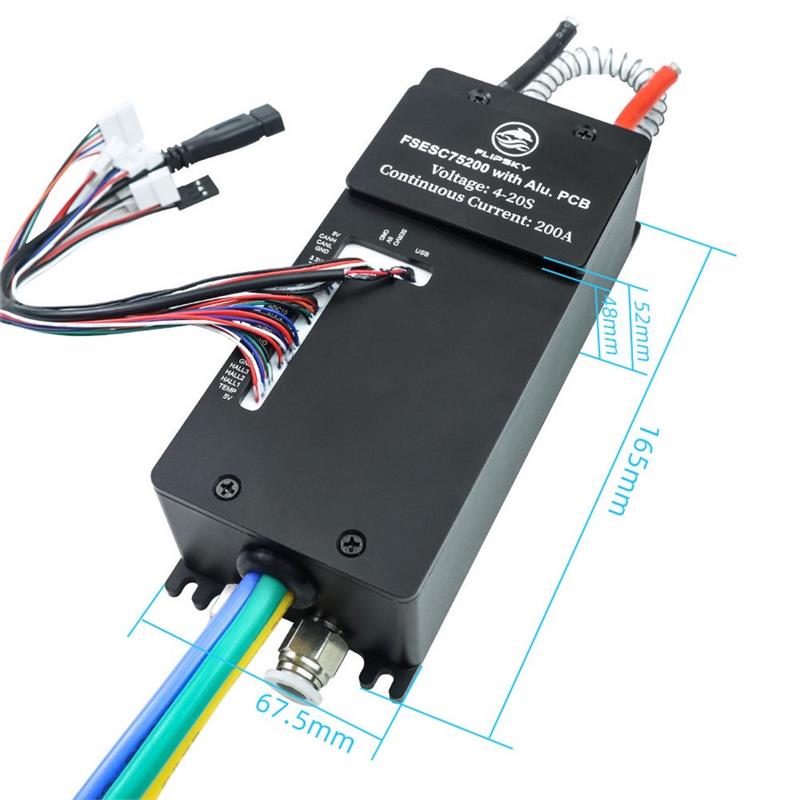

Product Size:165*67.5*48mm
Product Weight:About 500g
Compatible Model:Fighting Robot Surfboard AGV Robot RC Cars Models
Specification:
Firmware:5.2, supports firmware upgrade
Voltage:14-84V (safe for 4-20S)
Continuous Current:50V/200A; 75V/150A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst:300A
BEC:5V@1A
Support Modes:DC, BLDC, FOC (sinusoidal)
ERPM:150000
Communication Ports:USB, CAN, UART, SPI, IIC
Supported Sensors:ABI, HALL, AS5047, AS5048A
Input Source Support:PPM, ADC, NRF, UART
Supported Sensorless:Yes
Regenerative capacity:Yes
Programmable via TOOL:Yes
Motor/Power Wire Size:8 AWG
Features:
1.Adjustable protection against: low voltage protection, high voltage protection, over current protection, temperature abnormal protection, mosfets / motor over temperature protection.
2.Support various control modes: Current / Duty cycle / Speed / PID control modes.
3.Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.
4.CPU:STM32F405 with frequency 168MHz
5.Aluminum PCB with good heat dissipation to expand life span.
6.Two COMM ports: UART bluetooth module, screen display or remote controller supportable.
Warm tips:
Phase filering is not available for Flipsky ESC75100 and 75200!
Please turn off the phase filter function and choose ‘false’ in tool when use firmware version on or above 5.3 (TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.

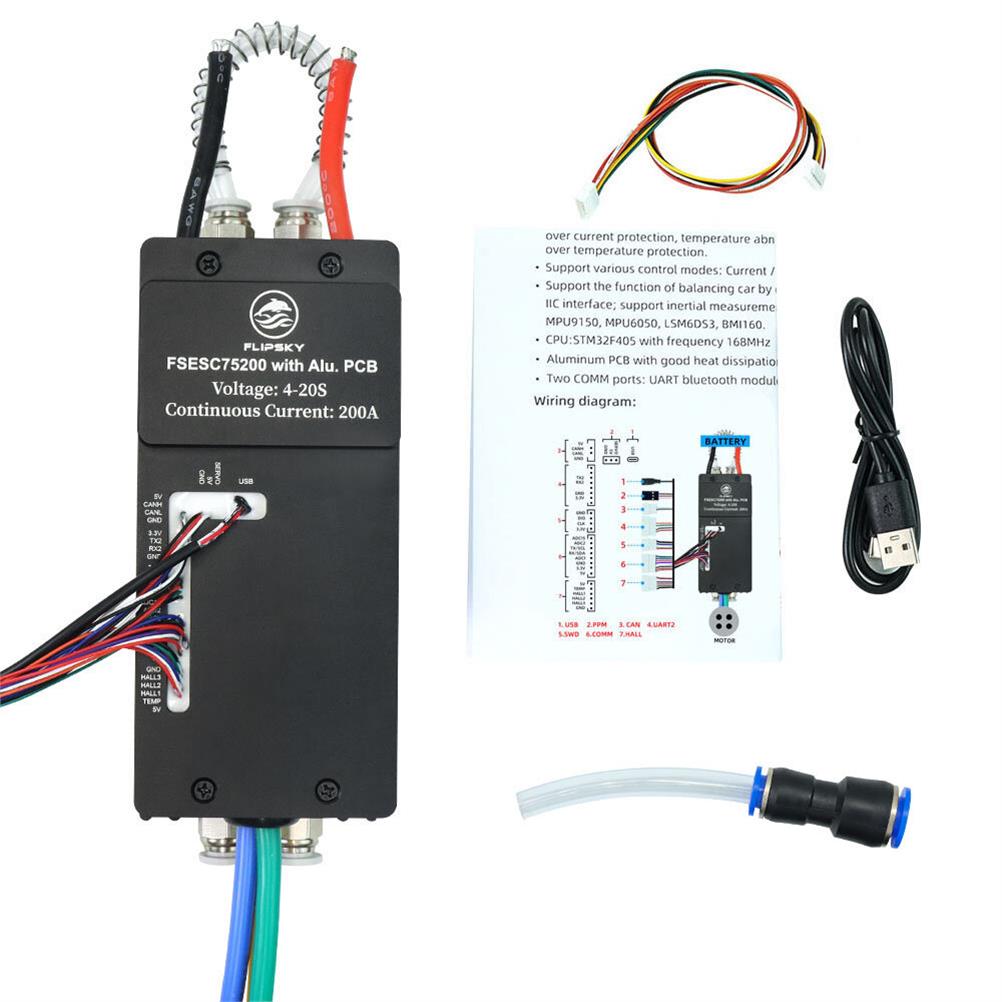

Pakckage Included:
1X 75200 Upgraded ESC
