Radiolink RC8X 2.4GHz 8CH 4.3-Inch Full Colour Touch Screen LCD Radio Transmitter International Version With R8GF/R4FGM Receiver for RC Car Boat Robot
Radiolink RC8X 2.4GHz 8CH 4.3-Inch Full Colour Touch Screen LCD Radio Transmitter International Version With R8GF Receiver for RC Car Boat Robot
Channels: 8 channels
Screen: 4.3 inches, 800*480 dot matrix, full-color, capacitive LCD touch screen

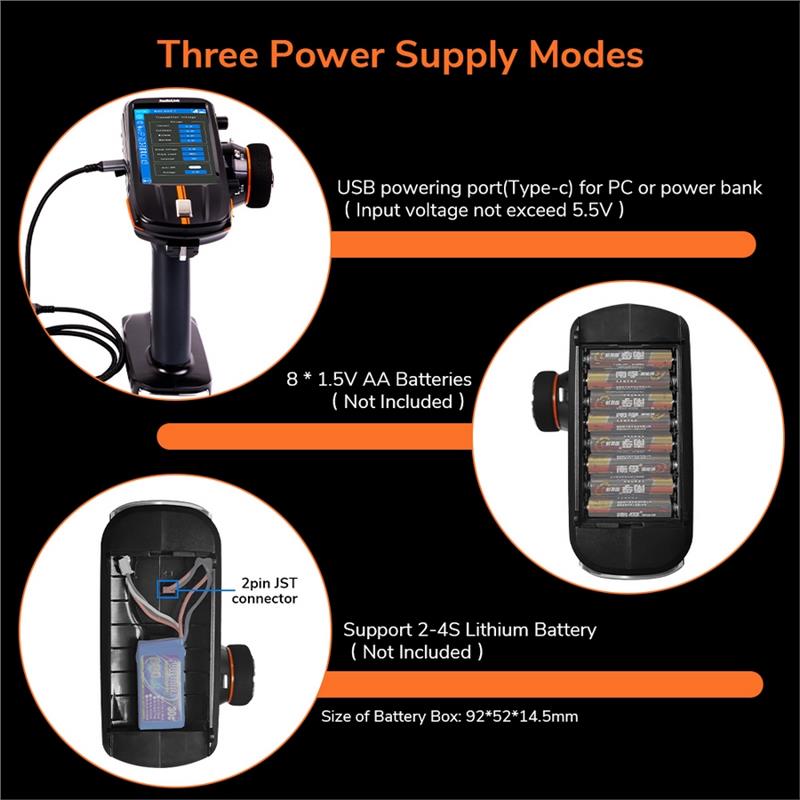

Working Voltage:7~15V DC (8 pieces of AAAbatteries or A2S-4S LiPo battery or A6S Ni-MH battery)
Working Current: 290mA??10mA@8.4V(the LCD screen light on); 200mA??10mA@8.4V(the LCD screen light off)
Model Storage: 200 models memory
Control Range: 600 meters on ground
Program Mix: 9 groups program mixes
ID Seed: 16 groups
Voice Broadcast: Support, and all the operating can set alarm with voice broadcast, buzzer, or vibration
Menu Customized: Setting Menu, font, desktop, system theme, etc
Low Voltage Alarm: Low transmitter voltage, low receiver voltage, low model battery voltage or low RSSI alarm can be customized
CRSF Protocol : Support TBS Crosfire
FPV Head Track Function: Support
Headphone: Support, 3.5 mm Jack
Extended Memory: Up to 64GB
Language: Chinese, English and other
Upgrade: USB online upgrade
Transmission Power: <20dBm
Channel Resolution: 4096 with regular jitter of 0.5us
Spread Spectrum Mode: FHSS, 67 channels pseudo random frequency hopping
Modulation Mode: GFSK
Frequencies Band: 2.4GHz ISM band (2400MHz~2483.5MHz)

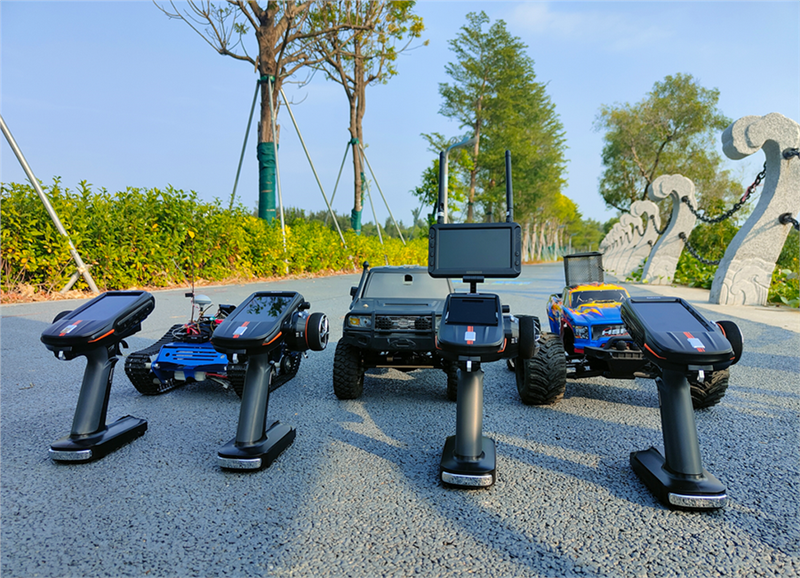

Applicable Model: RC Car(Including Crawlers/Tanks/Caterpillars)/Boat/Robot
Compatible Receiver: R8FG(Std), R7FG, R6FG, R6F, R8EF, R8FM, R8F, R4FGM, R4F
* Innovative Software Technology: RC8X is for the first time runs Alightweight RTOS system on the ARM A-series chip originally running Linux. High-end configuration with ARM9 processor, 720MHz main frequency, 32M RAM and support multiple audio and video interface.
* Full Color LCD Touch Screen: 4.3 Inches 800*480 dot matrix capacitive touching screen with ultra-narrow frame and fast scroll without lag. Scary faster screen responsiveness in switching function pages, provide you mobile phone-level screen refresh experience. Besides, the screen can be used for parameter setup and FPV display at the same time when an external 5.8G receiver module is connected, easily realize dual use on one screen.

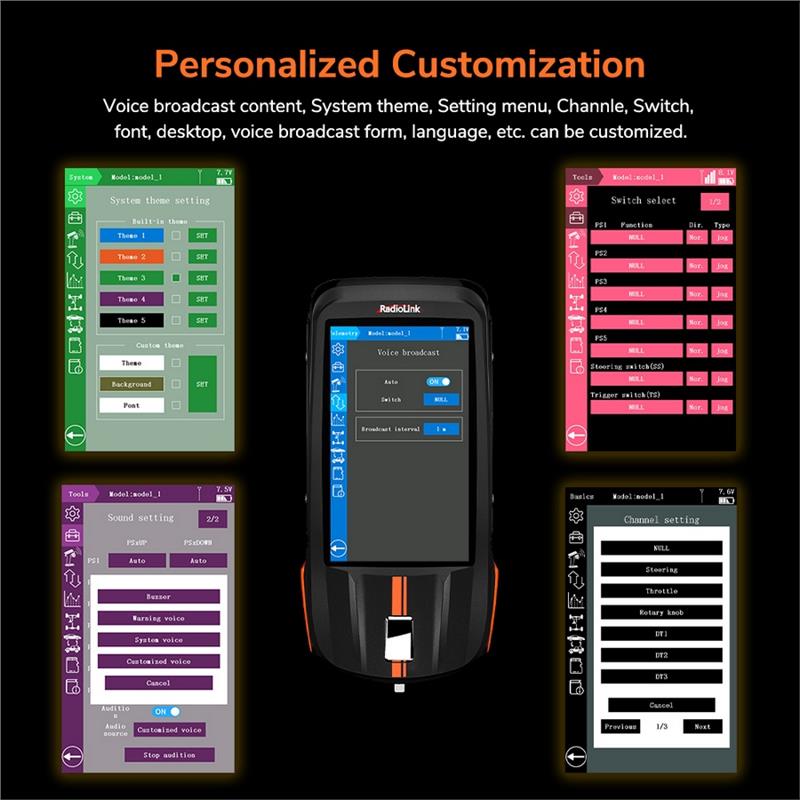

* Personalized Custom Functions: Support custom voice broadcast content, voice broadcast form, setting menu, font, the color of background and font, desktop, system theme, function button, etc; you can achieve Atotally unique 8 channels transmitter without one code to modify.
* 8 Channels for Multiple Types of Models: With steering curve, throttle curve, brake curve, etc, RC8X is an ideal partner for all types RC cars and boats in the market,including single-engine and twin-engine models such as Crawlers, Tanks, Trucks, Caterpillars, Basher, Drifting,Bait Boat, etc. Pseudo random algorithm FHSS communication technology makes the control distance up to 600 meters on the ground.
* Multiple Programmable Mix Control: Support 9 groups mix control including 4WS, 4WD, tank mixing, tilt mixing, CPS mixing etc. It has 8 groups programmable mix control and any 2 channels can be easily set. You could realize every precise driving operation under different complex terrains.
* 200 Models Storage & 16 ID Seed: RC8X is capable of an arbitrary ID designation among Amaximum of 16 binding receivers and can storage Amaximum of 200 groups models parameters saved. Amodel memory with different setups can be created by using the model copy function.

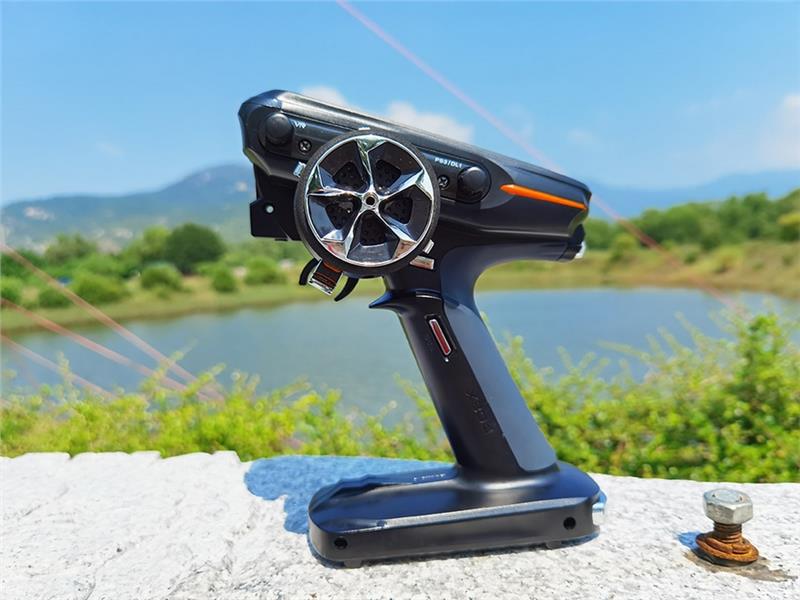

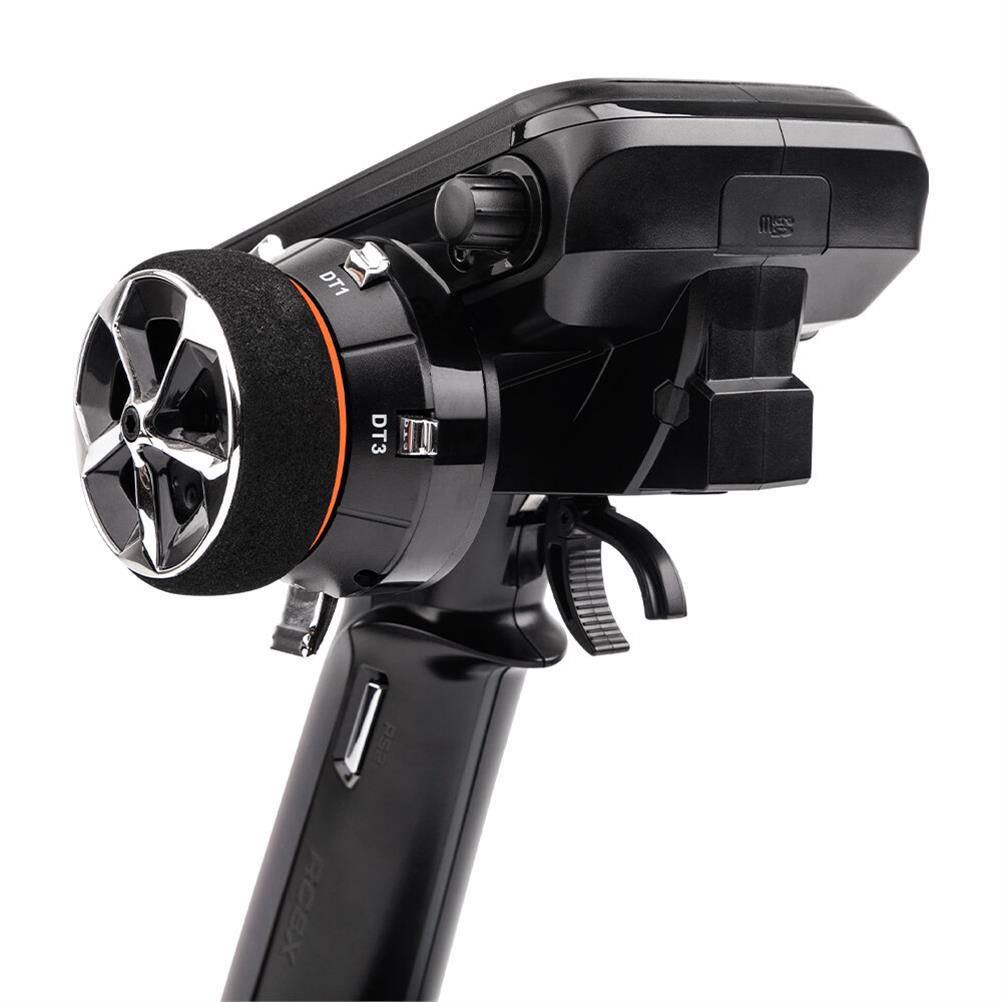

* Ergonomically Designed for Hours of Fun: The steering wheel support left and right installation to meet different usage habits. Rational throttle trigger length and tension, make easy and accurate for throttle adjustment.User-friendly design for each operation and handling.
On the basis of latest RC6GS V3 7 Channels radio, RC8X has the following new upgrades:
* 8 Channels
* 4.3 Inches Full Color LCD Touching Screen
* Support voice customization on all functions
* Rich Audio and Video Interfaces
* One Screen Dual Use
* 200 Groups Models Storage
* 8 Groups Programmable Mix Control
16 Groups ID seed
* Compatible all previous receivers R7FG, R6FG, R6F, R8EF, R8FM, R8F, R4FGM, R4F

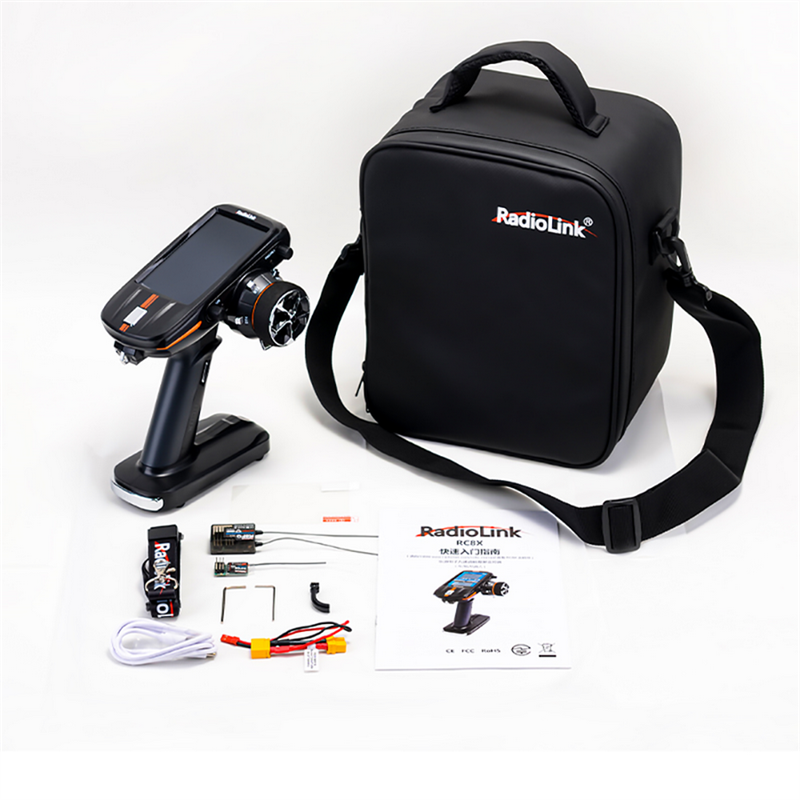

1x RC8X Radio Transmitter
1x R8FG Receiver
1x R4FGM Receiver
1x 32GB TF ??MicroSD) Card
1x EXT Connect Cable (for R8FGM)
1x Type-C Cable (for Upgrade)
1x Trottle Trigger (spare)
1x Hex Wrench (1.5&2.5mm)
1x Instruction Manual
1x Carrying Bag
