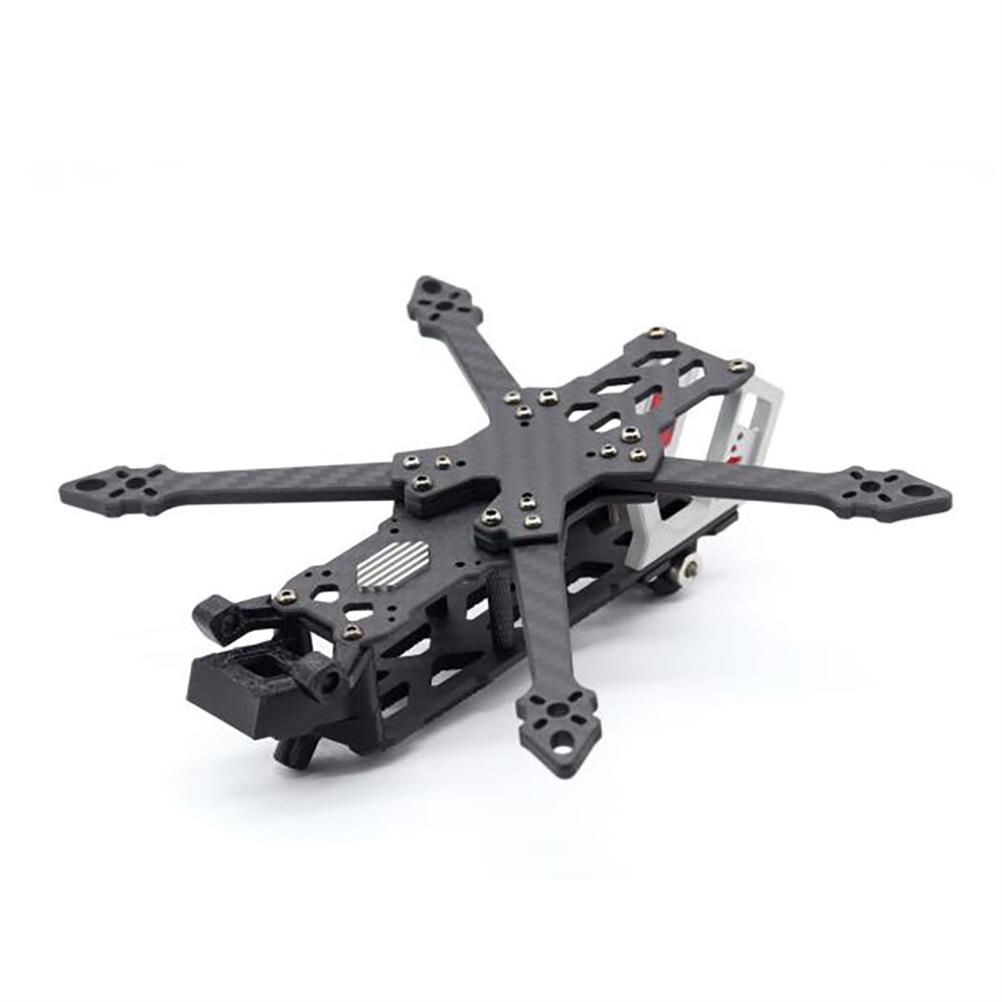

LHCXRC CLOUD 160 160mm Wheelbase 4mm Arm Thickness 3.5 Inch DIY Frame Kit Support DJI O3 Air Unit for RC Drone FPV Racing

SKU: RC1987406

Original price was: $47.40.Current price is: $35.64.

-25%
(1 review)

Shipping fast worldwide

  • Dispatch:Usually will be shipped in 24 hours
  • Shipping Time:Expedited Express 6-8 business days
  • Secure Payment:Paypal,VISA,MasterCard
Guaranteed Safe Checkout

trust pay

LHCXRC CLOUD 160 160mm Wheelbase 4mm Arm Thickness 3.5 Inch DIY Frame Kit Support DJI O3 Air Unit for RC Drone FPV Racing

Specification:
Model: CLOUD 160
Wheelbase: 160mm
Top plate thickness: 2mm
Base plate thickness: 2mm
Arm thickness: 4mm
Flight controller installation hole position: 20mm X 20mm /25.5mm x 25.5mm
Flight control installation height: 25mm
Video transmission installation hole position: 20mm X 20mm / 25.5mm x25.5mm
Motor mounting hole distance: 16mm X 16mm / 19mm X19mm
Camera installation size: 20mm X 20mm
Suitable blade size: 3.5 inch propeller blade
Size: 195mm X 158mm X 37mm
Weight: 81g (including 3D printing parts)
Features:
– Small size, light weight, good flying feel
– 9mm x9mm and 12mm x 12mm motor holes can be installed
– with camera mounting base, perfect for installing GoPro Hero 8 Naked Camera and INSTA 360 GO 2 cameras
– Specially designed with CNC aluminum alloy heat sink for DJI O3 Air Unit
– The 7075 aluminum alloy CNC side plate can be perfectly adapted to the new high-definition digital image transmission lens of DJI O3 air unit
Recommended configuration (not included)
Brushless Motor: 1804 / 2004
Flight Controller: F411 AIO /F722 AIO
Lipo Battery: 4S 1300mAh
Propeller: 3520
The following Parts are Compatible: ( NOT Included)
FC AIO ESC: 25.5×25.5mm GHF411AIO BMI F4 OSD FCwith 5V 10V BEC AIO 40 ABL_S 4In1 ESC
Brushless Motor: Geprc SPEEDX2 1804 3450KV 2-4S Brushless Motor
Propeller: Gemfan Hurricane 3520 3-Blade 3.5 Inch Propeller
Lipo Battery: ZOP Power 14.8V 1300mAh 100C 4S Lipo Battery XT60 Plug
Package List:
1 x upper plate 2.0mm
1 x Front Bottom 2.0mm
1 x Rear base plate 2.0mm
2 x Front Arm 4.0mm
2 x rear arm 4.0mm
4 x Textured aluminum column M2.5×25
12 x round head M2.5×5 screws
4x round head M2.5×8 screws
4x round head M2.5×12 screws
4 x Round Head M2x9 Screws
4 x round head M2x18 screws
4 x M1.6×8 screws (for dji O3 air unit mounting screws)
8 x rivet nuts M2 (already pressed)
2 x CNC Front Aluminum Parts
1 x CNC image transmission heat sink aluminum part
1 x camera vibration reduction 3D print left
1 x camera vibration reduction 3D print right
1 x Video Transmission Antenna Installation 3D Printing
1 x GPS mount 3D print
1 x Receiver T-antenna mount 3D print
1 x 3D print camera mounting base
1 x battery rolling strip
1 x Anti-slip mat for battery
4x Arm EVA Foot Pads
1 x Installation Instructions




Additional information

Weight 0.145 kg
