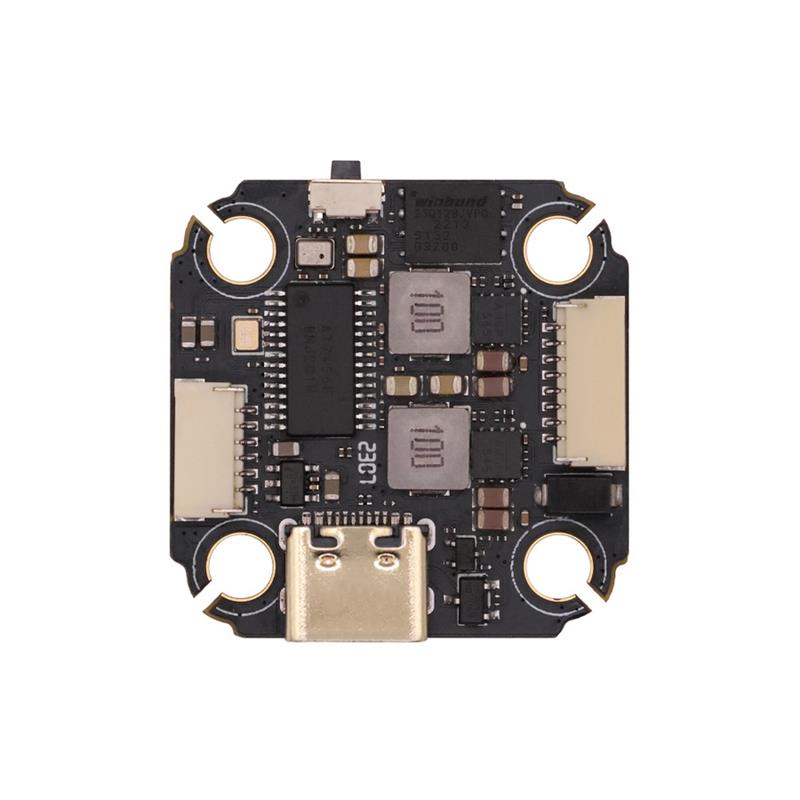

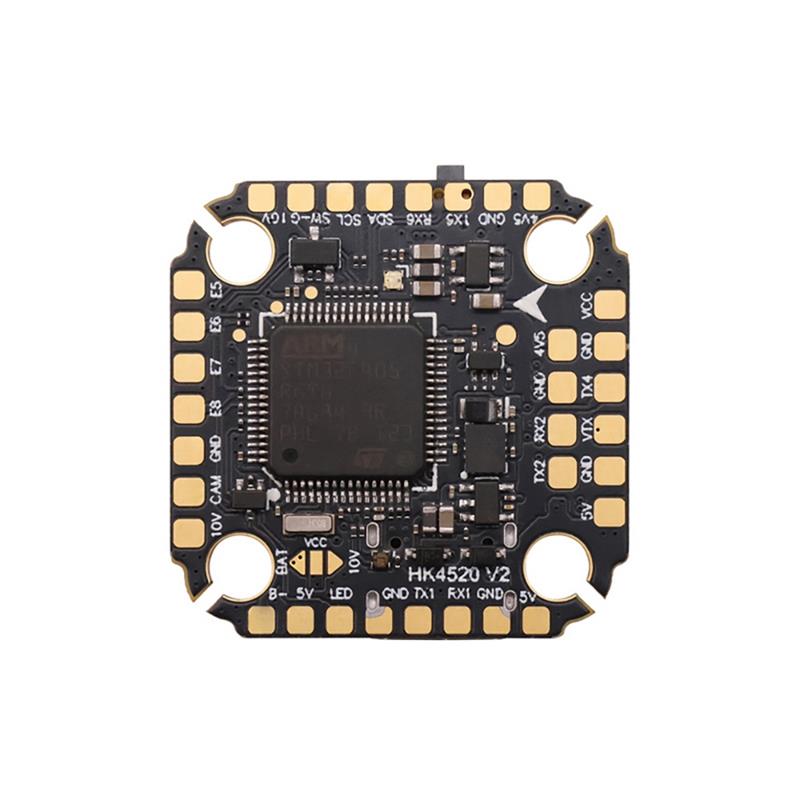

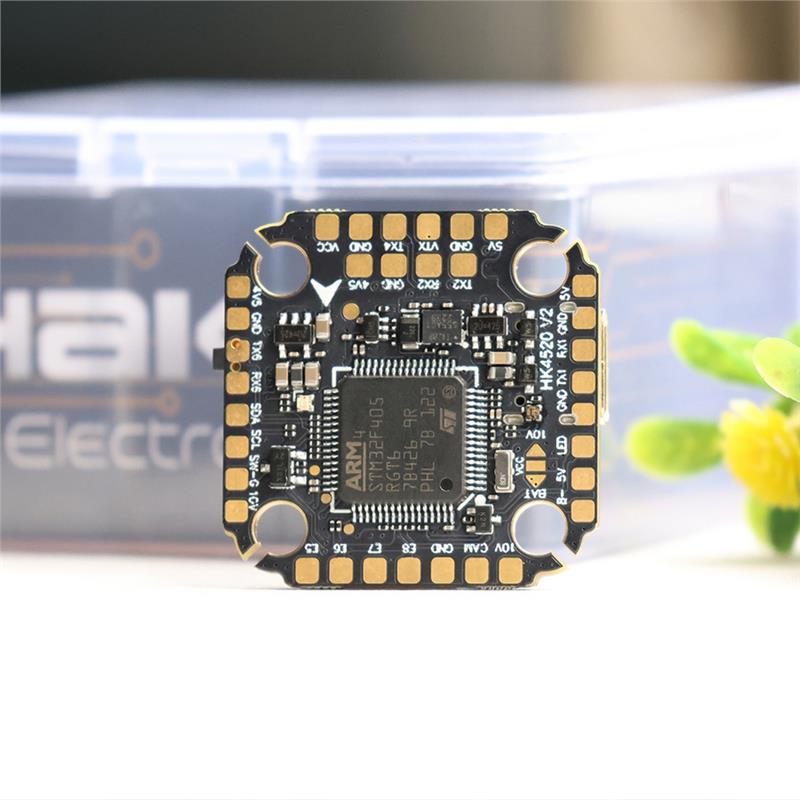

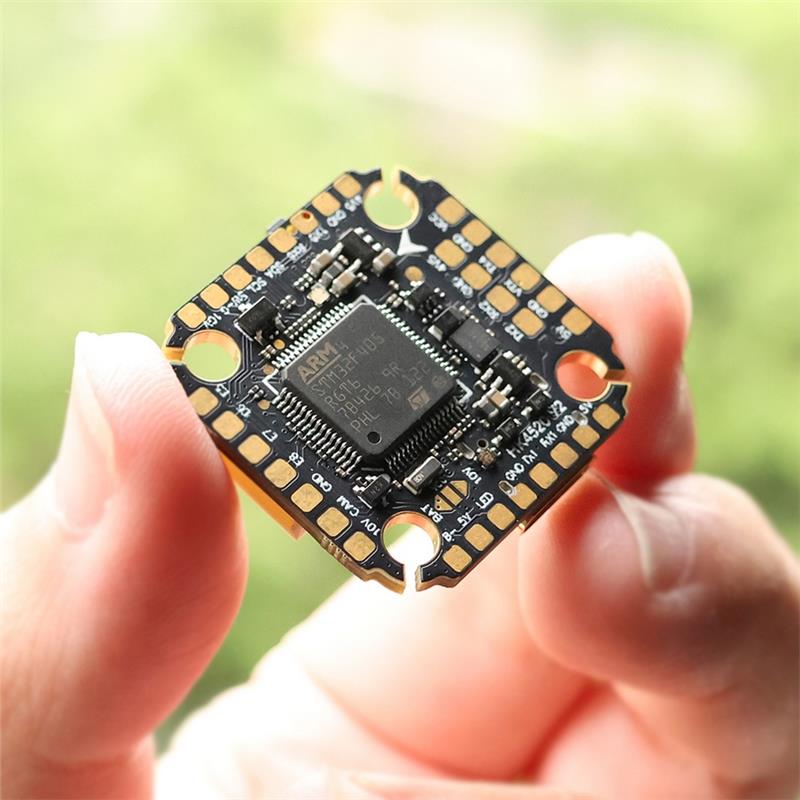

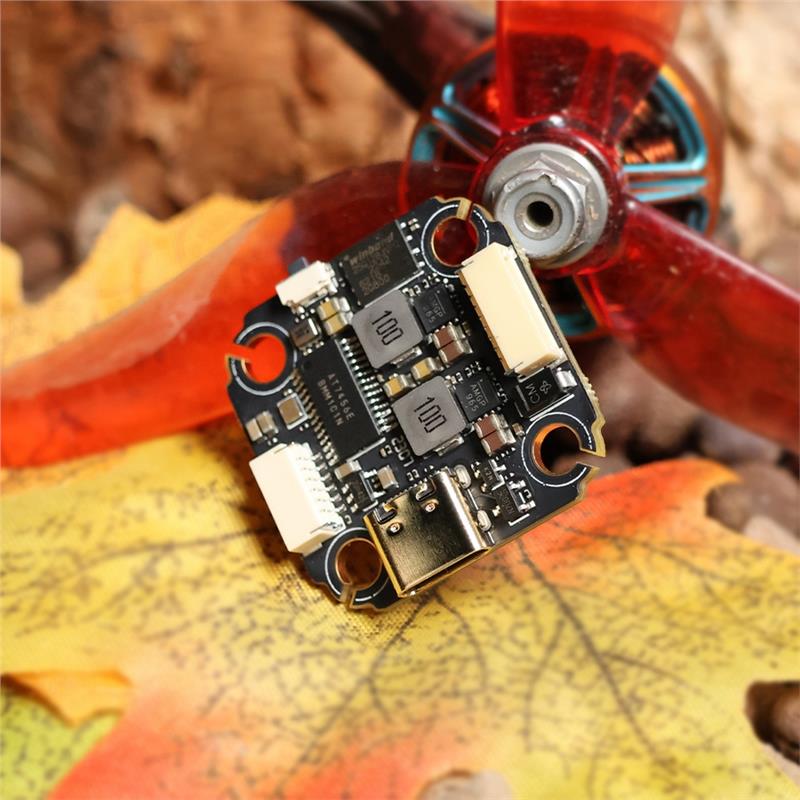

20x20mm HAKRC F4520V2 Mini F4 Flight Controller with 5V 10V BEC Output Built-in Current Sensor for RC Drone FPV Racing

Specifications:
Brand: HAKRC
Model: F4520V2 Mini
CPU: STM32F405RET6
Inertial Measurement Unit (IMU): ICM42688
On-Screen Display (OSD): AT7456E
Barometer: Integrated
Black Box: 16M
BEC: 5V/2.5A, 10V/2A
LED Support: Yes (External Adjustable)
Sensors: Built-in Current Sensor
Firmware Version: HAKRCF405V2
Compatible Futaba/ Flysky/ TBS CRSF/ DSMX/DSM2/ Frsky Receiver

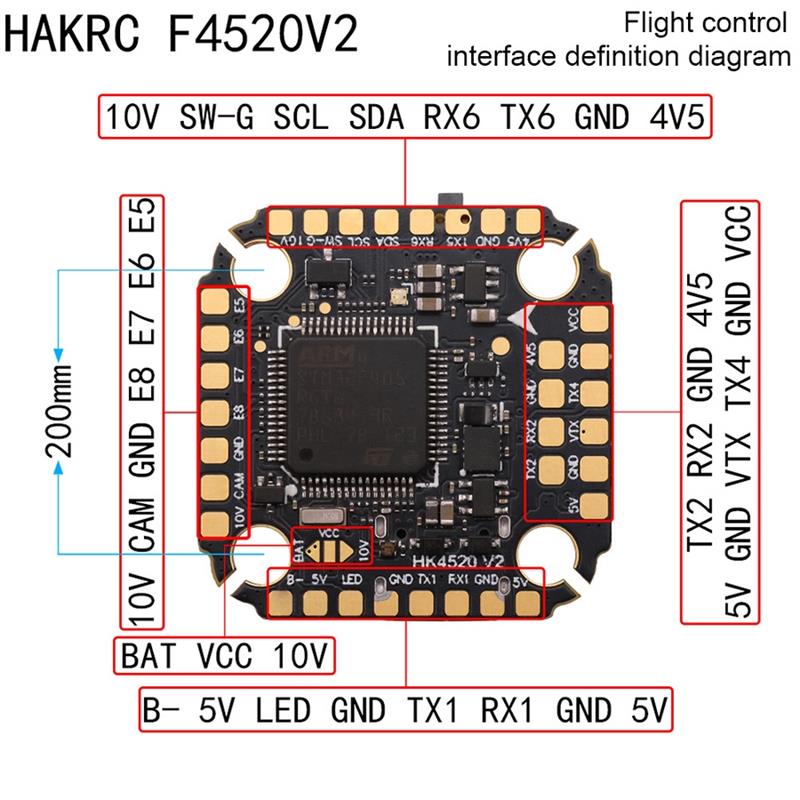

Uart Ports: 5
Dimensions: 30* 30mm (with 20mm-20mm mounting holes)
Packaging Dimensions: 64*64*35mm
Product Net Weight: 6g
Package Weight: 37g
Features:
High-End PCB: The product uses a high-end 6-layer 1oz copper-clad PCB, ensuring superior interference resistance. This means your drone’s performance won’t be negatively affected by external electronic interference.
Industrial-Grade LDO: The industrial-grade Low-Dropout (LDO) regulator ensures heat resistance. This makes the controller safe to use even in high-temperature conditions, enhancing its durability.

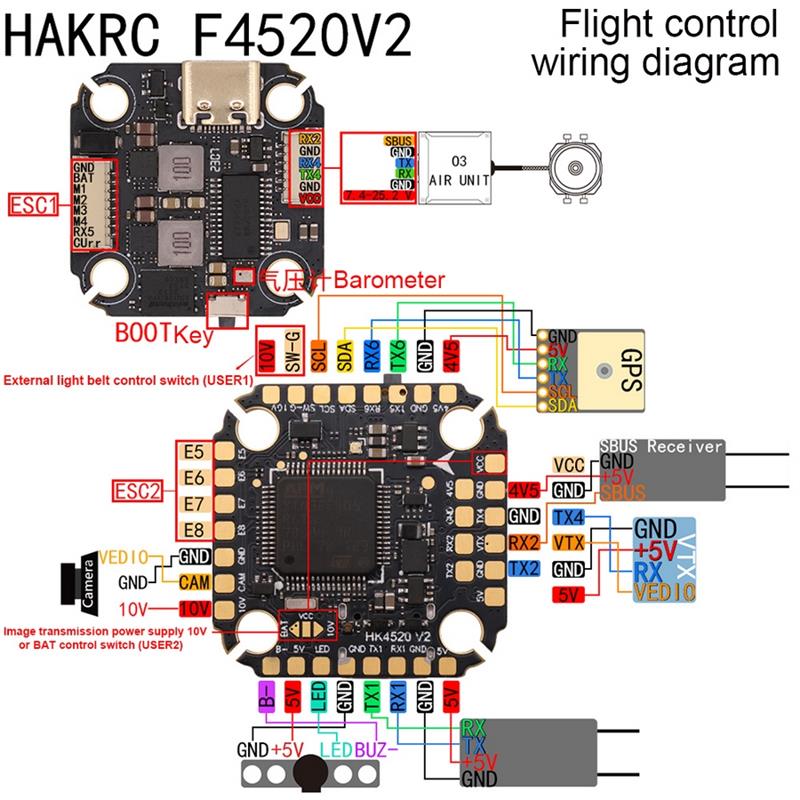

Convenient DJI Plug: The controller includes a built-in DJI sky-end plug, enabling easy installation and eliminating the need for soldering. It’s all about making your life simpler!
Customizable LED Strip Power Source: An externally connected LED strip with a 10V power supply is also provided, which you can customize according to your needs. This enables you to easily control the LED strip’s on/off functions via your remote controller.
Control Your Image Transmission Power Source: The image transmission power supply can be controlled through the ground station’s set switch channel, allowing you to freely turn it on or off for convenient ground tuning.
High-Quality Japanese Murata Capacitors: The board features high-quality Japanese Murata capacitors, providing excellent filtering performance. This means you’ll get cleaner power delivery to your drone’s components, ensuring optimal operation.
Eight Motor Control Signal Outputs: With eight motor control signal outputs, this controller offers you greater flexibility and control over your drone’s motor operations.

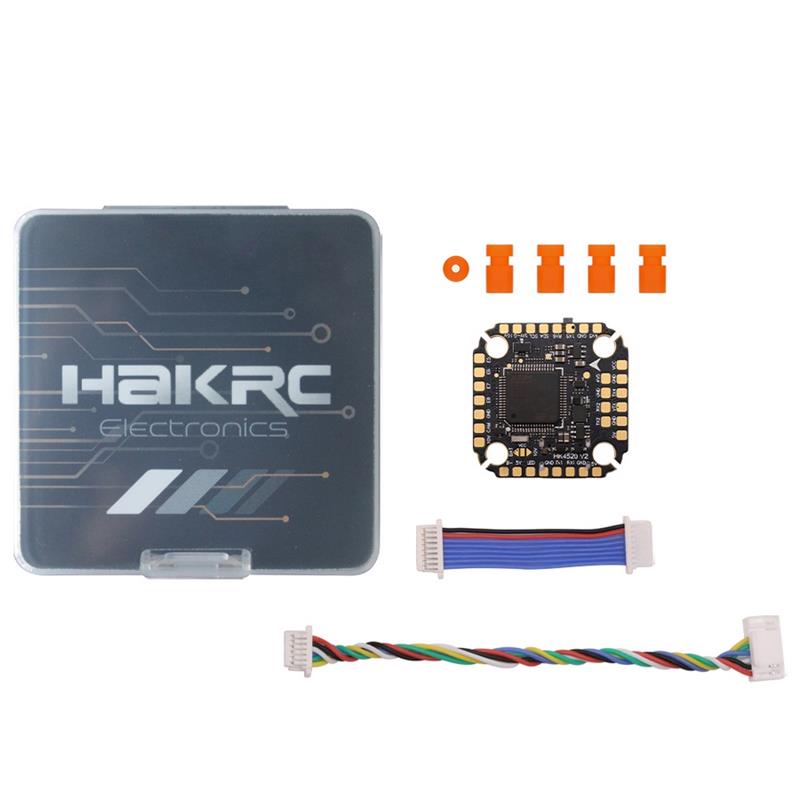

Package Includes:
1x Flight Controller
4x Anti-Vibration Balls
2x Connection Cable










Additional information

Weight 0.037 kg
