RGT EX86100 PRO V2 KIT 1/10 2.4G 4WD RC Car Rock Cruiser Crawler Two Speed EP Climbing Off-Road Truck Vehicles Models
Note:
This RGT rc car is kit,it do not come parts kit,means you do not need to build this car,but you need to prepare electronic parts(motor,esc,servo,transmitter,battery and charger) by yourself
Description:
| Basic information | Brand:RGT Item No:EX86100 PRO V2 Scale:1/10 Color:Black,yellow and white |
Power System |
Motor,esc servo all are not included,belows are recommendation ESC:Hobbywing QUICRUR 80A crawler esc Motor:RGT 570-35t crawler motor Servo:15KG torque steering servo |
| Transmitter | Not Included Recommended Brand:Flysky,dumborc |
Battery | Not Included Recommended Battery:2-3S Lipo or 7.2V Nimh battery(not included) |
| Others | Material:Plastic,hardware and electronic parts Car Weight:3.2kg(without battery) |

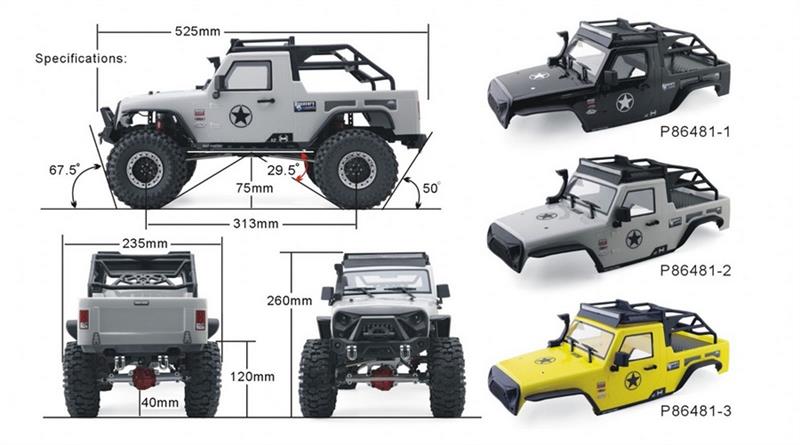

Dimension | Car Size:525*260*235mm Wheelbase:313mm Ground Clearance:75mm(chassis),40mm(bridge axle gearbox) |
RGT Team will unveil EX86100 PRO V2 – ??ROCK CRUIS??Kit version, to well meet the needs of some RC players. This kit version has already fully assembled with upgraded parts, exclude electronic parts. Please only install the power system and the electronic parts before operation, when received EX86100PRO V2.

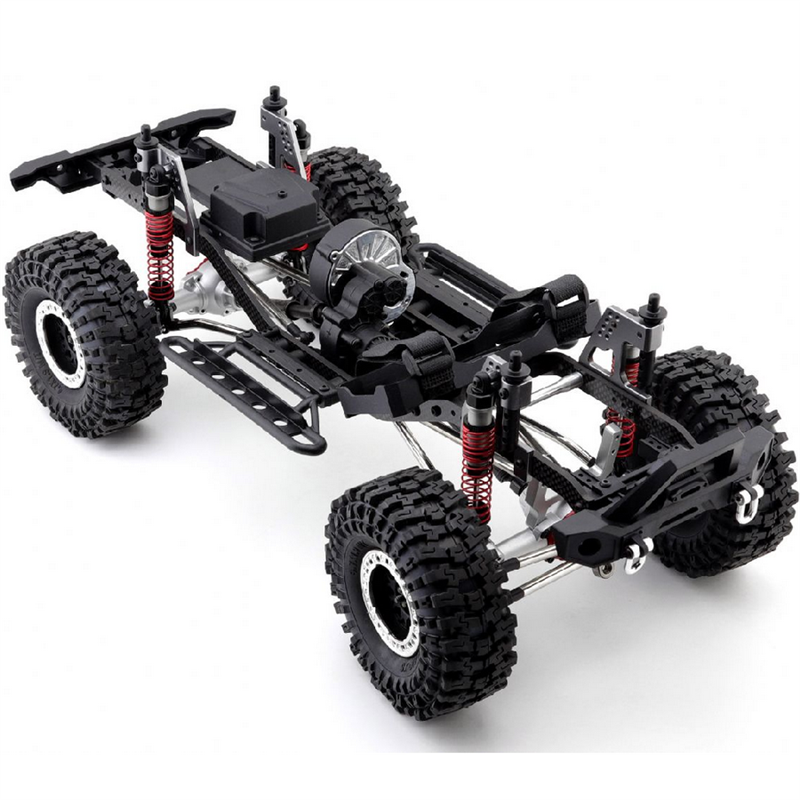

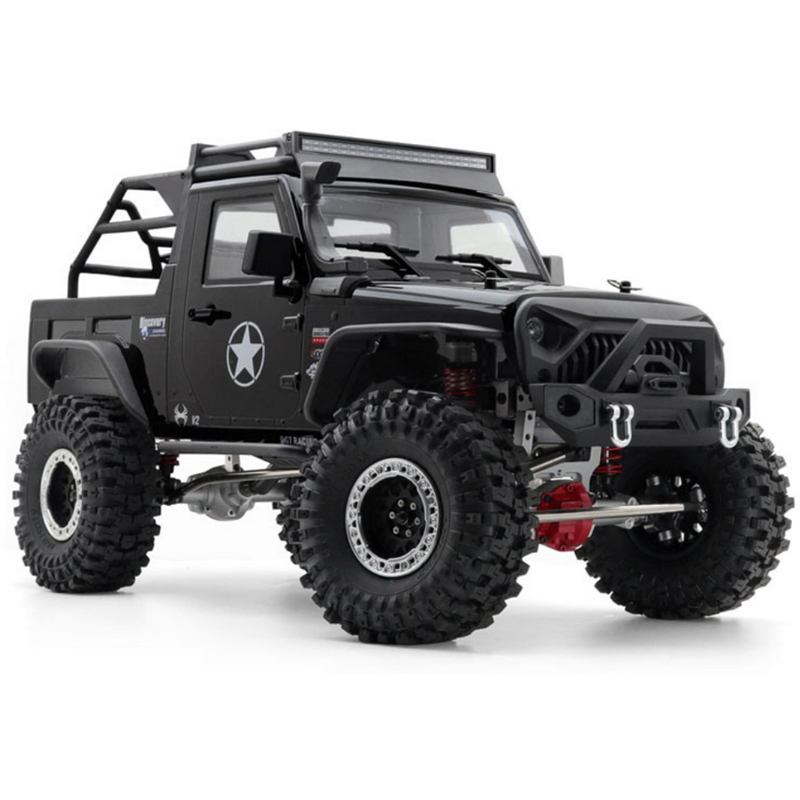

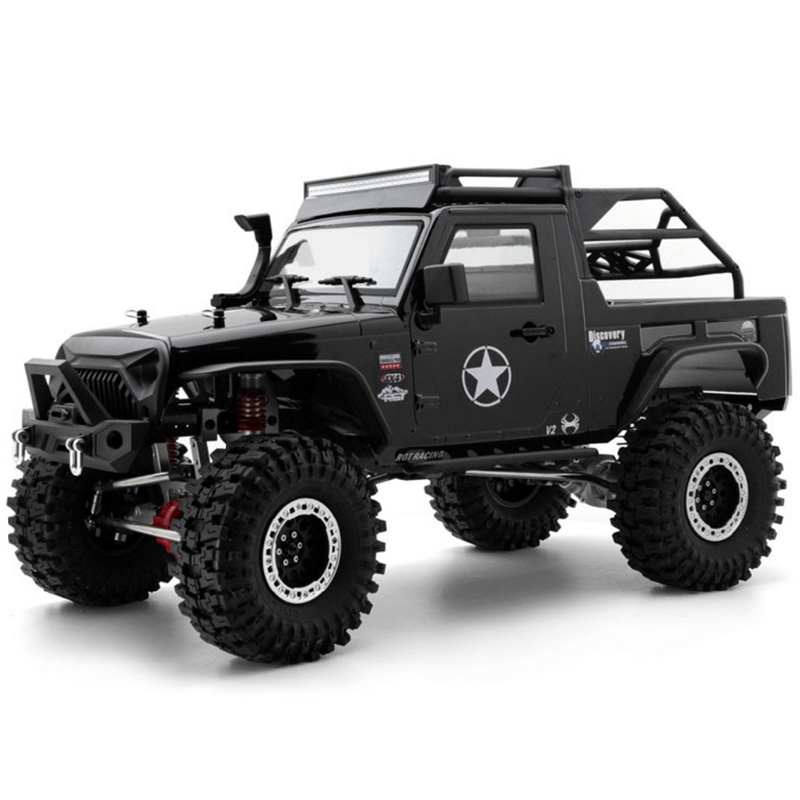

EX86100PRO V2 is equipped with all-metal front and rear axle housing (including steering mount, door-type Caster, rear axle mount, etc.), all-metal CVD drive shaft, CNC 6061 aluminum chassis, all-metal gear (except main gear), all-metal suspension system, carbon fiber rails, matching with excellent realistic fully assembled PC off-rode bodyshell and Angel-eye LED light.
Features:

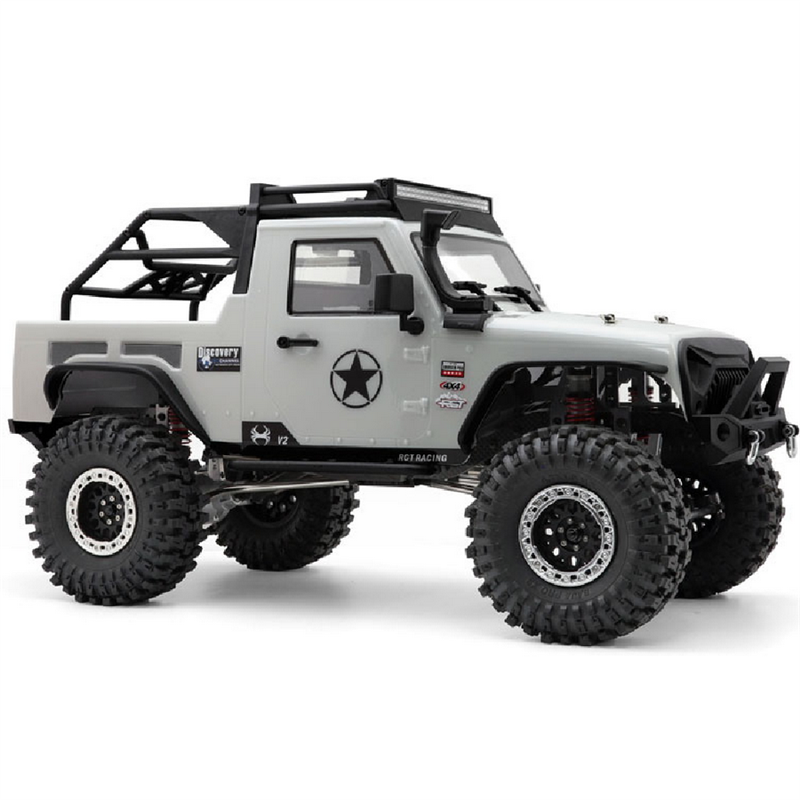

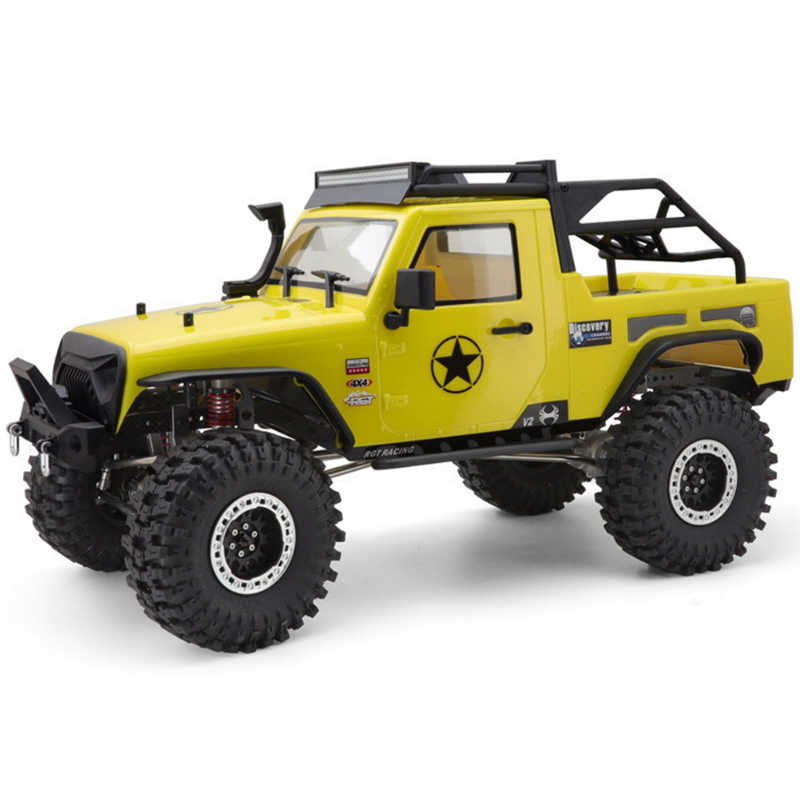

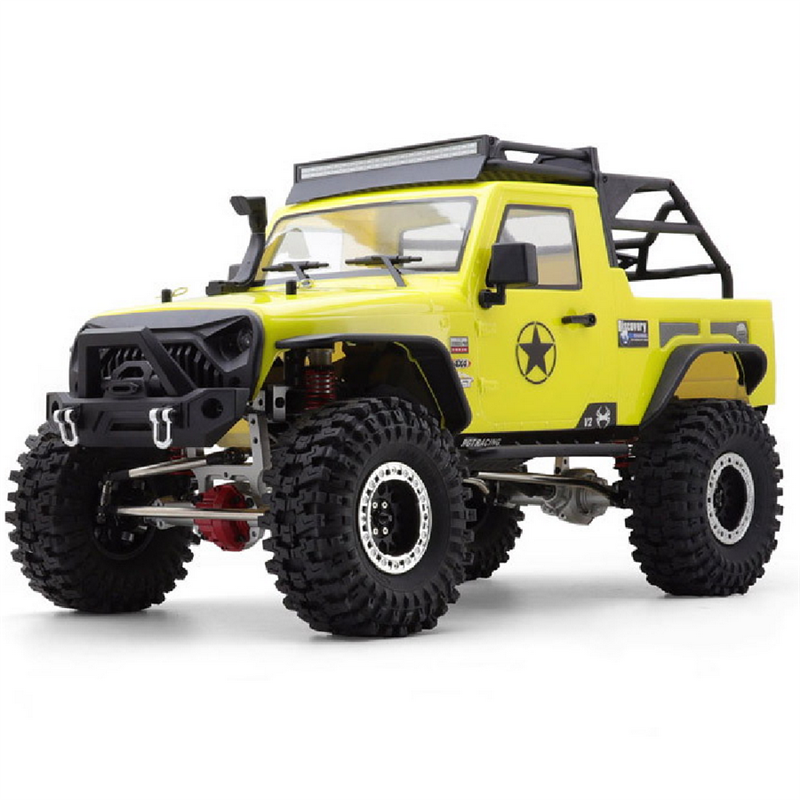

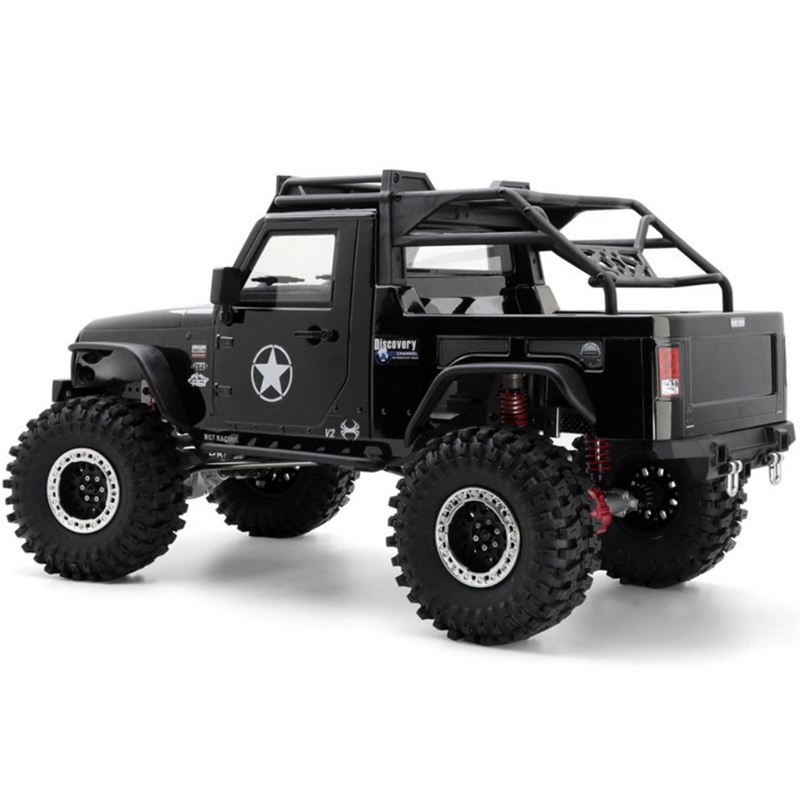

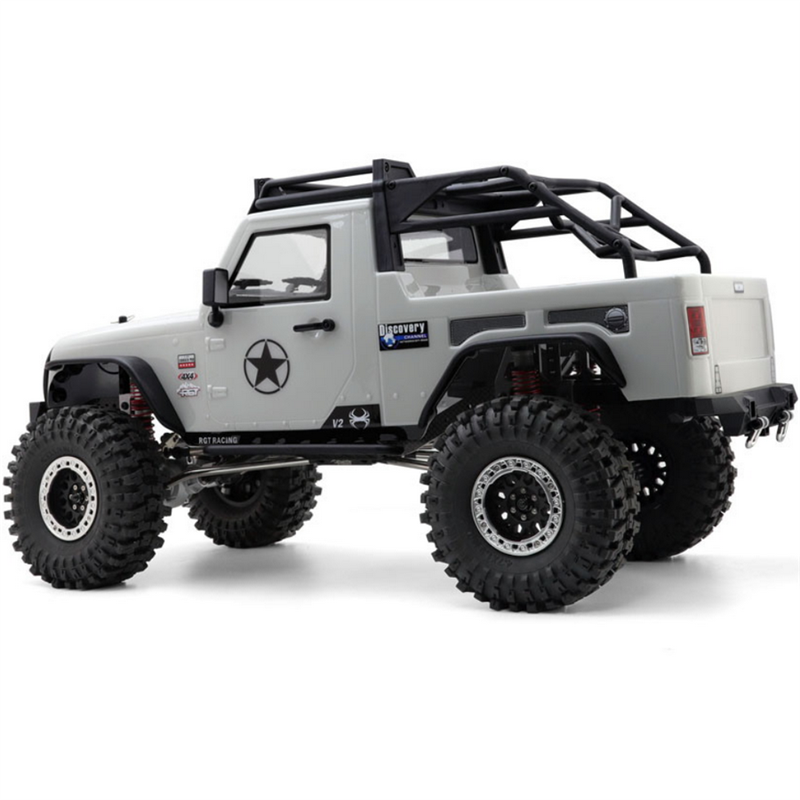

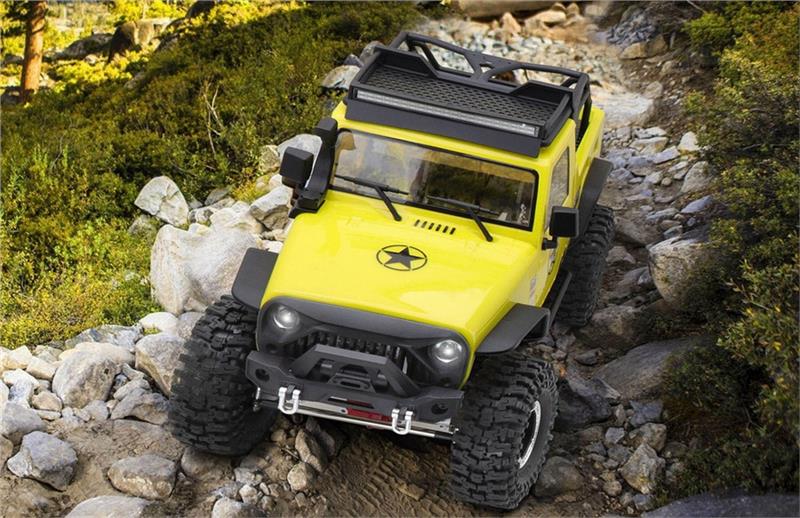

The bodyshell is made of PC soft material, sprayed by eco-paint and came with transparent windows. There have three colors for option, gray, black and yellow. The bodyshell is equipped with wheel fender, roof rack, roll cage, grill, rearview mirror, wiper,snorkel and other plastic accessories, and angel eye LED light,etc.

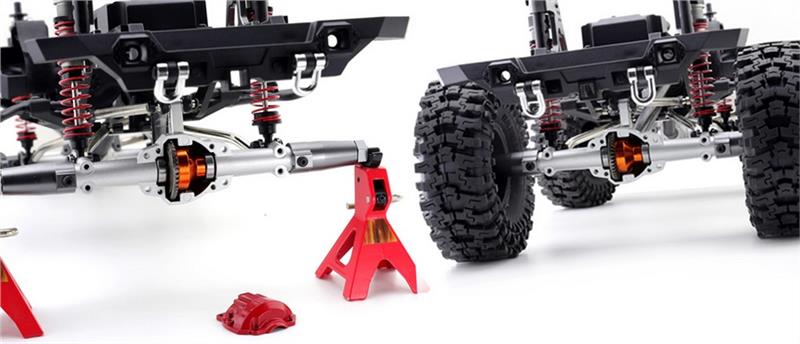

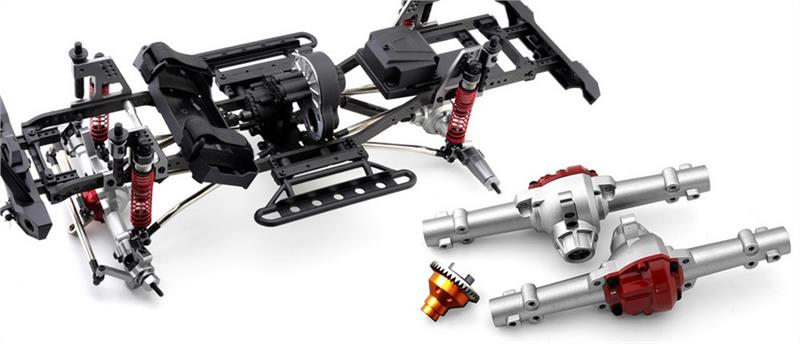

Reverse-drive design,metal integrated front and rear axle housing, gears, axle housing cover, transfer box, CVD drive half-shaft.

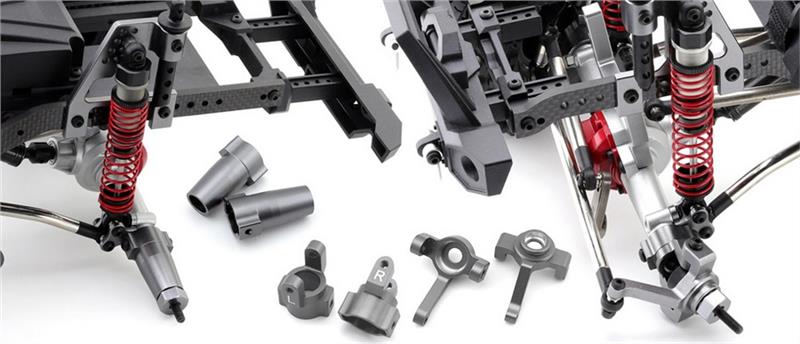

Servo mounted on Axle structure, CNC aluminum servo mount, 25T servo horn, backward tilt angle design door-type Caster block, steering mount, etc. Racing Bumper with winch and hook, showing more domineering and realistic.

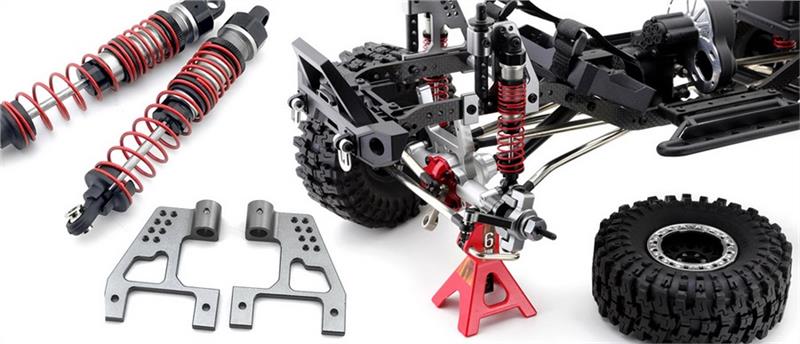

The suspension system uses CNC aluminum shock, dual spring design,adjustable soft and hard damping metal shock absorber, red fuel injection spring.

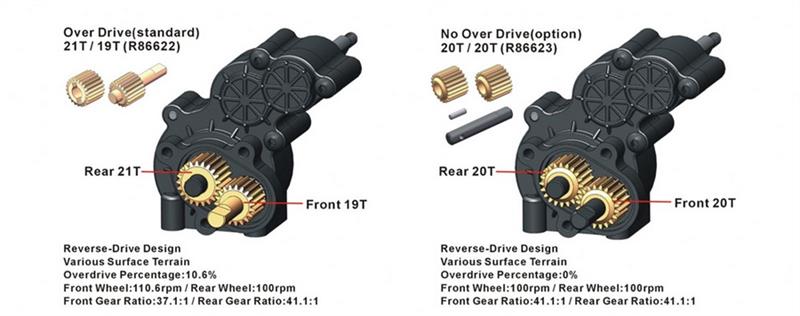

Reverse-drive design
Various surface terrain
Overdrive percentage:10.6%
Front wheel:110.6rpm / Rear wheel:100rpm
Front gear ratio:37.1:1 / Rear gear ratio:41.1:

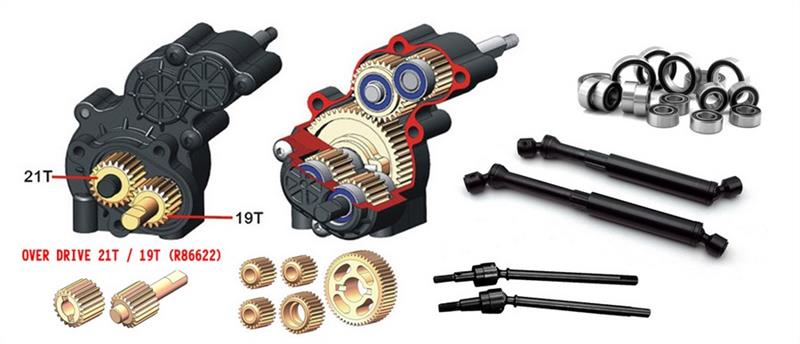

The gears in reduction gearbox are made of high-strength powder alloy material (except the 87T main gear), metal CVD drive shaft, sealed high-quality bearing could mitigate the shaft effect and decrease the teeth sweeping under super resistance load.
The different gear ratio of the front and rear wheel rotate speed, and the reverse transmission system, they could reduce the shaft effect and prevent the vehicle from overturning when climb up and down, etc.
CNC aluminum motor fixed plate, suiting for 14T – 23T motor pinion.

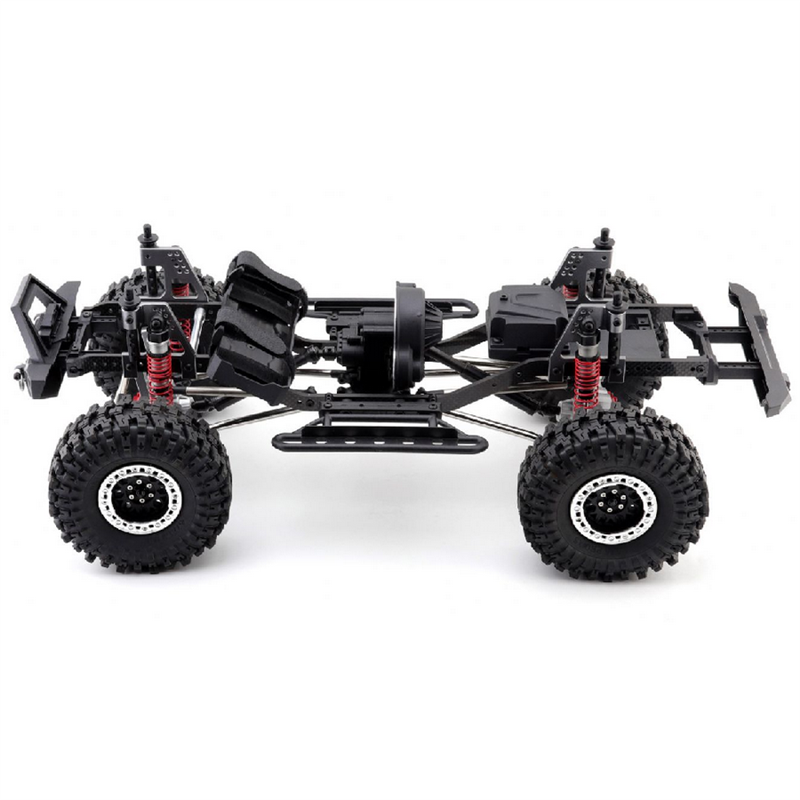

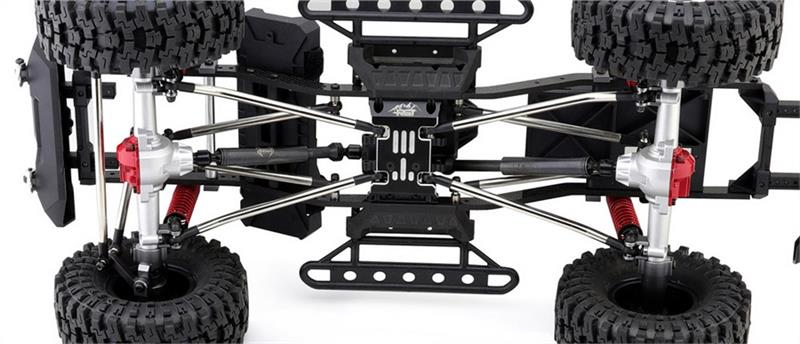

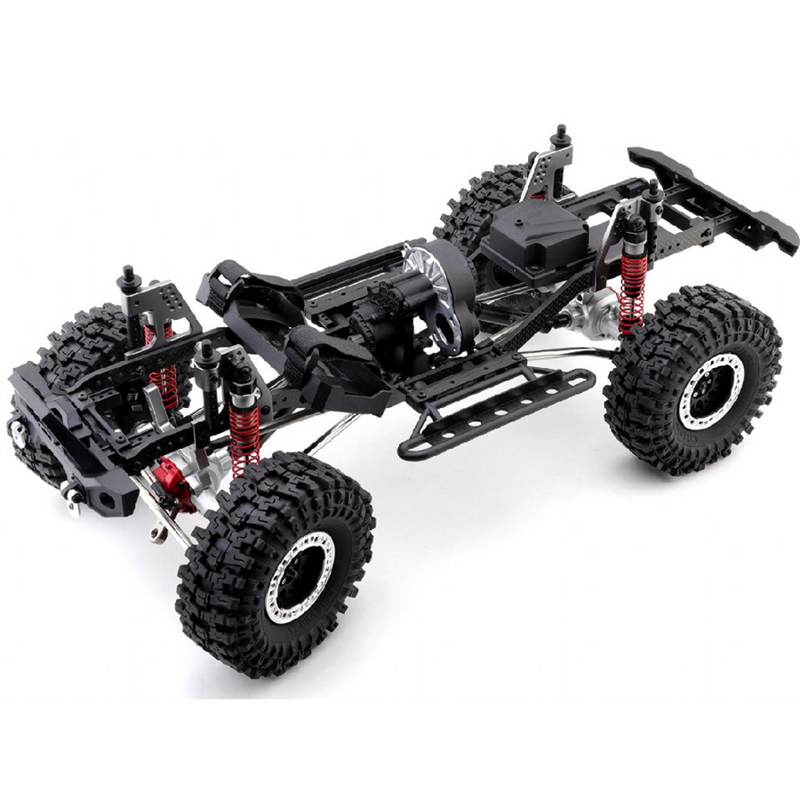

CNC aluminum chassis plate, connecting link with angle design, helping avoid obstacles under the car when climbing.

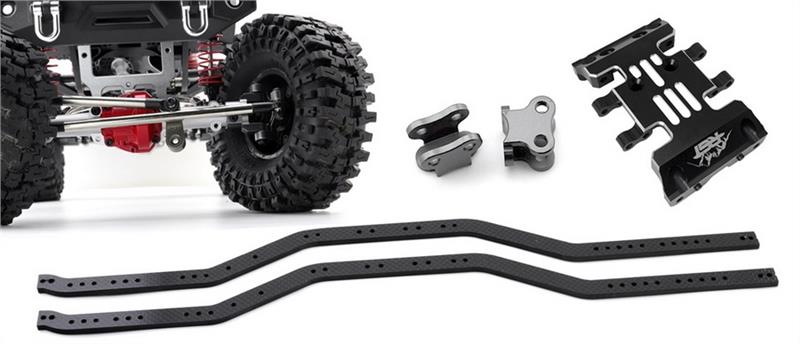

4.5mm carbon fiber chassis rail, with reserved holes to modify and upgrade the wheelbase, suspension, bodyshell, bumper, etc.

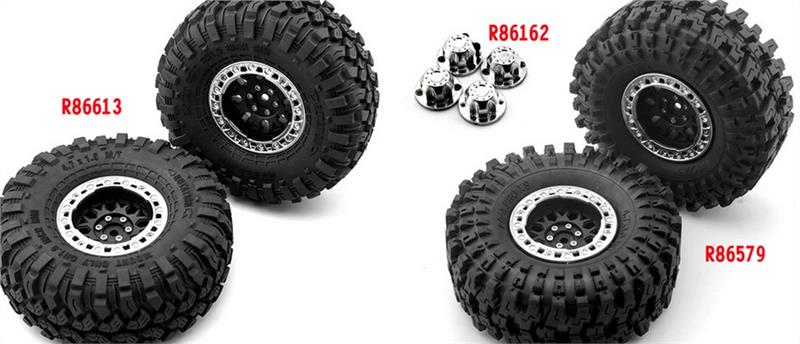

1.9 inch wheel hub dual color simulated design, two MT tires for option. New Tire comes with wider and deeper pattern, improving the climbing performance.

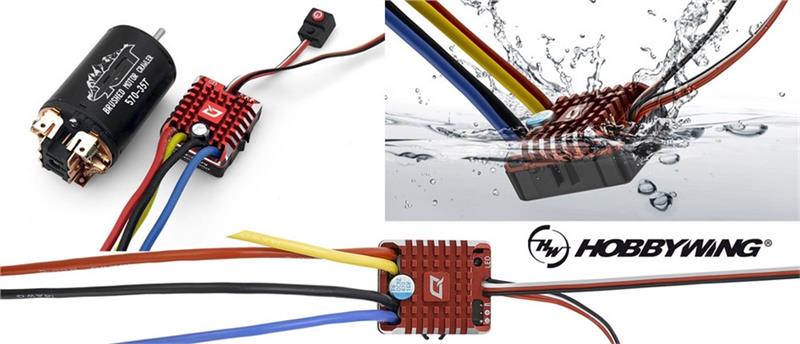

Upgrade power Kit for option(NOT INCLUDED): ??Hobbywing QUICRUR0 Acustomed crawler ESC and 570-35 T crawler motor.
Package Included:
1X RC Car(do not have motor,esc,servo,transmitter,battery and charger)
1X Manual
