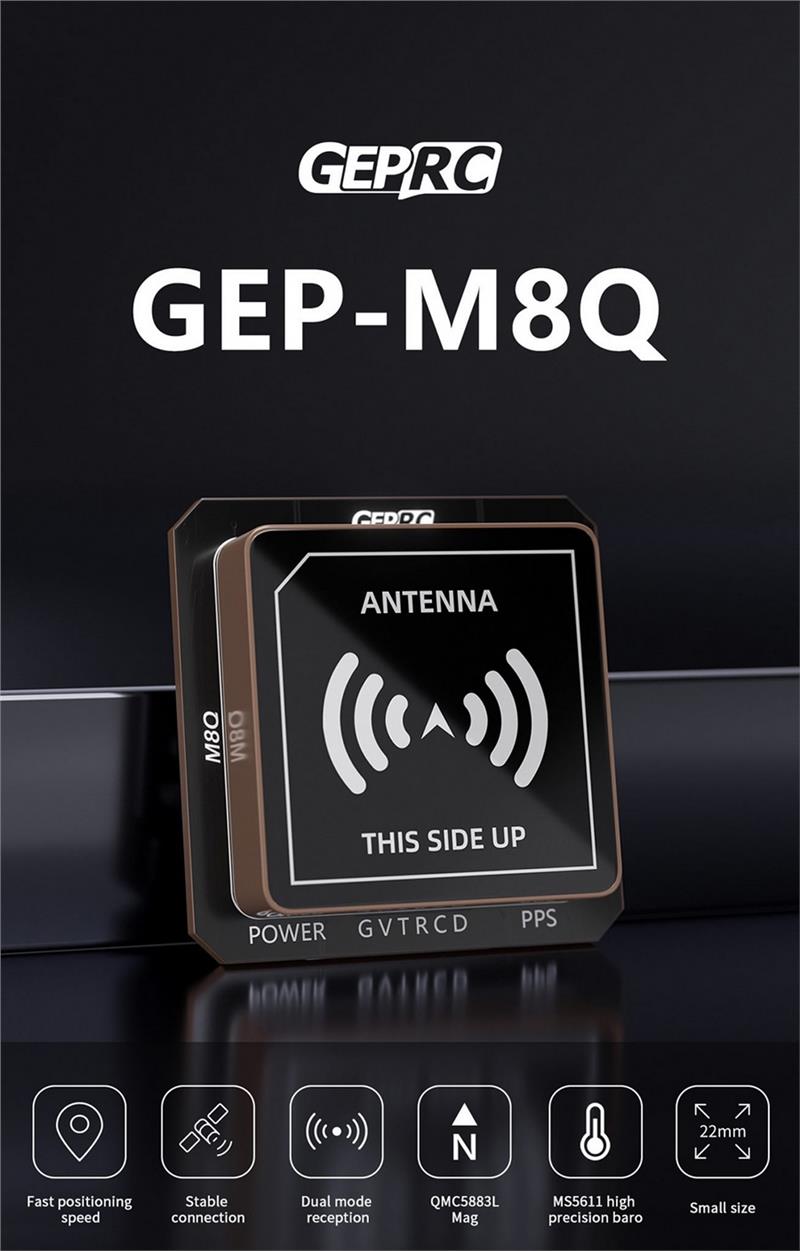

GEPRC GEP M8Q GPS Module 3.3-5V Built-in QMC5883L Compass for RC Drone FPV Racing Multi-Rotor Fixed-wing RC Airplane
Specifications:
Brand: Geprc
Model: GM8Q GPS
Optional Version: GPS+BDS / GPS+GLONASS
Input Voltage: 3.3V-5V
Receiving Format: GPS??GLONASS??BDS (Choose GLONASS or BDS)
Channel: 72ch
Compass: QMC5883L

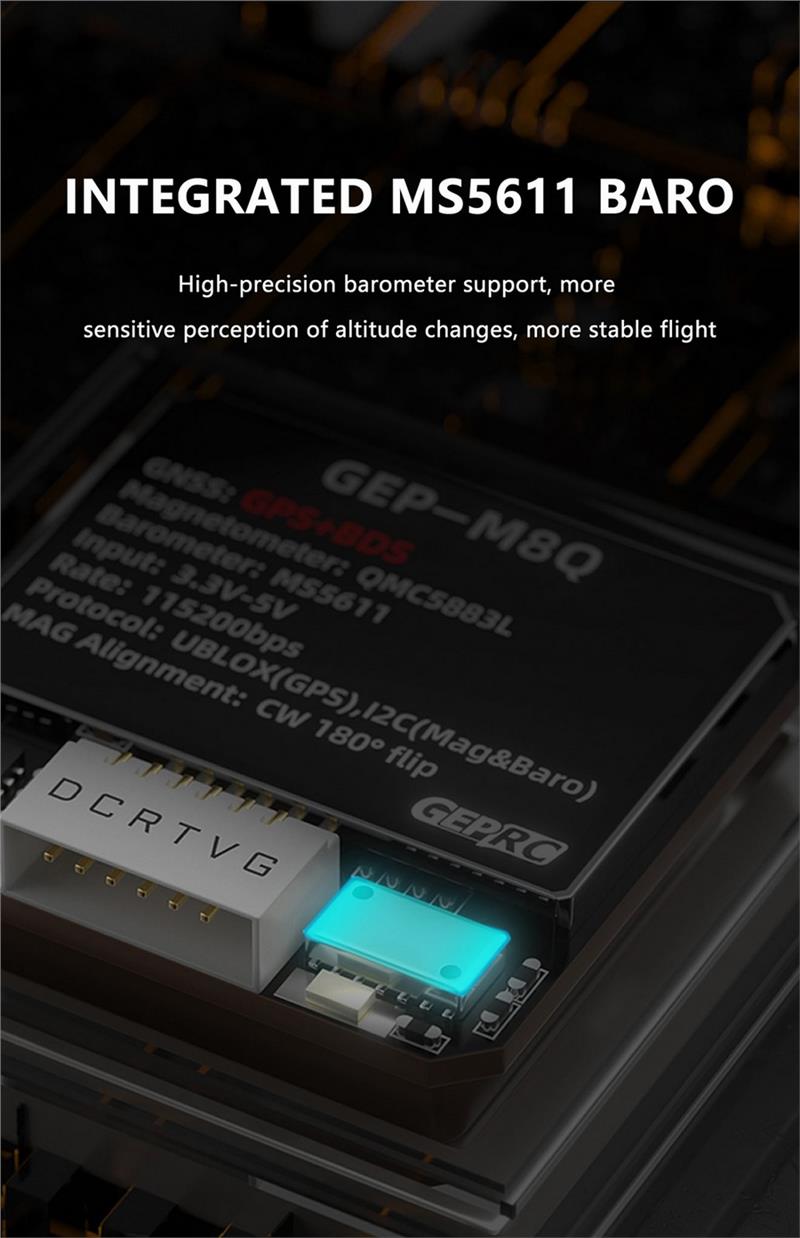

Barometer??MS5611
Baud Rate: 115200bps

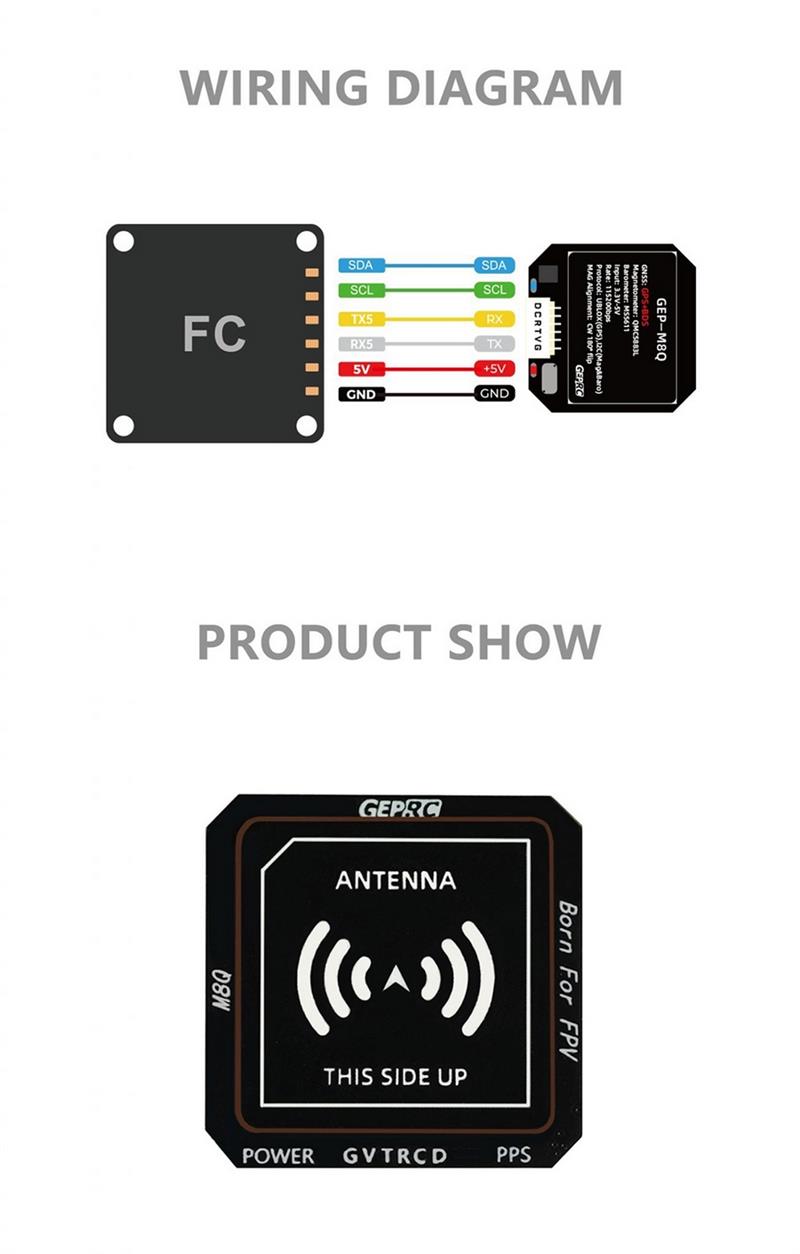

Output Connector: SH1.0-6P
Communication Protocol: UBLOX(GPS)??I2C(Mag&Baro)
Output Frequency: 10Hz
MAG Alignment??CW 180?? flip
Speed Accuracy: 0.05 m / s
Horizontal positioning accuracy: horizontal <2.5M, SBAS < 2.0M
Timing Accuracy: 30 ns
Receiving Sensitivity: Trace -162dBm, Capture-160dBm
Dynamic Characteristics : Max Height: 50000m, Max Speed: 500m/s
Max Acceleration: 4G

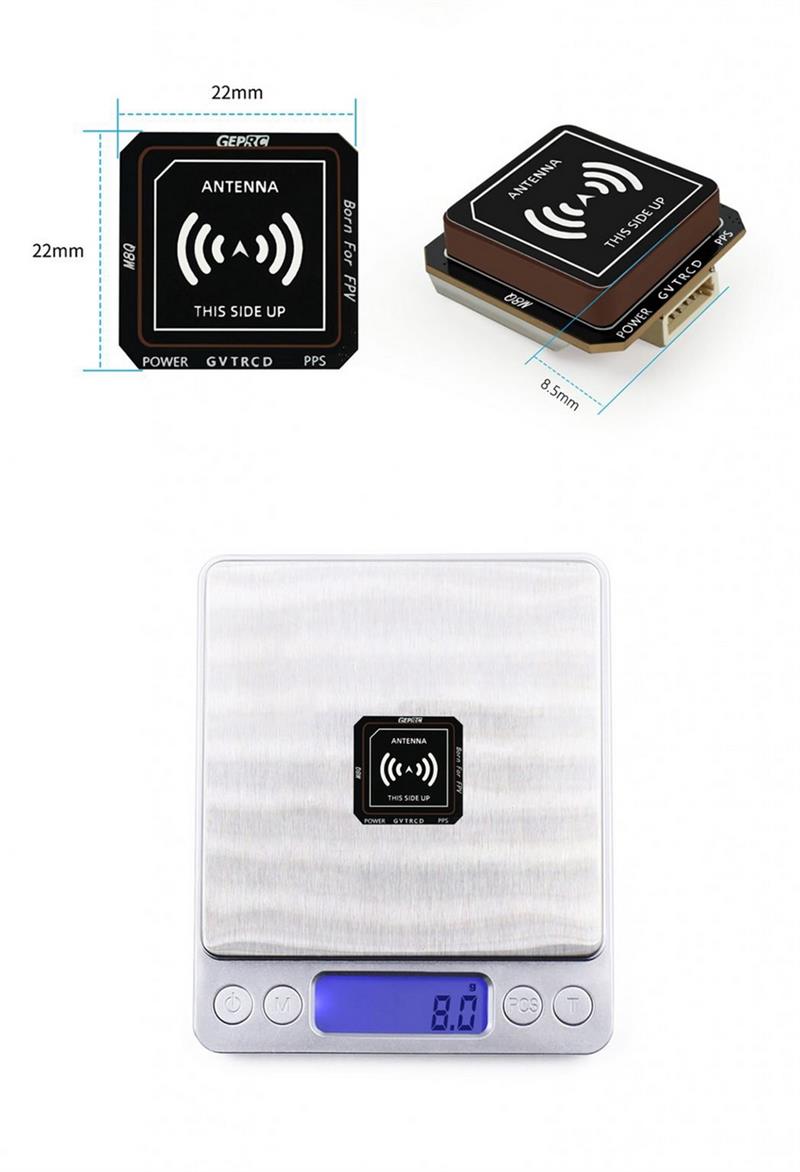

Size: 22mm x 22mm x 8.5mm
Weight: 8g
Features:
Rapid Positioning Speed: The GEPRC GEP-M8Q GPS module offers fast positioning, allowing for quick acquisition of accurate location data. It enhances the efficiency of your FPV drones, multi-rotors, fixed-wing aircraft, and other model products.
Stable Connection: This GPS module ensures a stable connection, providing reliable and uninterrupted communication between your devices and the GPS system. Enjoy consistent and precise navigation for your aerial activities.

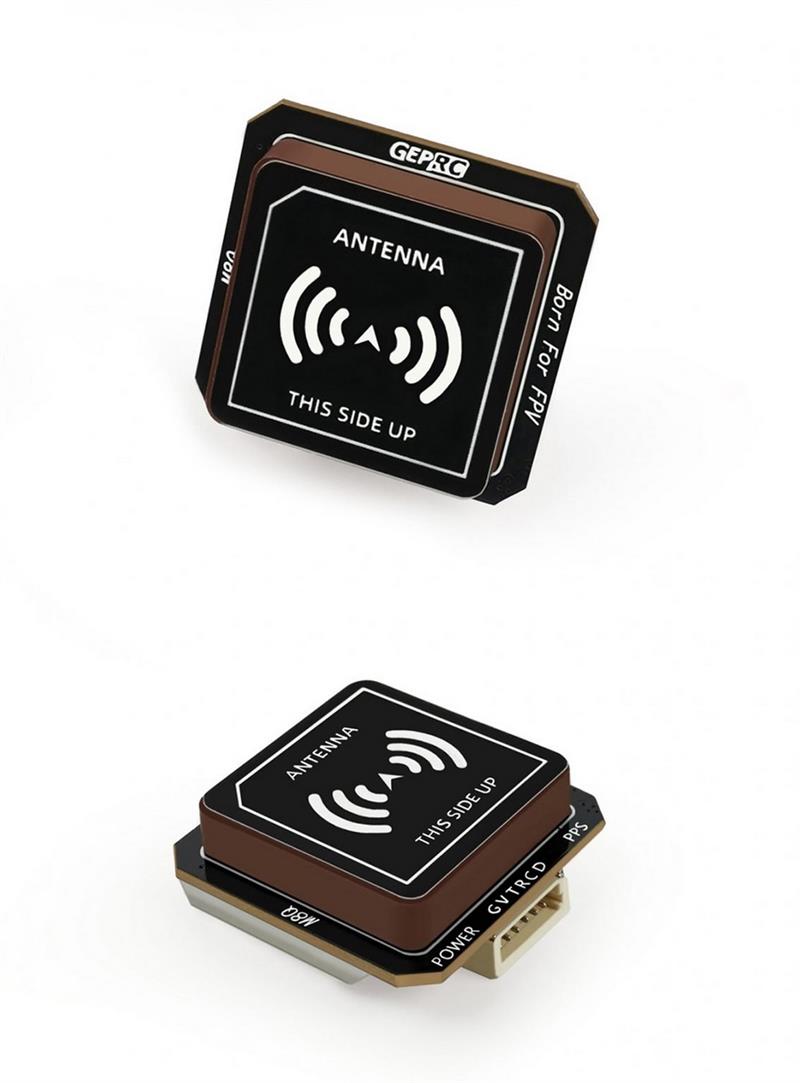

Advanced Design: The GEP-M8Q features a unique appearance design that sets it apart from other GPS modules. Its sleek and modern look adds style and sophistication to your drone setup.
Compact and Lightweight: With its small size and lightweight construction, the GEP-M8Q is designed to minimize weight and size impact on your drones or other devices. It offers optimal performance without compromising maneuverability.
Convenient Terminal Design: The SH1.0-6Pin terminal design eliminates the need for soldering, making installation hassle-free and convenient. It simplifies the setup process, saving you time and effort.

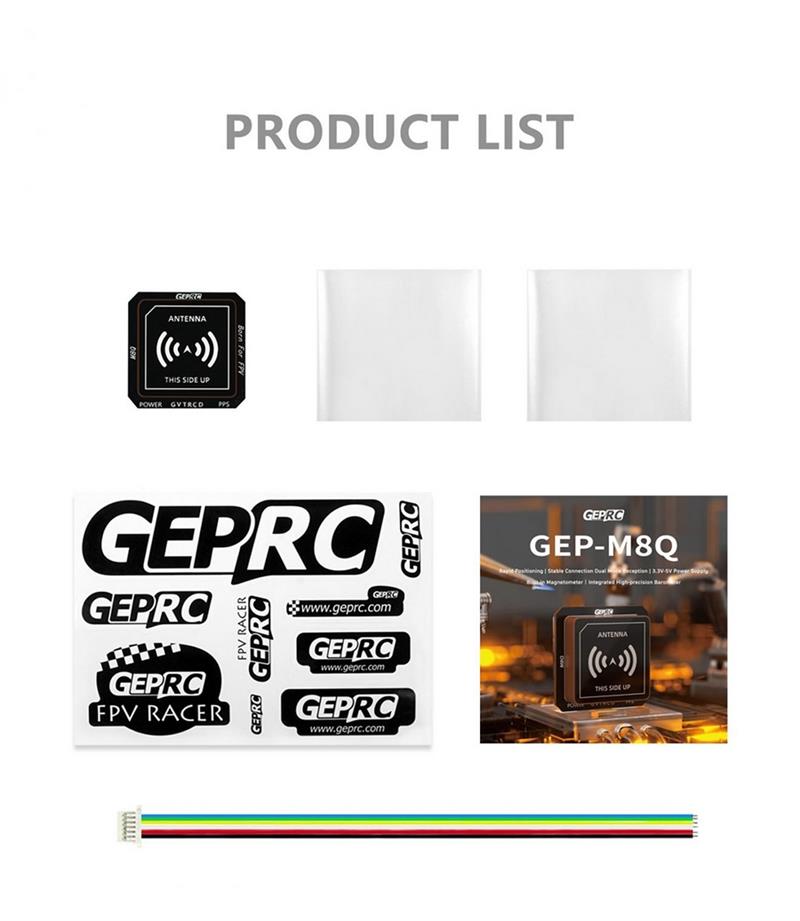

Package Includes:
1 x M8Q GPS module
1 x SH1.0-6Pin terminal cable
1 x User Manual
1 x GEPRC Sticker
2 x Heat shrink tube
