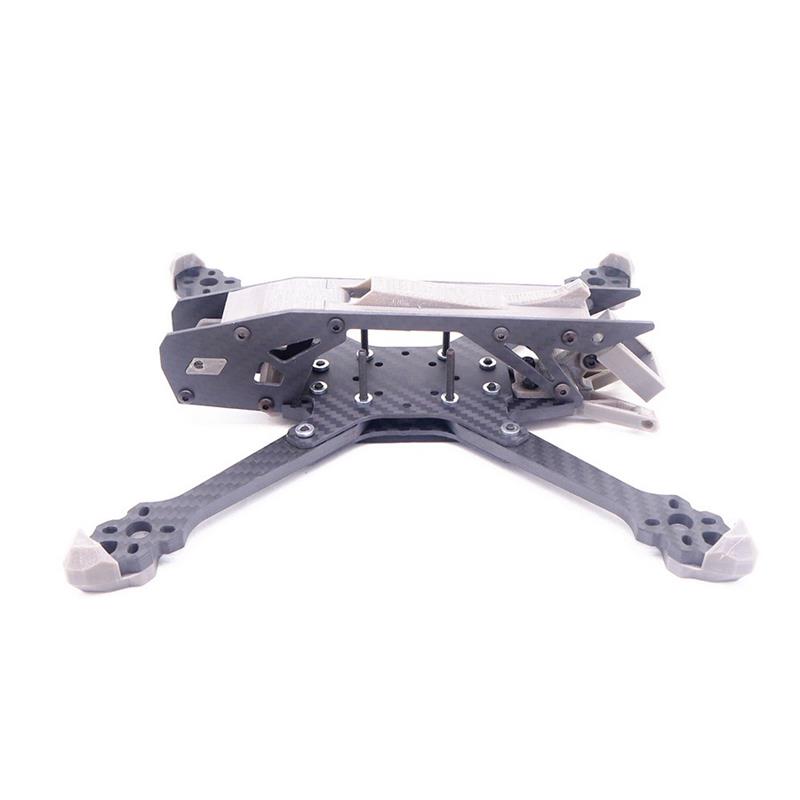

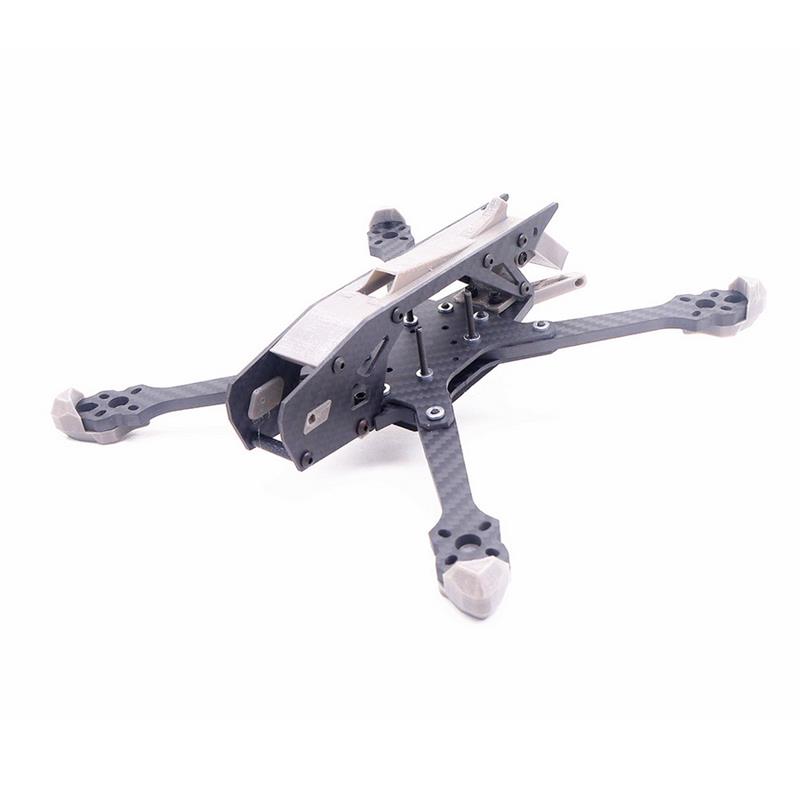

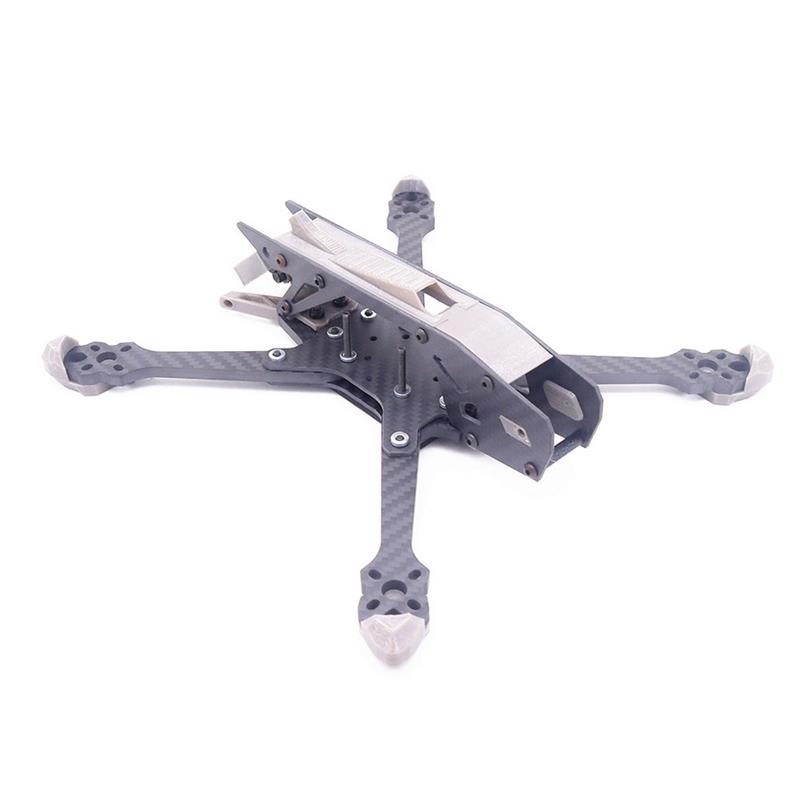

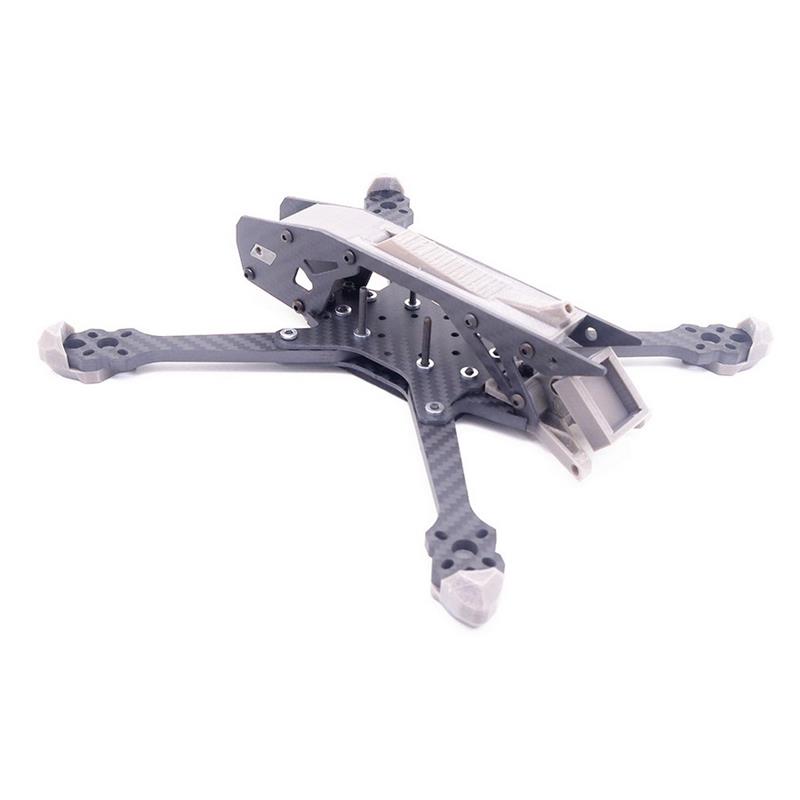

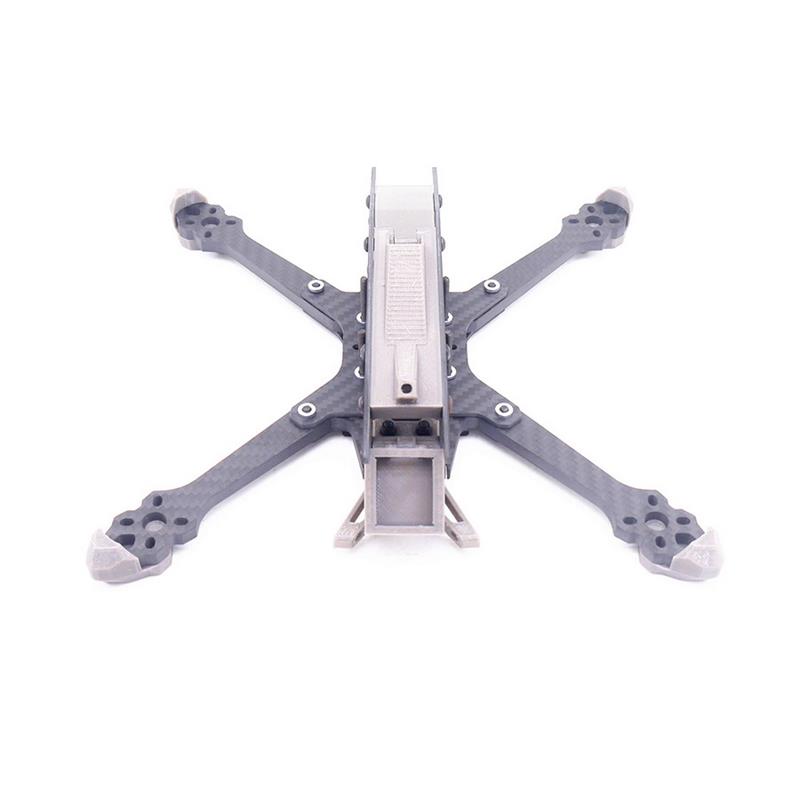

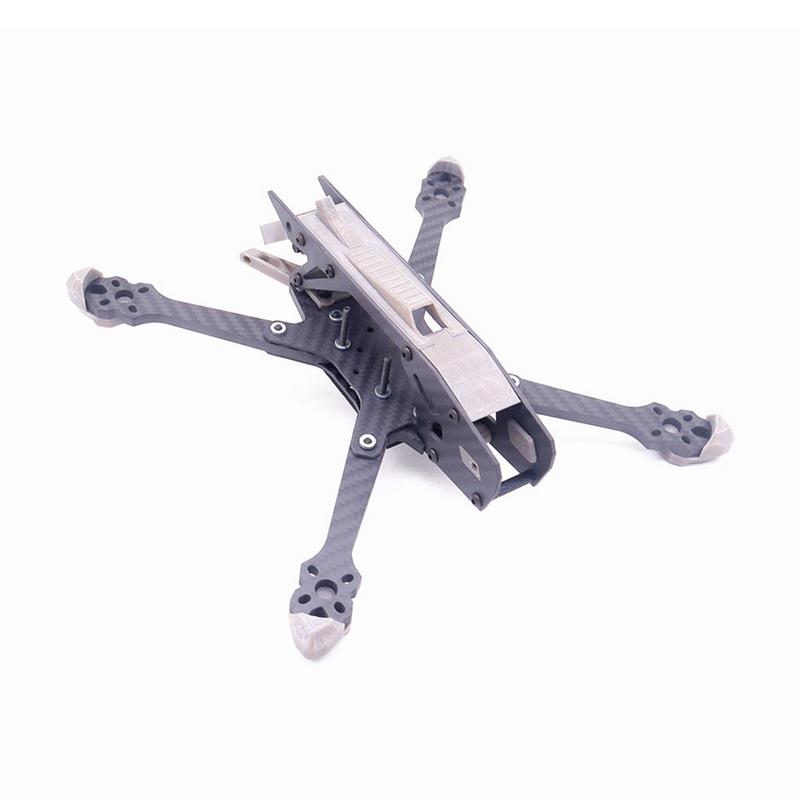

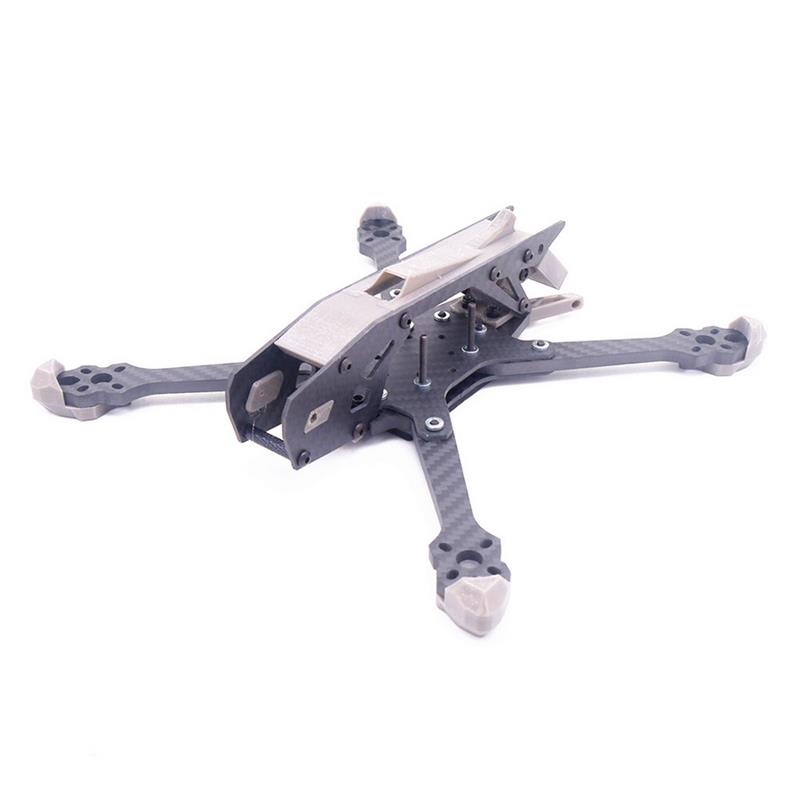

TEOSAW Asurada5 230mm Wheelbase 5mm Arm Thickness Carbon Fiber 5 Inch Frame Kit for DIY Freestyle RC Drone FPV Racing
Specifications:
Brand: TEOSAW
Model: Asurada5
Wheelbase: 230mm

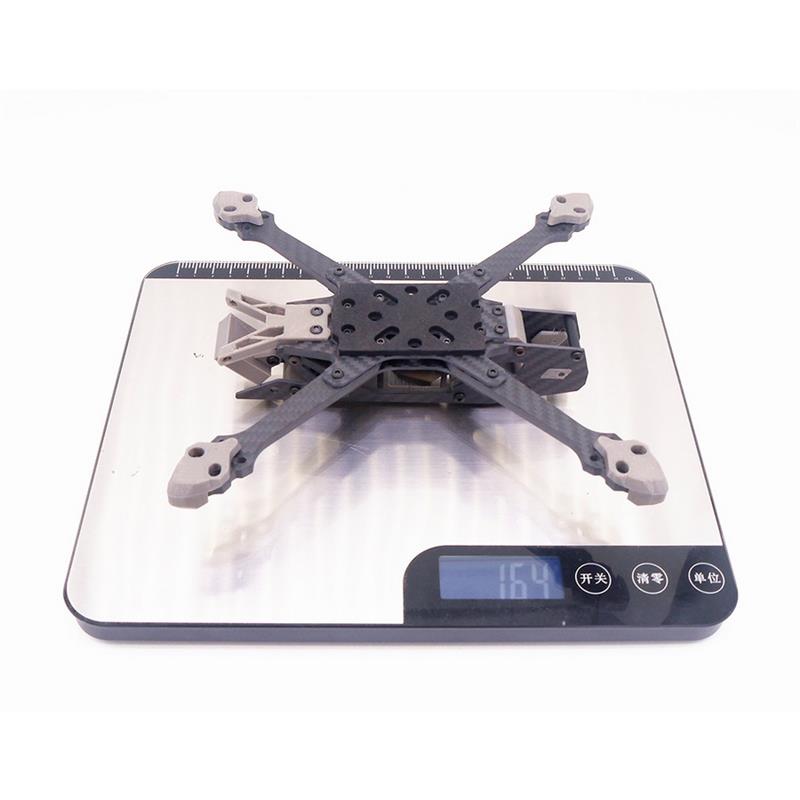

Weight: 164g
Arm Plate Thickness: 5.0mm
Other Plate Thickness: 2.0mm
Recommend Propeller Size: 5.0 inch
Flight Controller Hole Distance: 30.5×30.5mm (M3), 25.5×25.5mm (M3), 20x20mm (M3)
Camera Installation Width: 20mm (M2)
Internal Height: Approx. 18mm
Motor Installation Hole Position: 16X16mm(M3) and 19X19mm(M3)

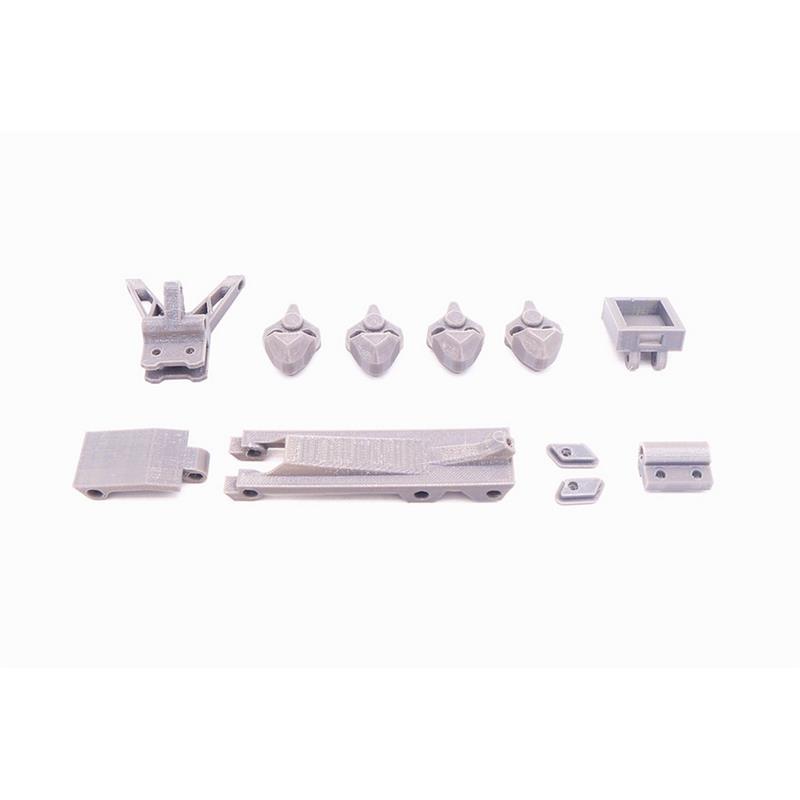

3D Printed Parts Material: TPU
3D Printed Parts Color: Grey
Features:
Efficient Design: A positive X-type split body structure optimizes flight stability and control.
Quality Material: The frame’s structure involves a 5.0mm arm, 2.0mm plates, and 3D-printed TPU components for durability and lightweight performance.
Multiple Mounting Options: The frame includes various mounting hole options for flight controllers and cameras, enhancing compatibility.
GPS Support: The frame is designed to accommodate a BN-220 GPS for advanced flight functionalities.
Comprehensive Protection: 3D-printed TPU motor protection seats are included to prevent damage to motors.
Recommend Parts: ( NOT Included)
FC & ESC: 20x20mm HAKRC F7 2-6S FC & 35 ABL_S 4in1 ESC Stack
Brushless Motor: iFlight XING-E Pro 2207 1800KV 3-6S /2450KV 2750KV 2-4S
Propeller: HQProp Ethix S3 Watermelon 5031 5×3.1 5 Inch 3-Blade Propeller
Lipo Battery: ZOP Power 14.8V 850mAh 100C 4S LiPo Battery
Gaoneng GNB 22.8V 1100mAh 60C 6S LiPo Battery
Package Included:
1x Empty Frame Kit
1 x Mounting Seat for 915 Antenna
1 x Mounting Seat for GPS
4 x Motor Protection Seats
