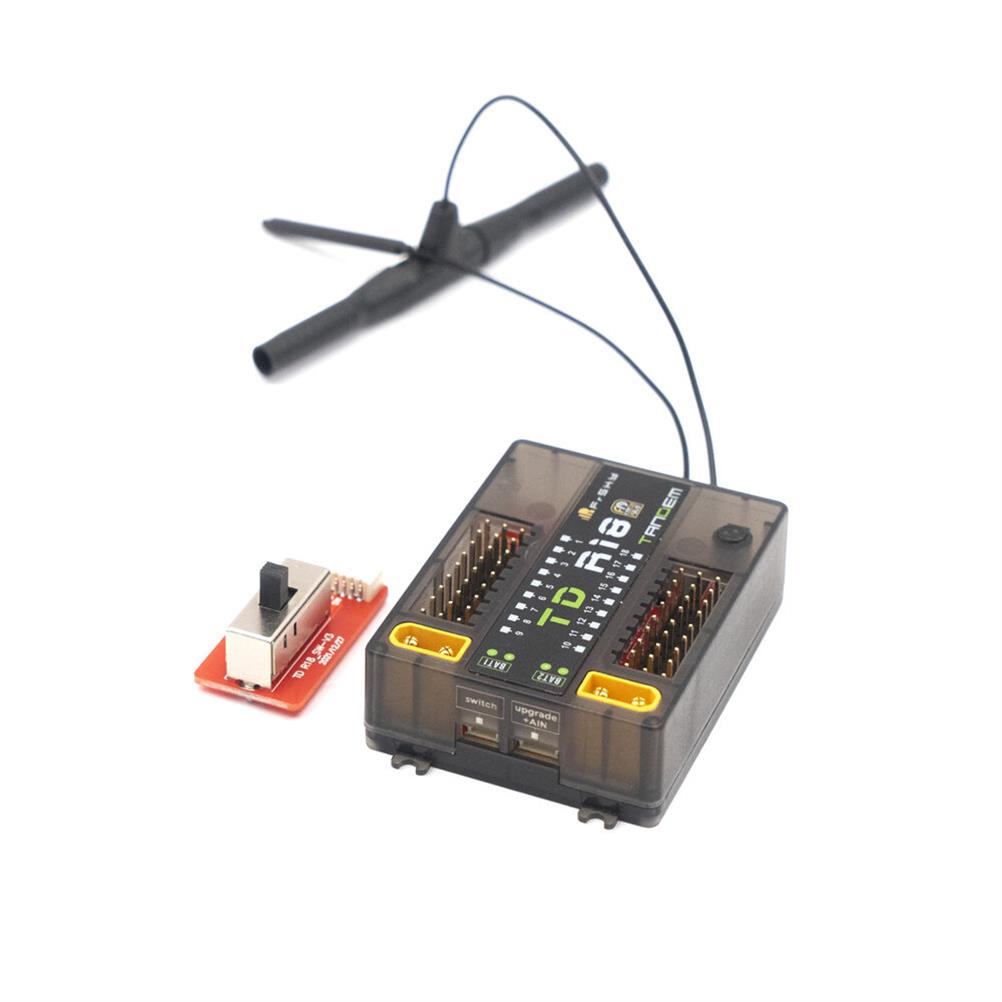

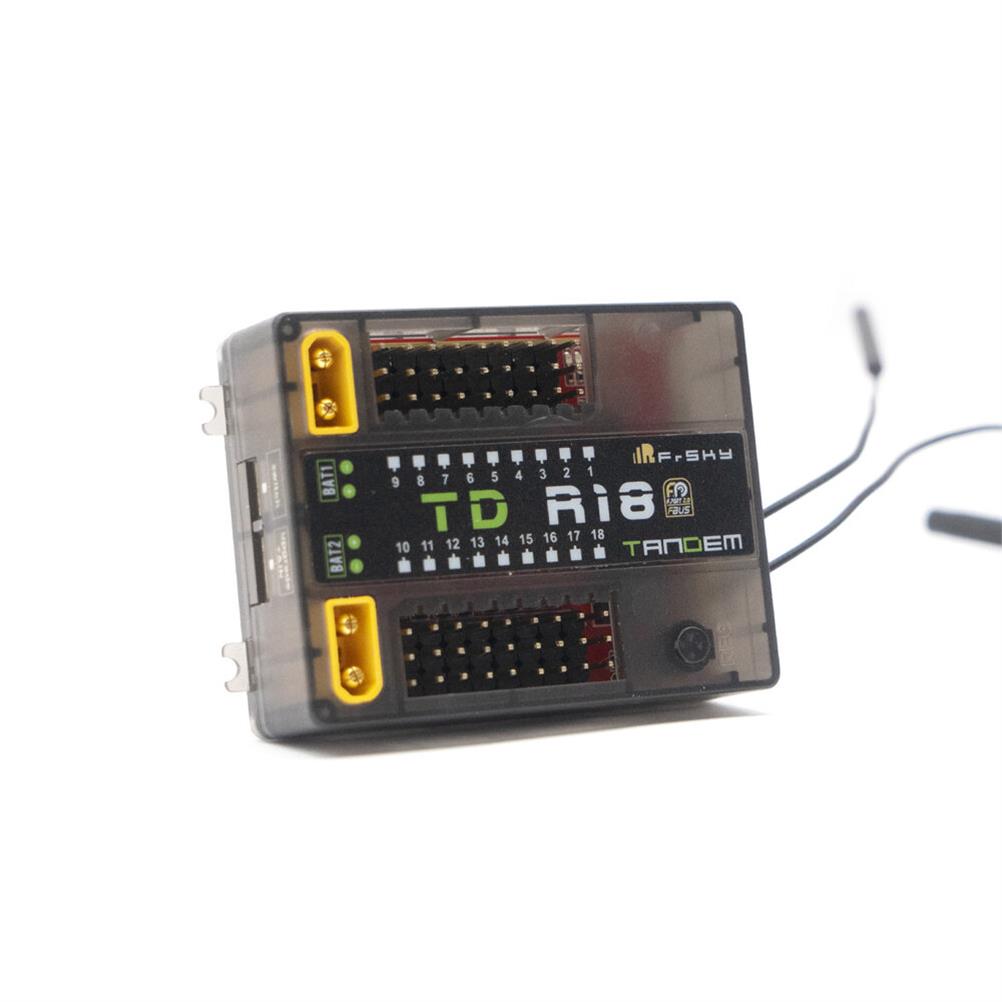

FrSky TD R18 OTA 2.4G 900M 18CH Tandem Dual-Band Mini Receiver Low Latency Long Range Built-in Power Switch for RC Drone
FrSky TD R18 OTA 2.4G 900M 18CH Tandem Dual-Band Mini Receiver Low Latency Long Range Built-in Power Switch for RC Drone
OVERVIEW:
Neither like other FrSky 2.4G receivers nor 900M receivers,the Tandem dual-band series receivers work simultaneously at both 900M and 2.4G frequencies that means it can give not only low latency signal control but long control range with an enhanced level of high reliability and anti-interference performance.
The Tandem series receivers adopt the triple antenna design that can give the multi-directional coverage as wide as possible for the remote signal. The 900M antenna comes with a newly designed small form factor, but it has the equivalent high-performance as the original 900M antenna.
The data (Power & Signal related) under unusual status during the flight can be recorded by Tandem receivers through a built-in black box module, and TD R18 can additionally save the complete and long-term data (Control & Flight Attitude data log, etc.) by SD card through the external module. TD R18 also provides a socket that can be used to connect the switch panel/NFC Switch panel to enable the built-in Power Switch function.
The configurable 18 channel ports are a big feature of TD R18, each channel port can be assigned as PWM, SBUS, FBUS, or S.Port. With the FBUS protocol, the Tandem series receivers can open up the possibility of seamlessly pairing with multiple telemetry devices (Neuron ESC, Advance Sensors, etc.) as well as simplifying the builds setup.
SPECIFICATIONS: (Manual)
Brand Name: FrSky
Item Name: TD R18 Dual-Band Mini Receiver
Model: TD R18
Frequency: 2.4GHz & 900MHz
Dimension: 53*40*16mm (L*W*H)
Weight: 27g
Operating Voltage: 4-10v
Compatibility: Tandem series radio & TD protocol capable RF module
Dual XT30 Power Input Connector
Triple 2.4G/900M Antenna
1* Interior 2.4G chip antenna
1* External 2.4G antenna (IPEX1)
1* Newly designed 900M antenna
FEATURES:
Simultaneous working dual-band TD mode
Triple antenna design for multi-directional coverage
Black Box function
Built-in Power Switch
Built-in current and voltage sensors
4ms Race Mode with Telemetry
Long control range (up to 50KM 100KM)
Over-The-Air (OTA) FW update
18 Configurable Channel Ports
Package Included:
1 x TD R18 Dual-Band Mini Receiver
