GEPRC SPEEDX2 0802 1S 17000KV / 22000KV Brushless Motor 1mm Shaft for Tiny & Whoop RC Drone FPV Racing
Summary
GEPRC SPEEDX2 0802 brushless motor, specially developed for Tiny and Whoop FPV, SPEEDX2 motors are enough to meet your needs.
GEPRC SPEEDX2 0802 motors have good heat dissipation, lightweight design, advanced material technology, perfect for Tiny and Whoop FPV.
Specifications
Model: SPEEDX2 0802
KV: 17000KV/22000KV
Configuration: 9N12P
Stator Diameter: 8.4mm
Stator Height: 2.0mm

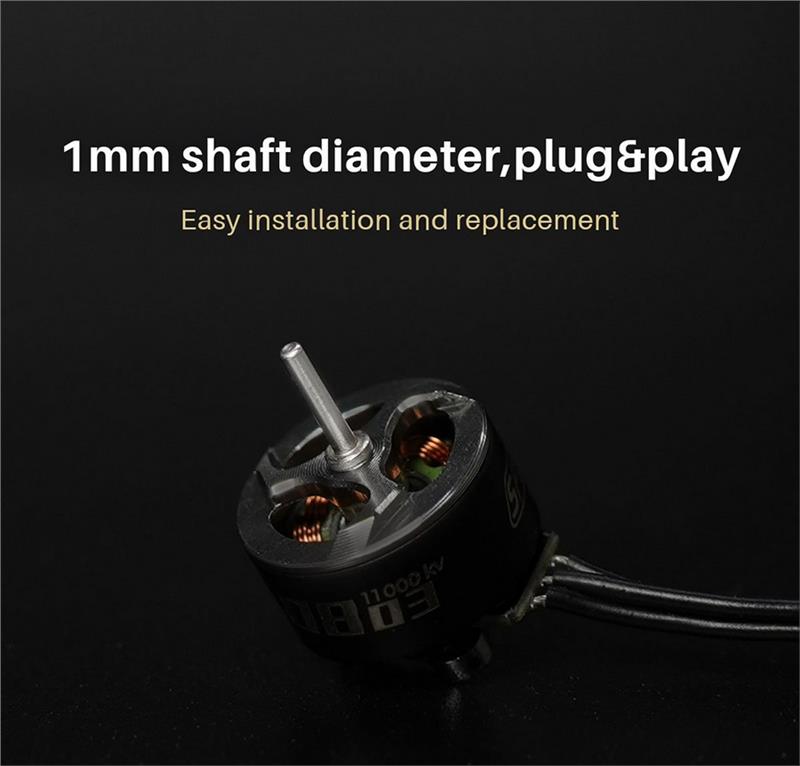

Shaft Diameter: ??1.0mm

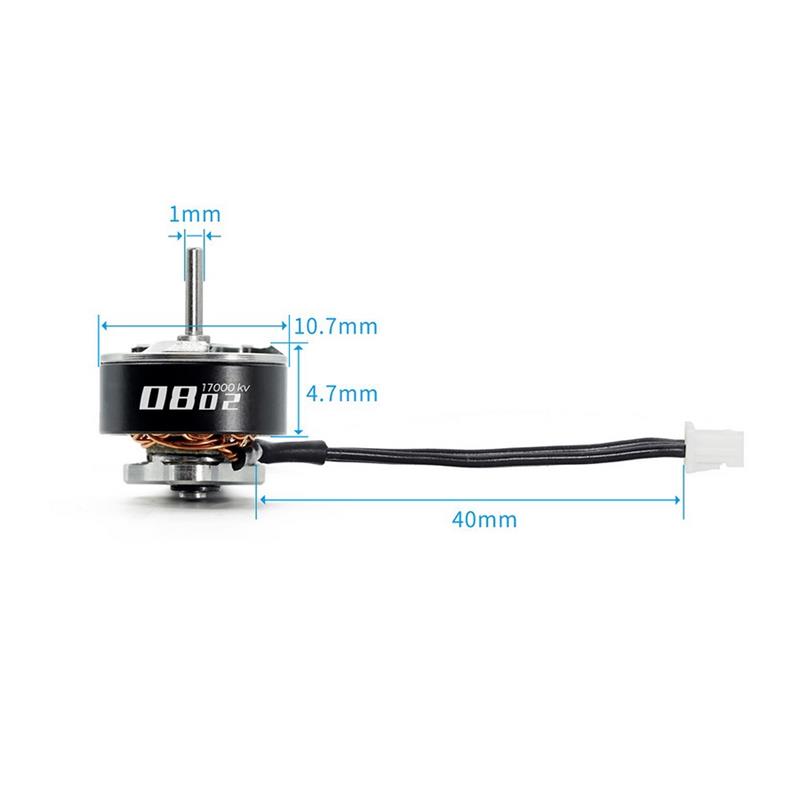

Size: ??10.7mm*14.4mm

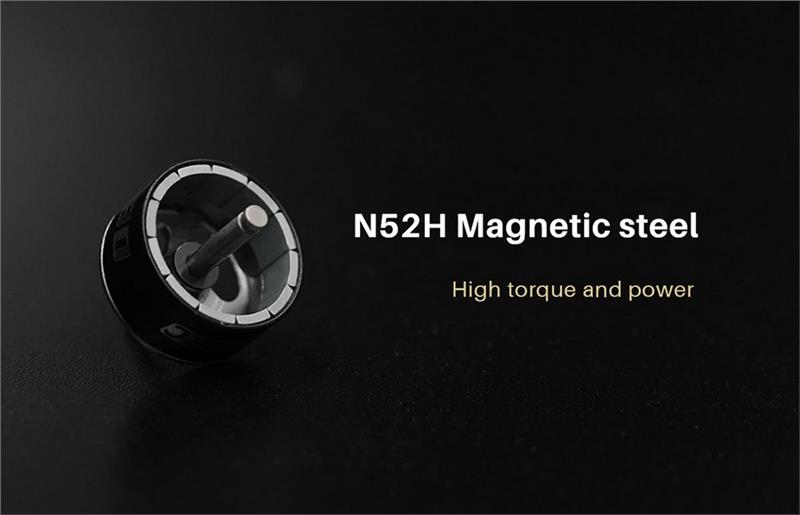

Rotor: N52H
Weight: 2.0g

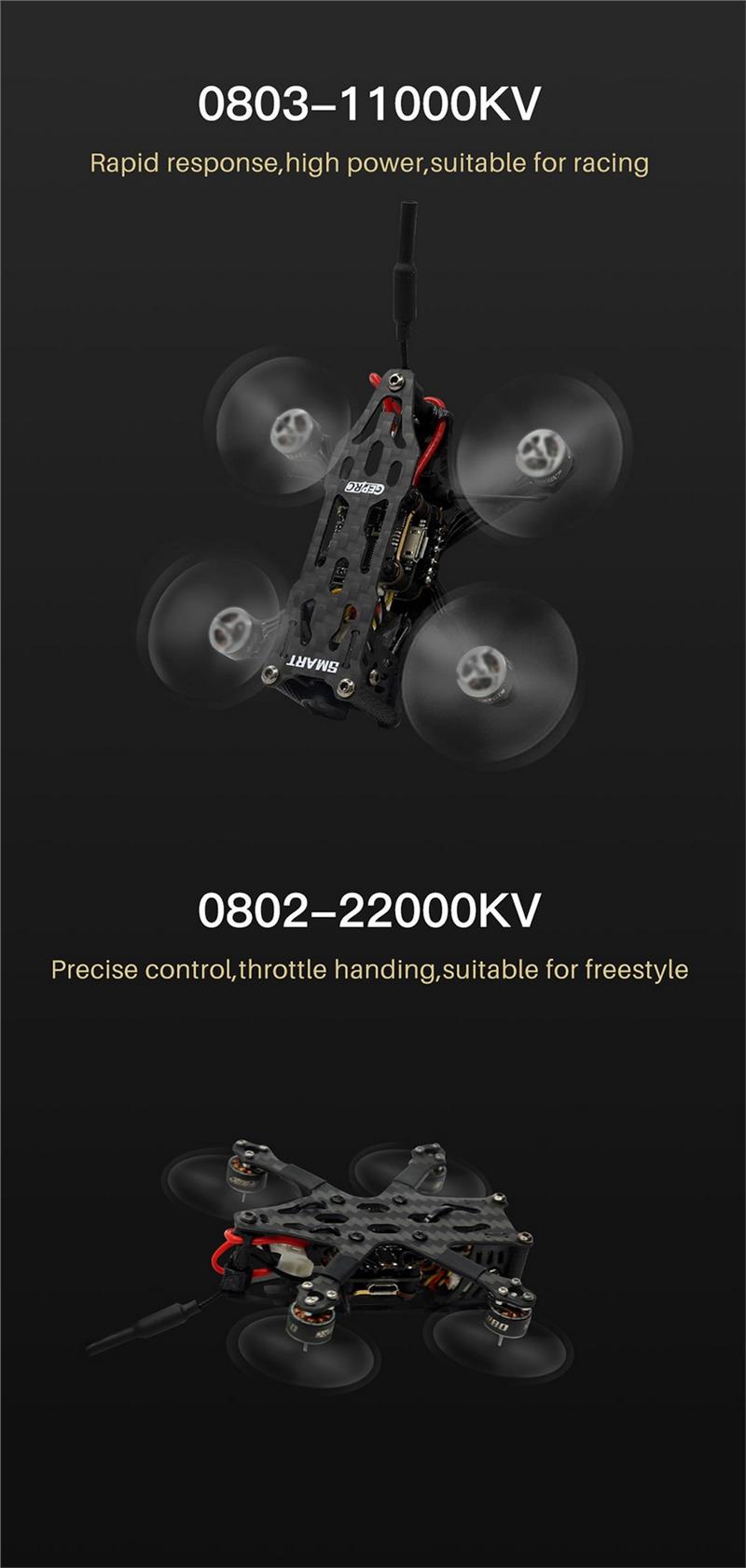

Target: Tiny & Whoop FPV
Recommended battery: 1S 380mAh-530mAh LiPo
KV: 17000KV
Maximum current: 5A
Iron core: 0.2mm silicon copper sheet

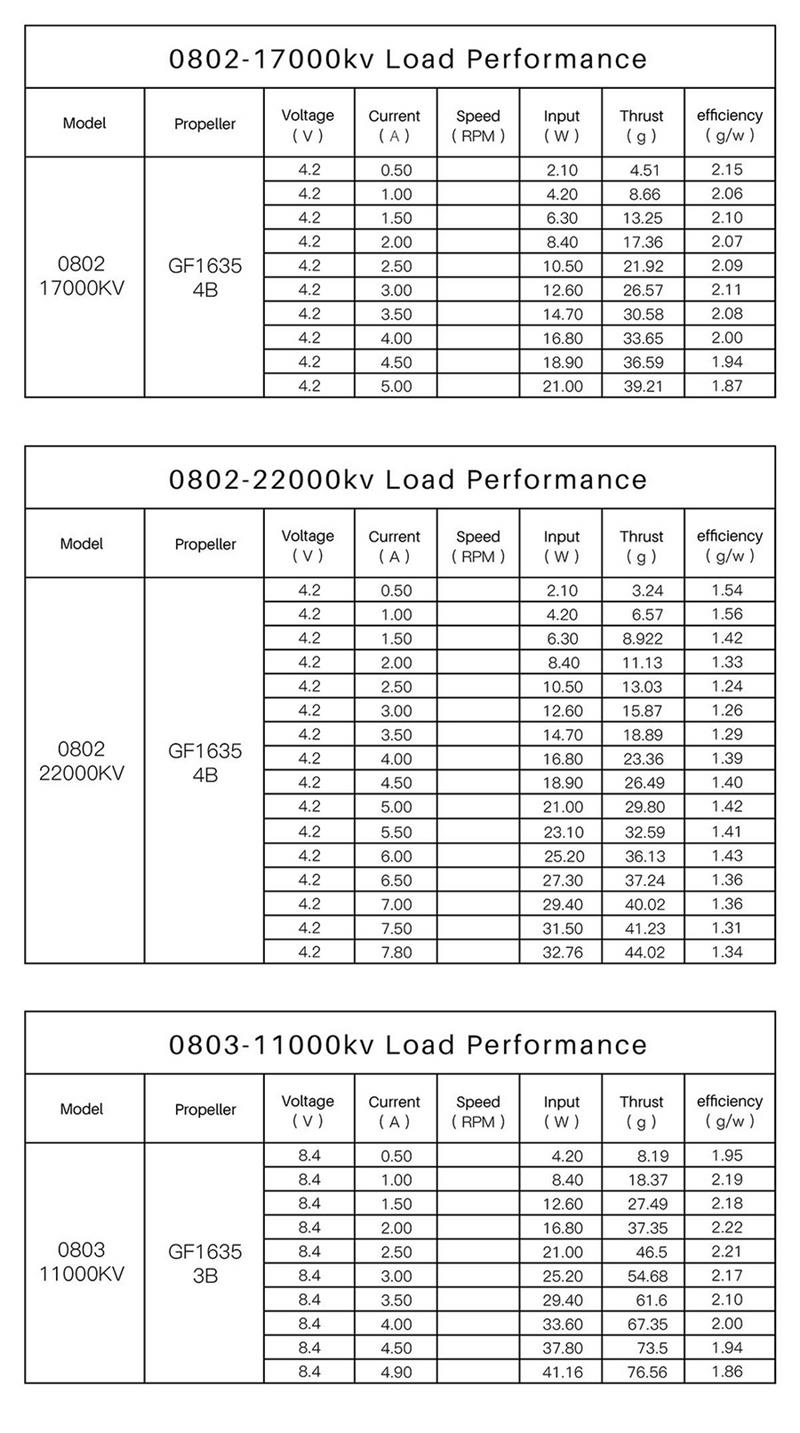

Propeller: GF-1635 4B
Bearing: 3×1.5*1mm bearing
Lead wire size: 30awg*40mm
No.of Stator slots: 9
ESC: 6A

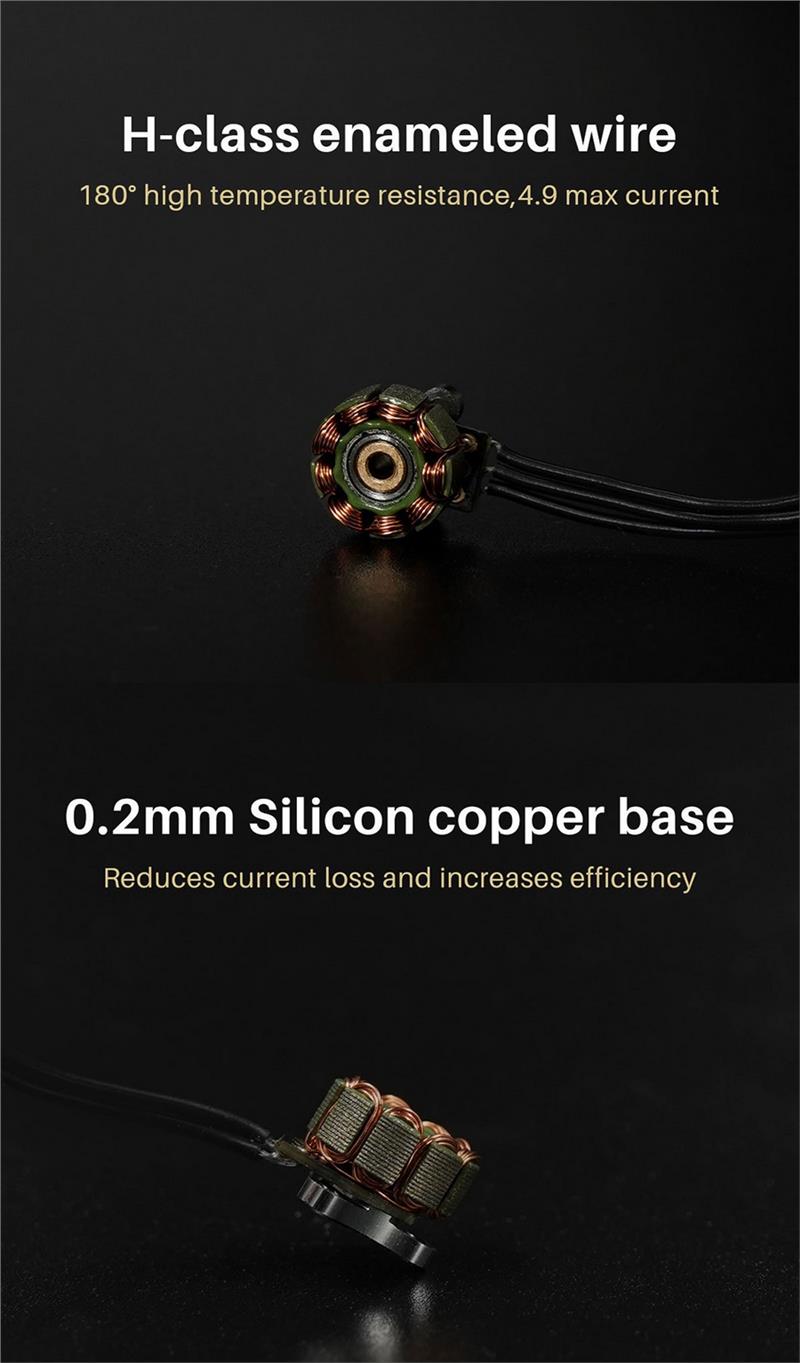

Magnet wire: Class H,180??C Enameled wire
Rated voltage:4.2(1S)

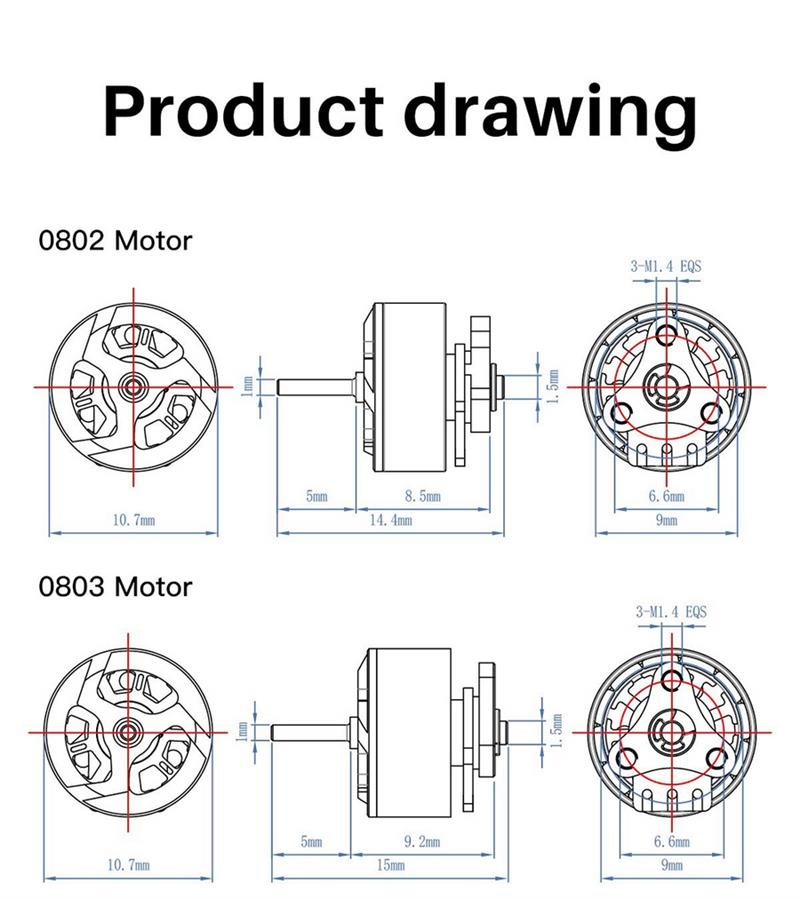

Motor mounting holes:3-M1.4-EQS-6.6
Screw:3*M1.4mm
KV: 22000KV
Maximum current: 7.8A
Iron core: 0.2mm silicon copper sheet
Propeller: GF-1635 4B
Bearing: 3×1.5*1mm bearing
Lead wire size: 30awg*40mm
No.of Stator slots: 9
ESC: 10A
Magnet wire: Class H,180??C Enameled wire
Rated voltage:4.2(1S)
Motor mounting holes:3-M1.4-EQS-6.6
Screw:3*M1.4mm
Feature:
High efficiency and smooth
Perfect fit for Tiny and Whoop FPV
Motor dynamic balance, stable operation

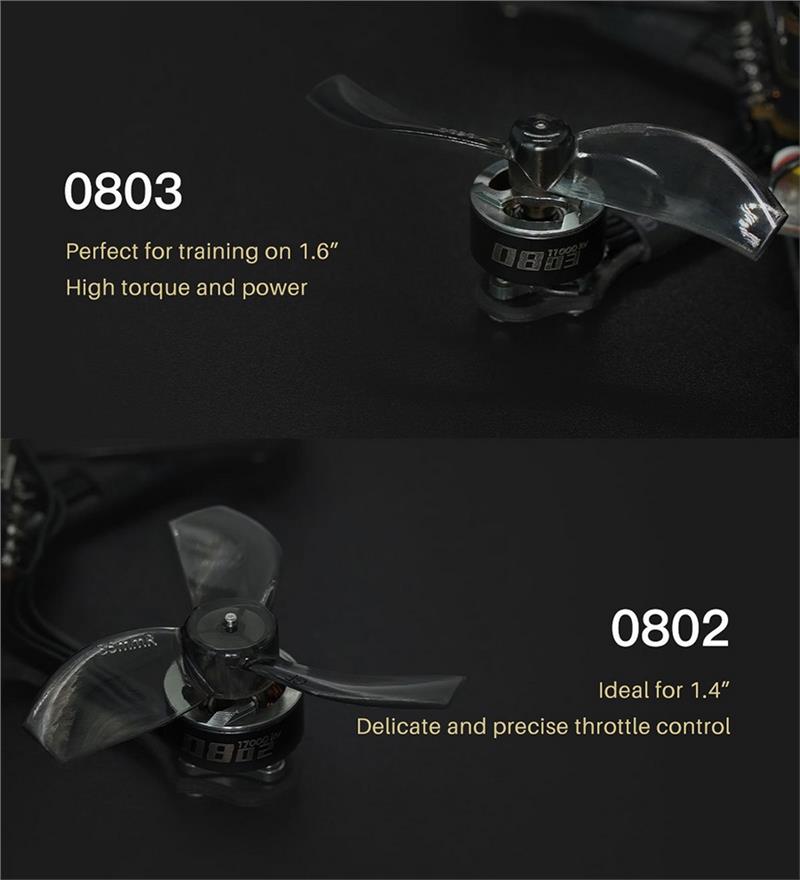

Suitable for 1.4inch&1.6inch Propellers
Package Included:
1 x SPEEDX2 0802 motor
1 x Spare screw set
