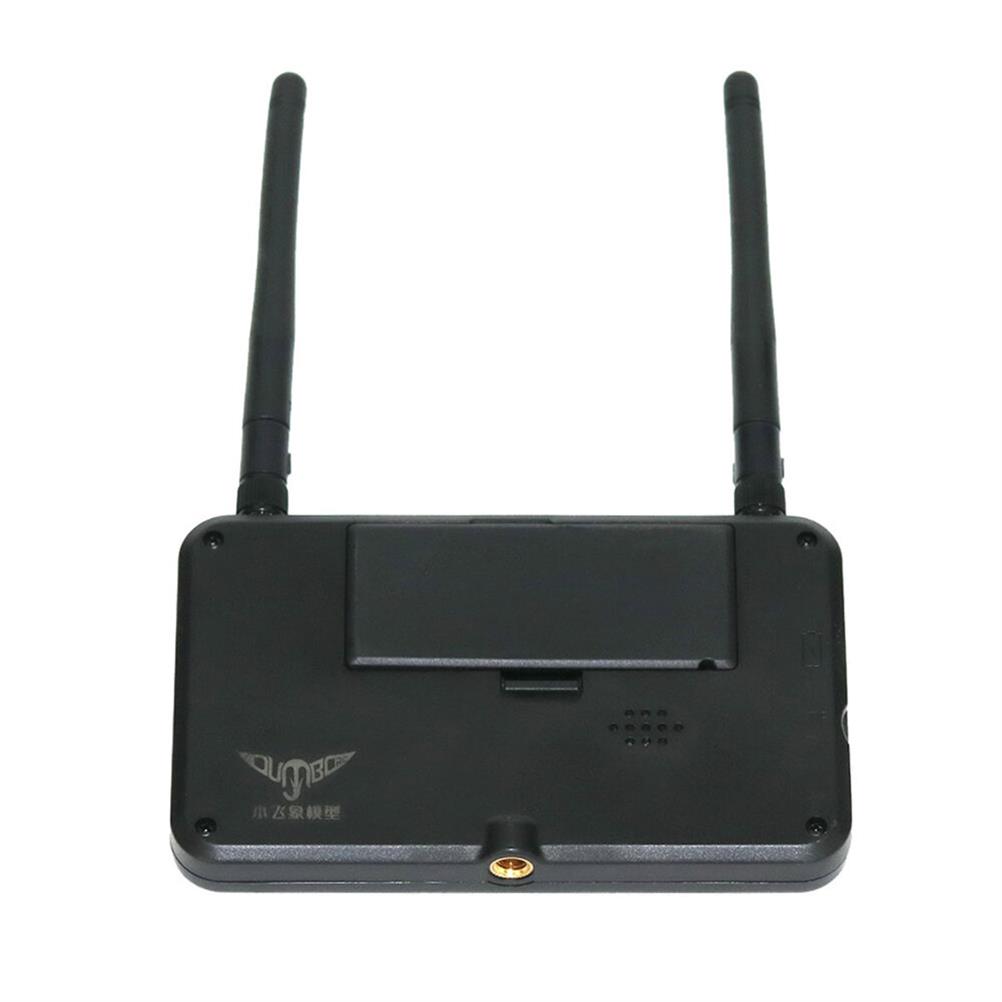

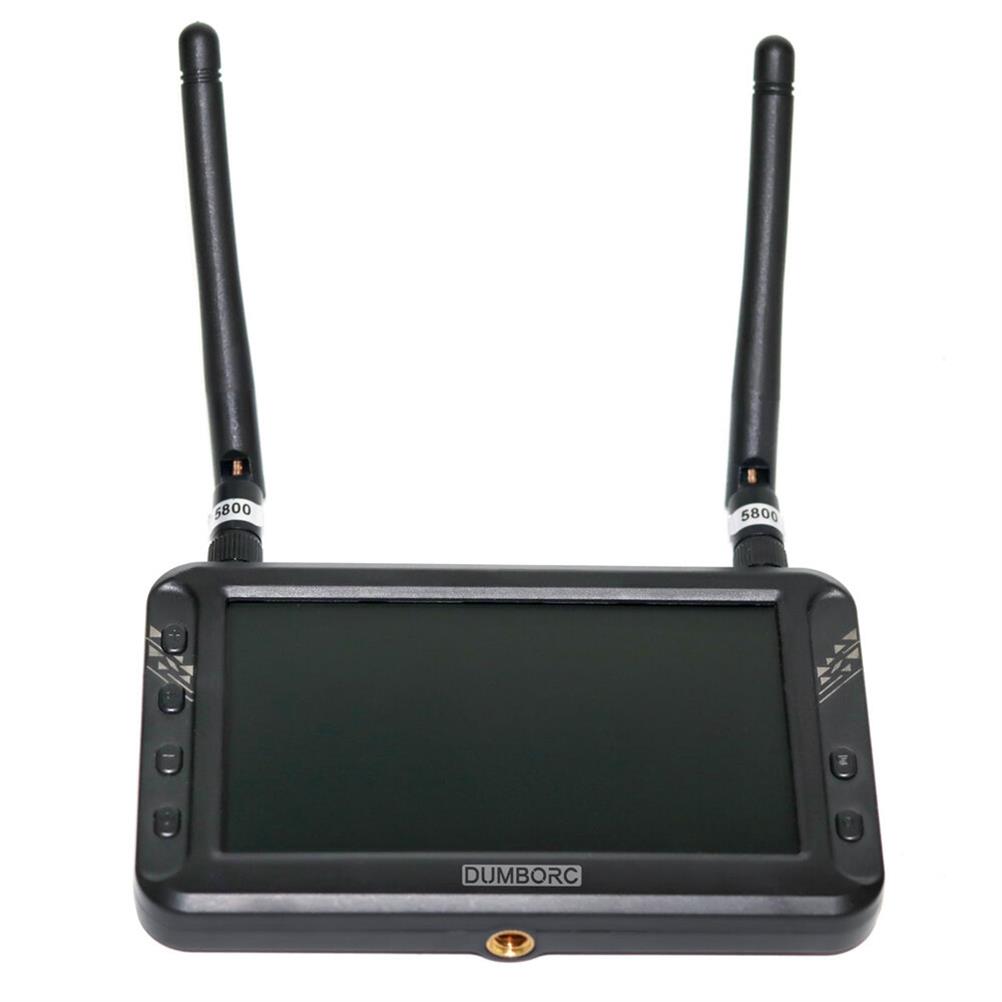

DumboRC EWRF7082VR 5.8GHz 48CH 200mW FPV Dual Antenna HD Image Transmission Display with Camera for RC Drone Car Boat Radio Transmitter
DumboRC EWRF7082VR 5.8GHz 48CH 200mW FPV Dual Antenna HD Image Transmission Display with Camera for RC Drone Car Boat Radio Transmitter
Description:
Brand Name: DumboRC
Item Name: Display with Camera Set
Weight:
Camera: 12g
Display: 274g
Display+Camera: 286g
Camera Size: 16.83 x 18.03 mm
Frequency: 5.8G
Channel: 48CH
Transmit power: 25mW/100mW/200mW/transmit off (PitMode)
Working voltage: DC3-5.2V (1S)
Working current (4.2V): 320mA(25mW)/400mA(100mW)/460mA(200mW)
Antenna: copper tube antenna
Features:
Can be returned to the display interface channel, channel group, frequency, power, voltage and other parameters
Image transmission parameters can be configured through SBUS, and parameters can be adjusted remotely (visual interface)
25mW/100mW/200mW and transmit off (PitMode) adjustable
Zero-interference power-on and channel switching without interfering with other users
Current (4.2V power supply, 200mW current 460mA)
3 LED lights, 1 button
The output power is stable, the frequency band is clean, and the power supply filter is strong, ensuring that the image has no snowflakes and no horizontal stripes under the maximum throttle.
The role of LED lights:
The red light is used to indicate the working status or the configured item category when the button is configured;
Blue is used to indicate the Pitmode status or the configured value when the button is configured;
When the green light is on, it means that the module enters the overheat protection state, and the output power of the module will decrease.
Two status indications:
Power-on status display
After the module is powered on, it will firstly display the current channel number, grouping and power value of the module.
After the working parameters are indicated, the module enters the working mode immediately.
Working mode status display
Normal launch working state: the red light is always on, and the blue light is also always on.
At this time, the transmit power of the module is the value set in 25/100/200mW.
Pitmode mode: The red light is always on, and the blue light is off. At this time, the transmission distance of the module is about 1-2 meters.
Button configuration instructions:
Working parameter configuration:
– After power-on, long press the button to adjust the channel frequency, channel grouping, and power cyclically.
– Long press to switch red light (configuration item), short press to switch blue light (configuration value), double press to switch PitMode
(change of blue light).
– Long press the button when the red light flashes once to enter the channel frequency configuration, then short press the button to switch the channel frequency (1-8), the blue light flashes once to indicate channel frequency 1, and the blue light flashes a few times to indicate the corresponding frequency the channel frequency;
– Press and hold the button again when the red light flashes twice to enter the channel grouping configuration. At this time, short press the button to switch the channel group
(A, B, C, D, E, F), the blue light flashes once to indicate channel group A. The number of blue light flashes increases each time, which is expressed as (B, CD, E, F) in turn.
– Press and hold the button again when the red light flashes three times to enter the power configuration. Short press the button to switch the power. The blue light flashes once for 25mw, twice for 100mw, and three times for 200mw.
– After adjusting the parameters, press the button for a long time, the red and blue lights will be on to enter the save mode, and then enter the normal working state (finally, you must press and hold the button to save the configured parameters, otherwise the module will not be able to exit the configuration state and will not be able to save the configured parameters ).
Pitmode toggle:
Under normal working conditions, quickly press the button twice to toggle the Pitmode mode on and off. When the red light is on and the blue light is off, it means entering the Pitmode mode. When the red and blue lights are long on, it means that the Pitmode mode is turned off and the normal power transmission state is entered.
Notice:
– Remember to leave space for the flow of wind when installing the image transmission to ensure heat dissipation;
Otherwise, the transmission power will be reduced or even the transmission will be turned off after the overheat protection is activated;
– It is recommended to screw on the antenna before powering on to extend the service life of the module;

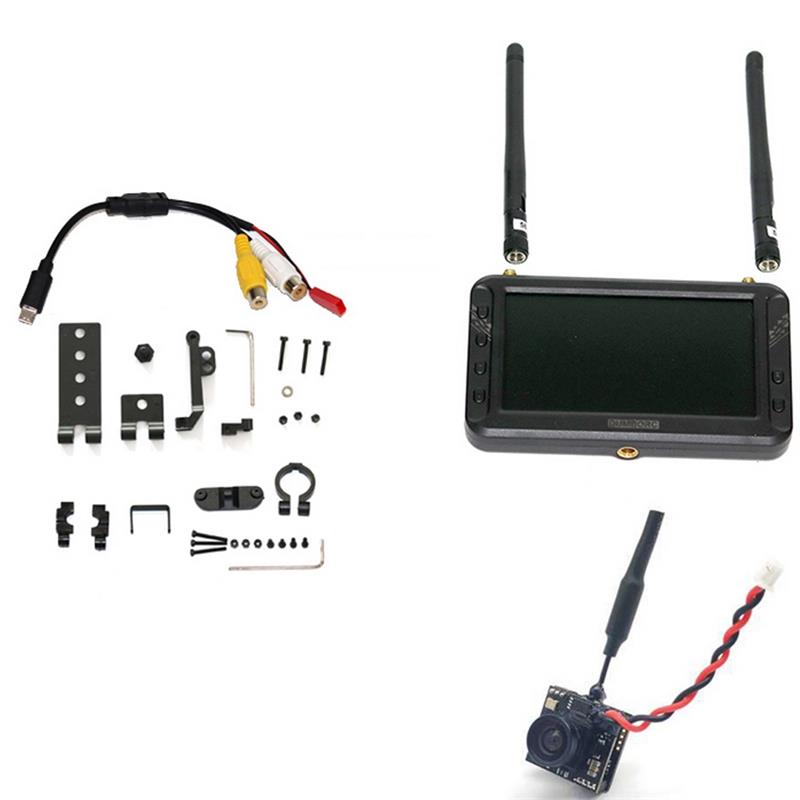

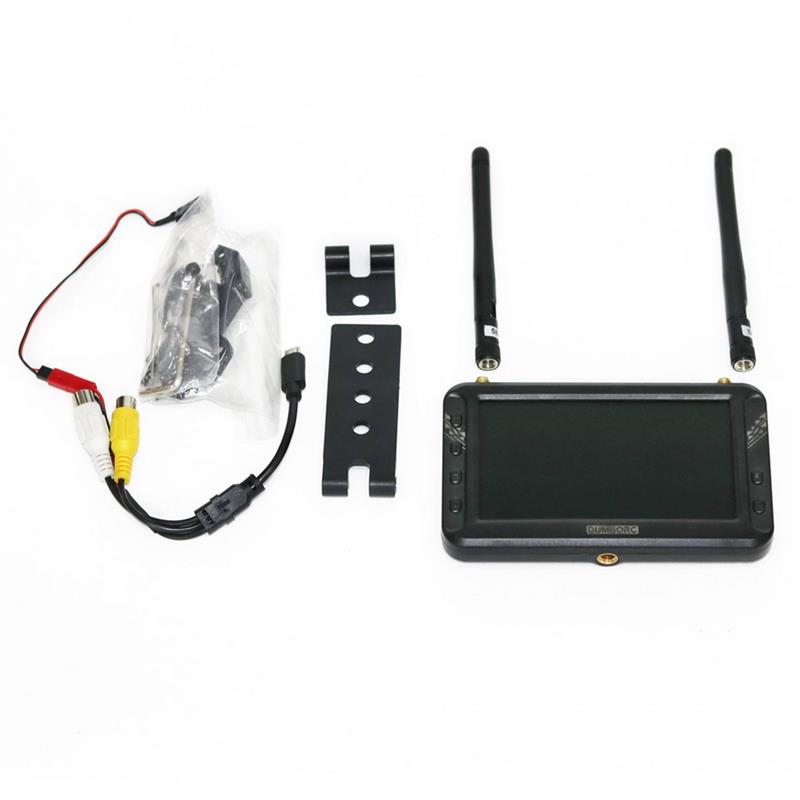

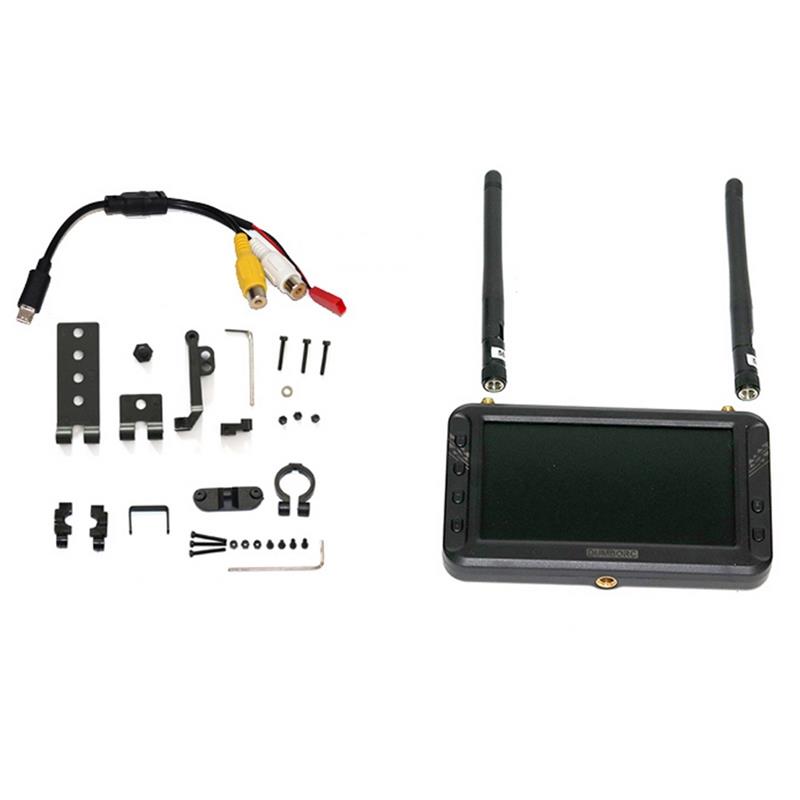

Package included: (Optional Version)

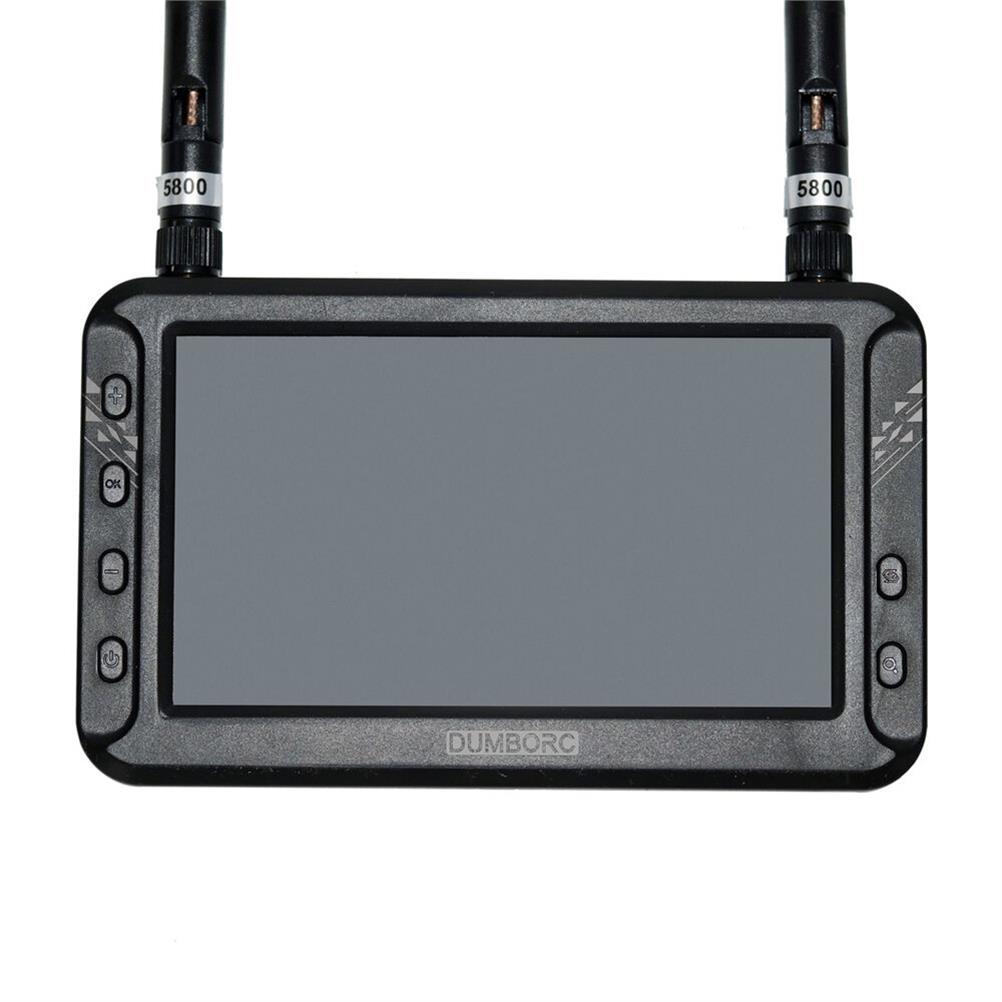

1 x Display
1 x Camera
2 x Antenna

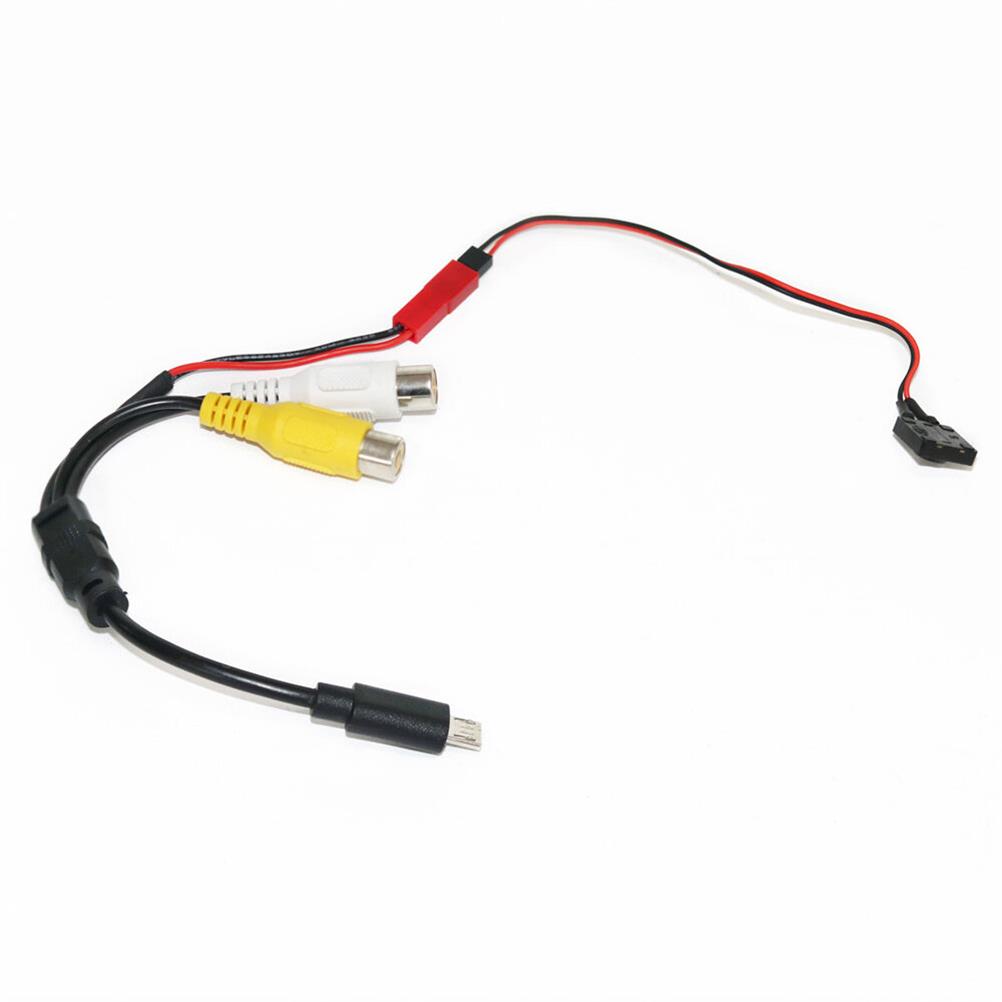

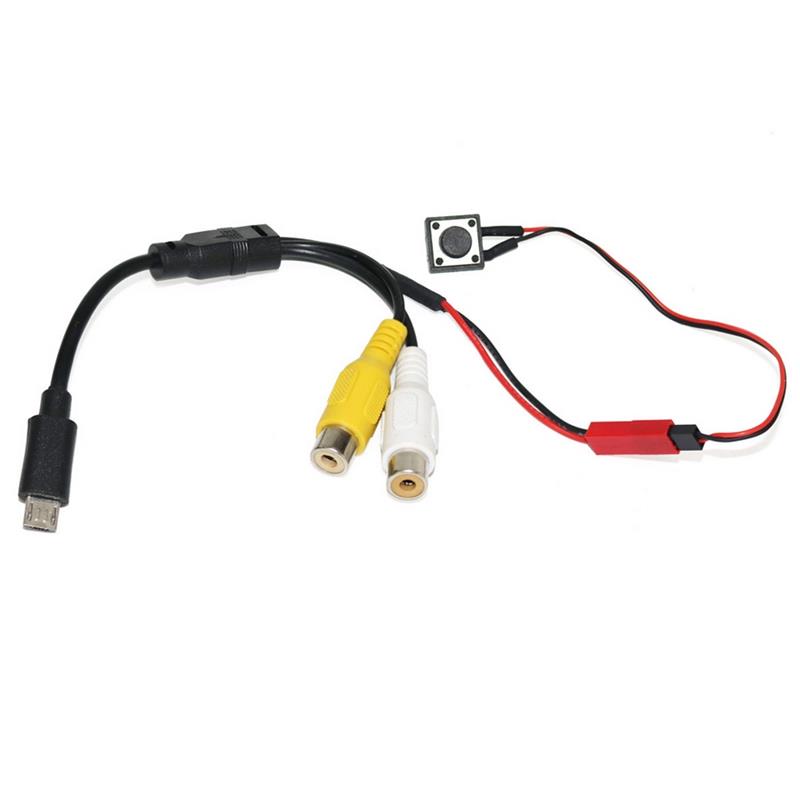

1 x Audio Video Cable
1 x Display Stand Set

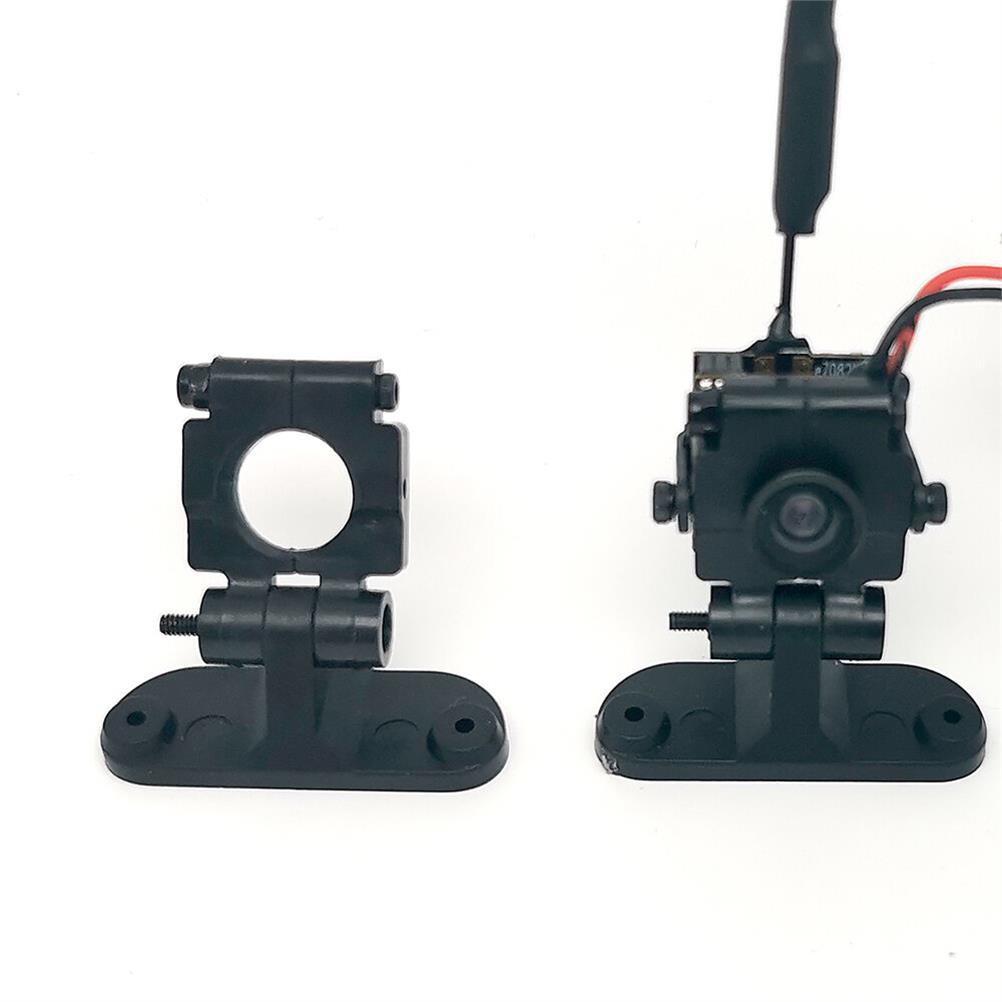

1 x Camera Bracket
