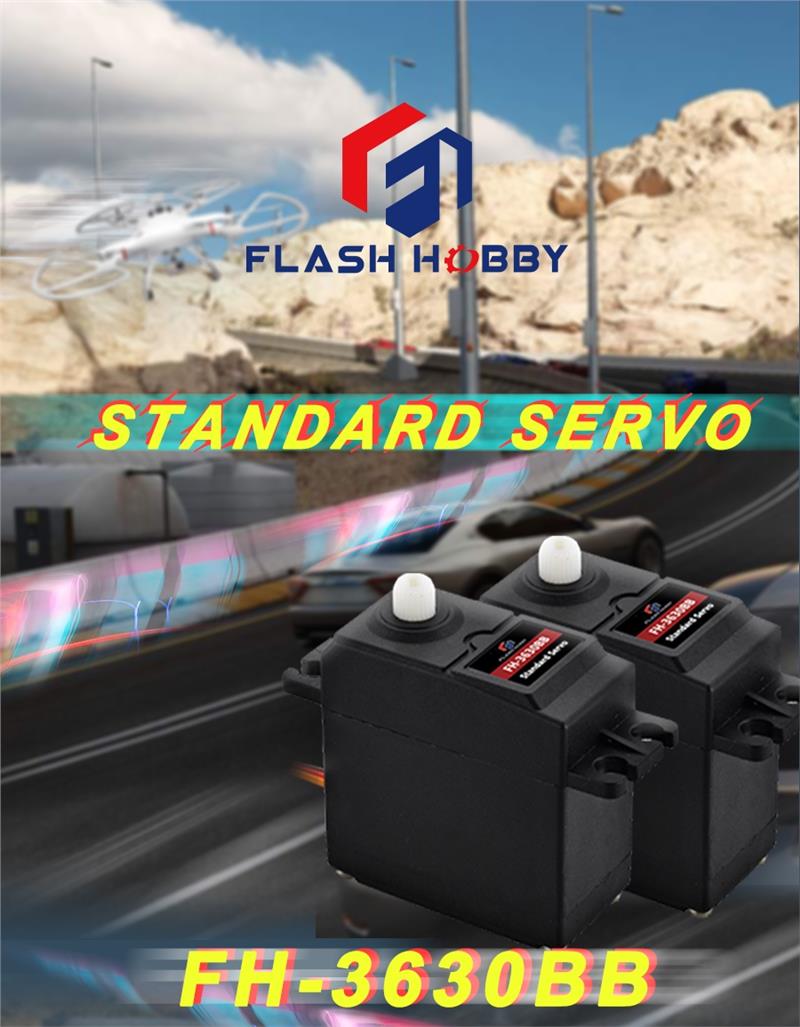

FlashHobby FH-3630BB 41g 3.6kg.cm Torque 4.8V-6V Plastic Gear Digital Servo 120 Degrees Rotation for RC Airplane
Specification:
Brand: FlashHobby
Item Name: FH-3630BB Servo
Gear: Plastic
Type: Carbon Brush Servo
Operation Voltage Range: 4.8V-6V
Torque / Speed: 3.0kg.cm/0.22sec4.8V, 3.6kg.cm/0.19sec/6V
Weight: 41g (Without Splined Horn)
Control System: Positive PWM Control 1500 usec Neutral
Circle: 15000 Times
Operation Temperature Range: -20??~+60/p>Ldle Current: 200mA/4.8V, 250mA/6.0V (at stopped)
Running Current: 1200mA/4.8V, 1300mA/6.0V (at no load)
Dead Band Width: 8 usec
Operation Travel: 60???10??
Direction: Re-clock Wise/ Pulse Travel 1500 to 1900 usec
Driver Type: FET Drive
Potentiometer Type: Indirect Drive
Demensions: 40.0*20.0*45.55mm
Ball Bearing: Double Ball Bearing
Gear Material: POM
Case Material: Nylon Plus Fiber
Connector Wire Length: 300mm
Connector Wire Gauge: 26AWG Heavy Duty(JR Universal)
Wire Info (Brown): Negative
Wire Info (Red): Positive
Wire Info (Orange): S Single
Package Included:
1 X FlashHobby FH-3630BB Digital Servo
1 X Accessories
