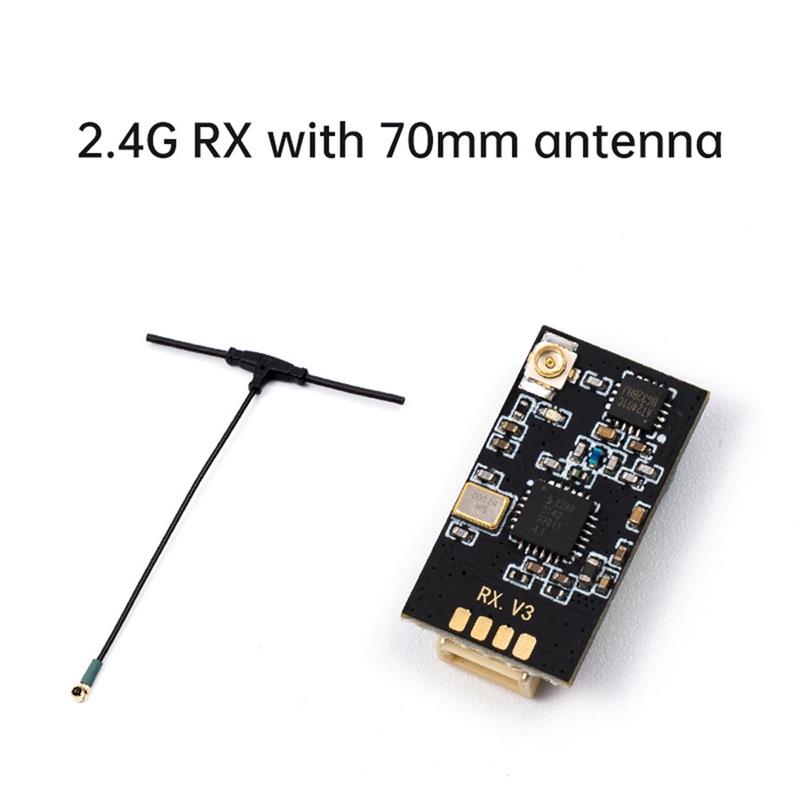

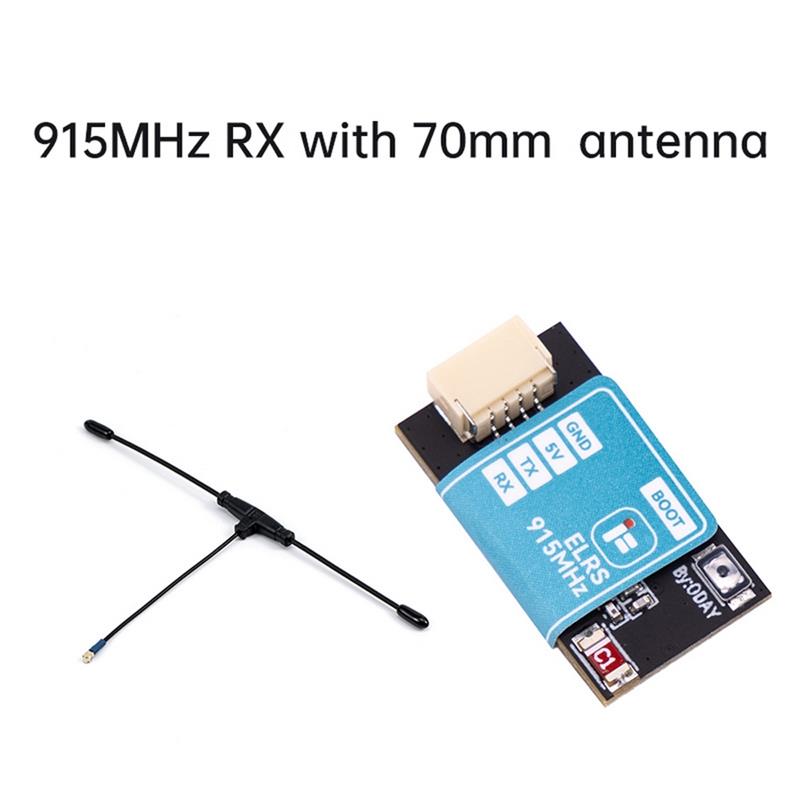

iFlight ExpressLRS ELRS 2.4GHz/868MHz/915MHz RX Open-Source Micro Receiver with Antenna for RC Racer Drone
iFlight ExpressLRS ELRS 2.4GHz/868MHz/915MHz RX Open-Source Micro Receiver with Antenna for RC Racer Drone
It’s finally here, the iFlight ELRS System! Extreme range and markets highest packet rate for lowest delay. Failsafes are Athing of the past.
ExpressLRS RX modules developed in close cooperation with the ExpressLRS Team with firmware targets already released.
Checkout the official ExpressLRS website: https://www.expresslrs.org
Official ExpressLRS Quick Start: https://www.expresslrs.org/2.0/quick-start/getting-started/
Description:
Brand: iFlight
Item: ELRS Receiver
Antenn Aconnector: IPEX(868MHz/915MHz/2.4G) / Molex 479480001 SMD antenna(2.4G w/SMD antenna) (Optional)
Firmware: ExpressLRS iFlight 900RX(868MHz/918MHz) / ExpressLRS iFlight 2400RX(2.4G) (Optional)
Frequency bands: 868MHz EU/915MHz FCC and 2.4GHz ISM
Telemetry Power: 17dbm (868/915MHz) / 20dbm.4Gbr>Dimension: 12*19.5mm
Connector: SH1.25 including 30mm wire (pre-soldered)
Interface: 5V GND RX TX
Input voltage: 5V
Protocol: CRSF
Weight: 1.2g
Features:
* Improved circuit design.
* Market’s lowest crystal frequency deviation (low packet loss, high frequency stability).
* High-performance at 2400MHz or 900MHz (915 / 868 bands available).
* Frequency tuned T-style dipole and SMD antenn Aoptions.
* Pre-soldered SH1.25 connector with 30mm wire length (Plug&Play for easy installation with iFlight FCs).
Performance and Compability
Make sure to install the antenn Aaway from conductive or magnetic components (carbon, metal, motors).
Flash the latest firmware and follow the ELRS Community for updates, tutorials or contributions.
Use iFlight ELRS receivers coupled with our transmitter for maximum performance! We’ve probably achieved market’s best crystal frequency stability at Avery low frequency deviation (only 11KHz in total at 51.99976MHz on the crystal). Please checkout this article for further information https://github.com/ExpressLRS/ExpressLRS/wiki/Crystal-Oscillator-(XO)-Frequency-Error
Package Included:
1 x ExpressLRS Receiver
1 x Antenna
