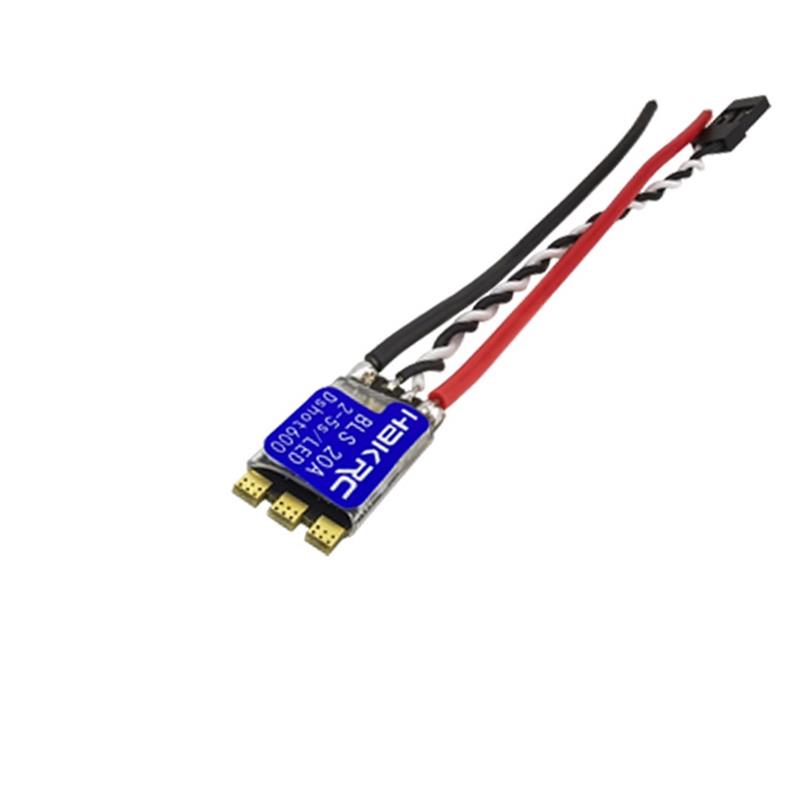

HAKRC BLHeli-S Bit 20A 2-5S ESC Built-in LED Support Dshot150/300/600PWM for FPV RC Drone
Brand name: HAKRC
Item name: 20A ESC built-in LED
Assistant software: BLHeliSuite
Figure version: BL16.7
Con. current: 20A
Net weight: 6g
Gross weight: 8g
Input voltage: 2-5S
LED: Built-in programmable LED external 5V power supply
EMF8BB21F16G main control chip, operating frequency up to 48MHz. Imported mosfet, three-in-one IC driver, imported high-quality high-frequency ceramic capacitors. In the high-end PCB production process, the pads are all metallized edging, so that you can avoid the pads from falling off during use; 3 ounces of copper thickness, 6-layer board, greatly reducing heat generation and higher efficiency.
Highly integrated, compact
Built-in galvanometer, with programmable LED lights, purchase new advanced SMT, after such a high degree of integration, the volume is about the size of a pencil, installation and wiring will become very simple.
Native support for BLHeli-S
Use BLHeli-S firmware, with powerful performance and rich functions; and it supports multiple ways to set ESC parameters, or upgrade the ESC firmware (such as through the throttle signal line, use other development boards, or use cleanflight or betaflight firmware for flight control Set up or upgrade).
Hardware PWM, Damped Light
The hardware PWM drives the motor with low noise and smoother throttle response. Damped Light technology, regenerative braking function, make the motor deceleration more sensitive and effective, and control more precise; Active freewheeling technology, let the battery recover power and extend the endurance time;
It not only supports ordinary PWM throttle signal mode, Oneshot125, Oneshot42 and Multshot ultra-high speed throttle signal, but also supports the latest DShot150/300/600 digital throttle, with strong anti-interference ability and rapid response. The input and output cables use soft silicone cables, which are very durable, resistant to high temperatures, and convenient for soldering.
1x 20 A ESC built-in LED
