Flipsky 200A ESC Dual FSESC6.7 with Aluminum Heatsink for Electric Surfboard RC Car Drone E-Bike

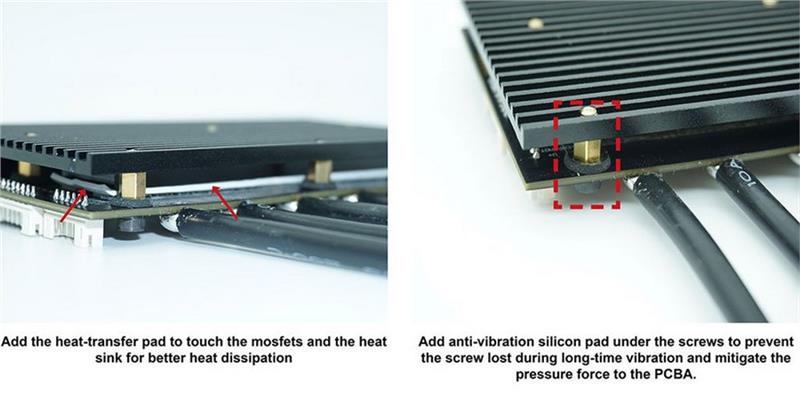

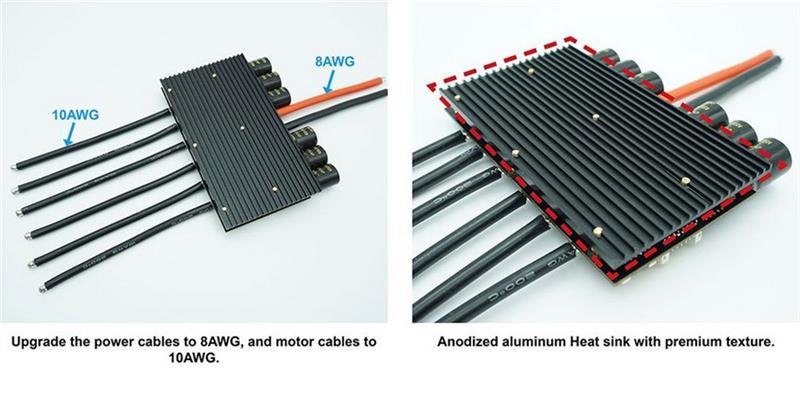

Description: Advanced Features: Dual ESC can reach continuous 200A big current, give your board strong power One PCBA board integrate two FSESC6 ??s function by internal CAN BUS circuit connection. The main and slave board connection can be switched On/Off Preserve Bluetooth module and RF module connections for both master and slave board Aluminum anodized Heat sink with fins design for better heat dissipation Size with heatsink: 128.5x91x21mm (L*W*D) PCB layers: 8layers, thickness: 3oz/layer, total 24 oz thickness Spec: Hardware:V 6.6 Eprm:150000 Firmware:Latest firmware version Voltage:8V – 60V (Safe for 3S to 12S LiPo) for the dual ESC Voltage spikes may not exceed 60V Current: Continuous 100A single, total 200A , Instantaneous current 400A per single, total 800A for system instantaneous current. values depend on the mounting and ambient temperature around the device 5V 1.5A output for external electronics for single 3.3V 1A output for external electronics for single Modes: DC, BLDC, FOC (sinusoidal) Supported sensors: ABI, HALL, AS5047 6 shunts in dual system. Each is measurable for the current. Recommend bullet connectors: 5.5mm Special Banana Connectors Motor wire: 10AWG Power cable: 8AWG Note: 1. Detected battery voltage tolerance: +/-0.6V 2. This version doens’t support setup for 4WD If you want to set up 4WD, get the dual fsesc6.6 plus based on vesc,not this one Wiring Diagram Please Click here Package Included: 1X Dual FSESC6.6 + Heatsink 2X Sensor Wires 1X Mirco USB 1X Manual
Additional information
Weight
0.369 kg
