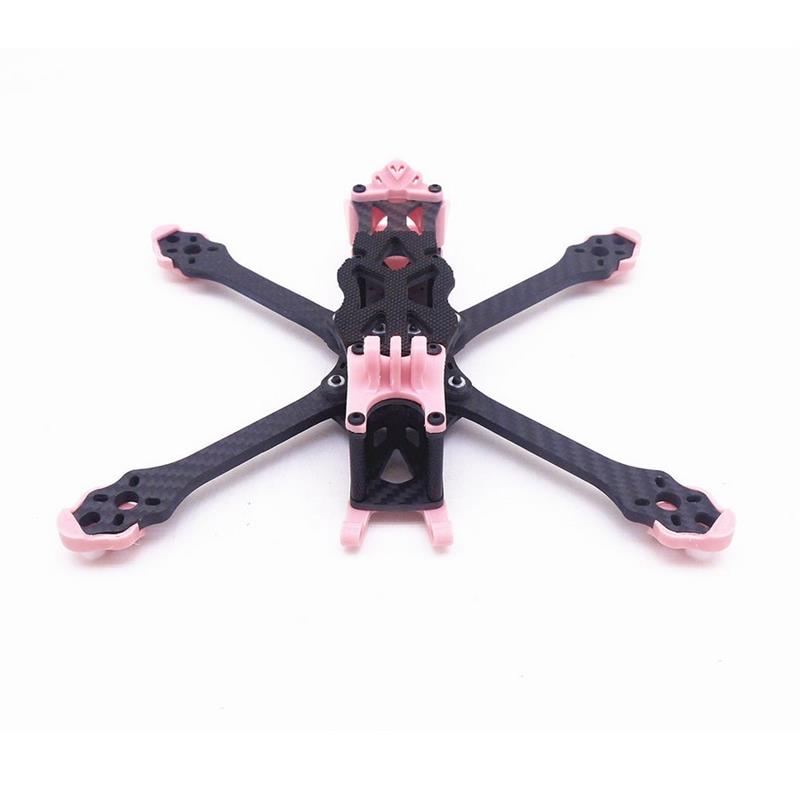

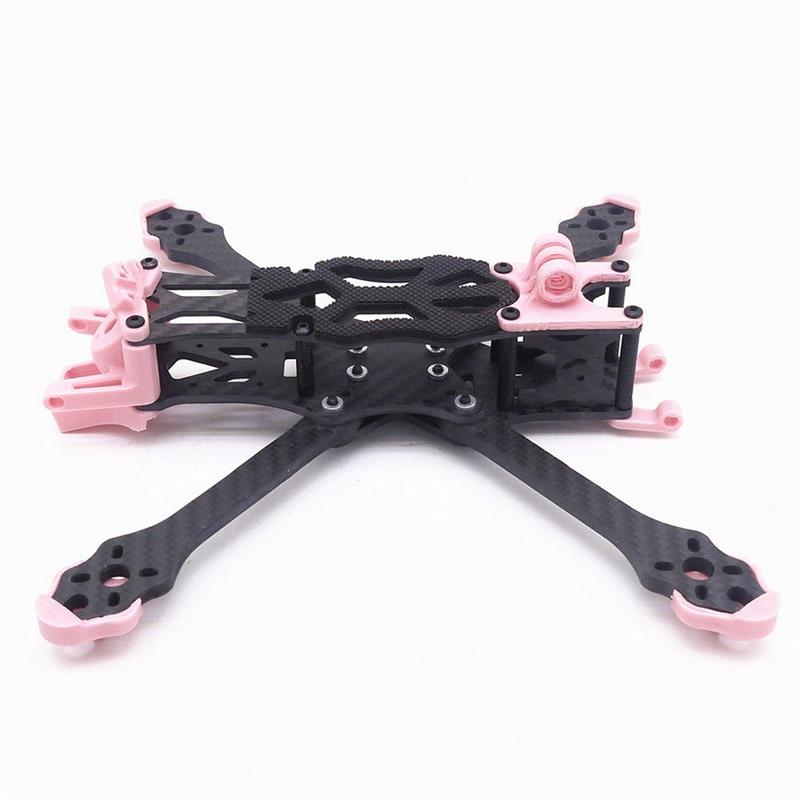

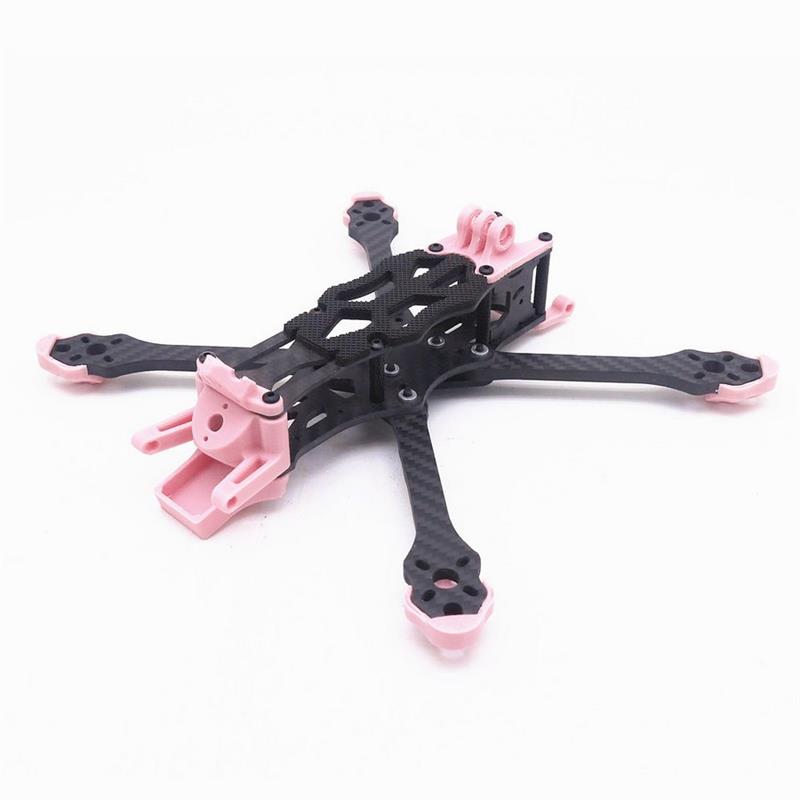

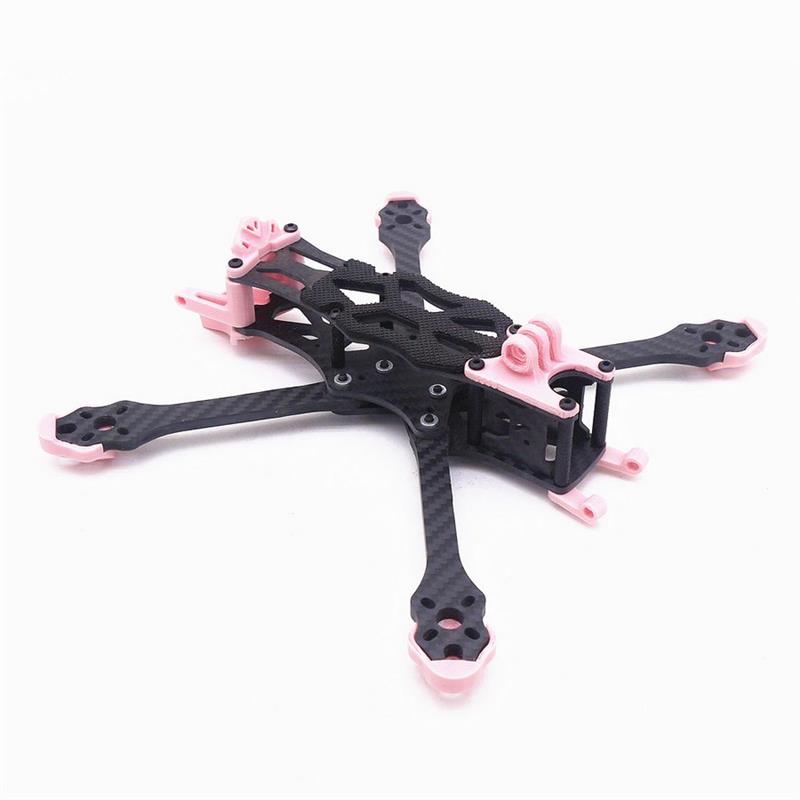

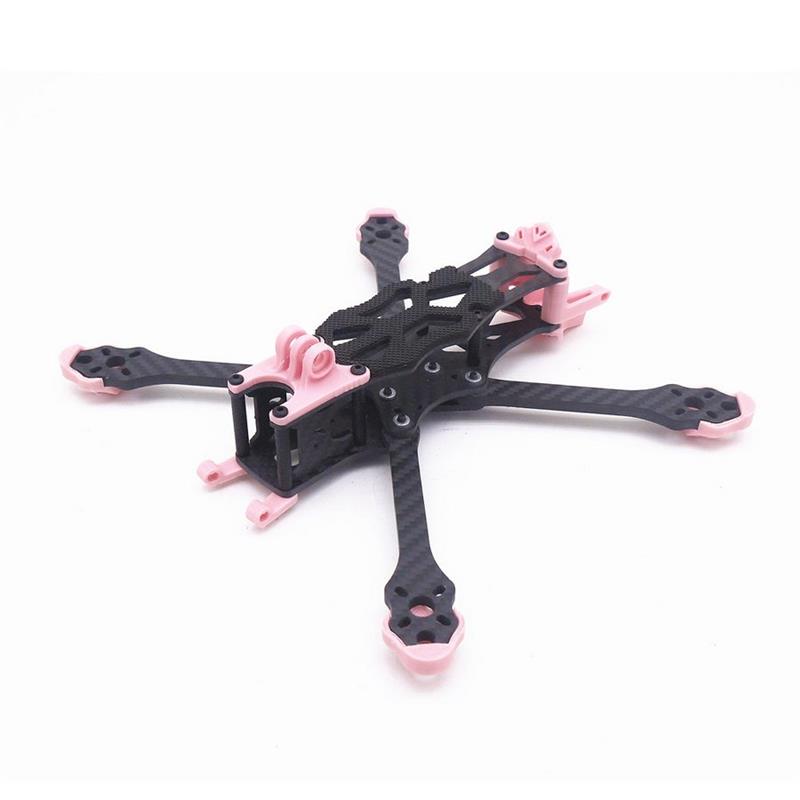

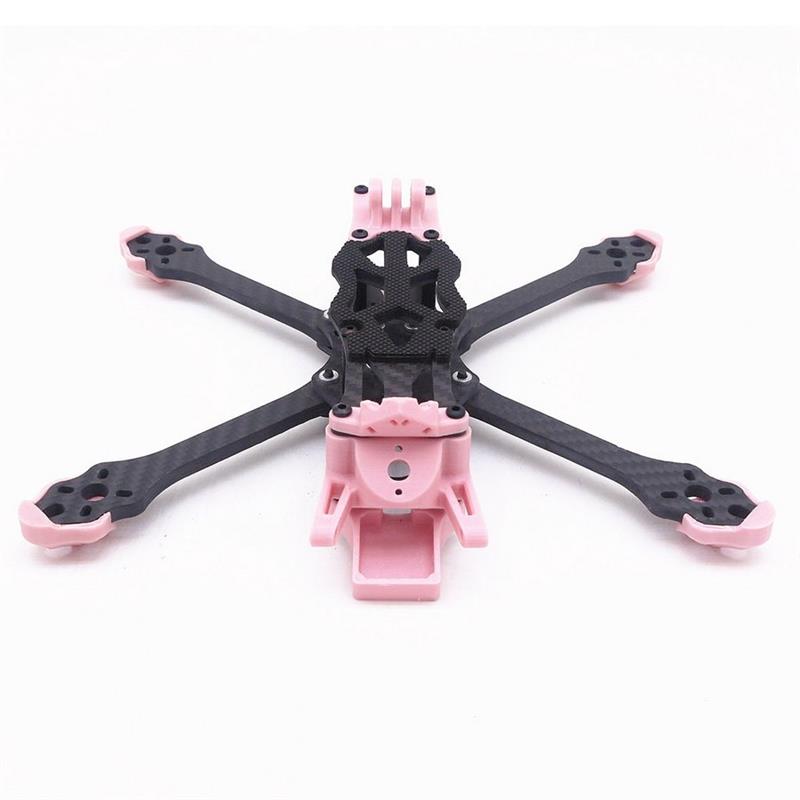

STEELE5 PLUS 220mm Wheelbase 5mm Arm Thickness Carbon Fiber X Type 5 Inch Frame Kit Support VISTA / DJI Air Unit for RC Drone FPV Racing

SKU: RC1905421

Original price was: $41.70.Current price is: $35.95.

-14%
(2 reviews)

Shipping fast worldwide

  • Dispatch:Usually will be shipped in 24 hours
  • Shipping Time:Expedited Express 6-8 business days
  • Secure Payment:Paypal,VISA,MasterCard
Guaranteed Safe Checkout

trust pay

STEELE5 PLUS 220mm Wheelbase 5mm Arm Thickness Carbon Fiber X Type 5 Inch Frame Kit Support VISTA / DJI Air Unit for RC Drone FPV Racing

Notice: The Color of 3D Printed parts will send randonly.
March 3rd, 2023.
Specification:
Model: Steele5 Plus
Item Name: 220mm Wheelbase 5 Inch Frame Kit
Wheelbase: 220mm
Structure: X-type split
Material: Carbon Fiber
Arm Plate Thickness: 5mm
Upper Plate Thickness: 2.0mm
Middle Plate Thickness: 2.0mm
Bottom Plate Thickness: 3.0mm
Splint: 3.0mm

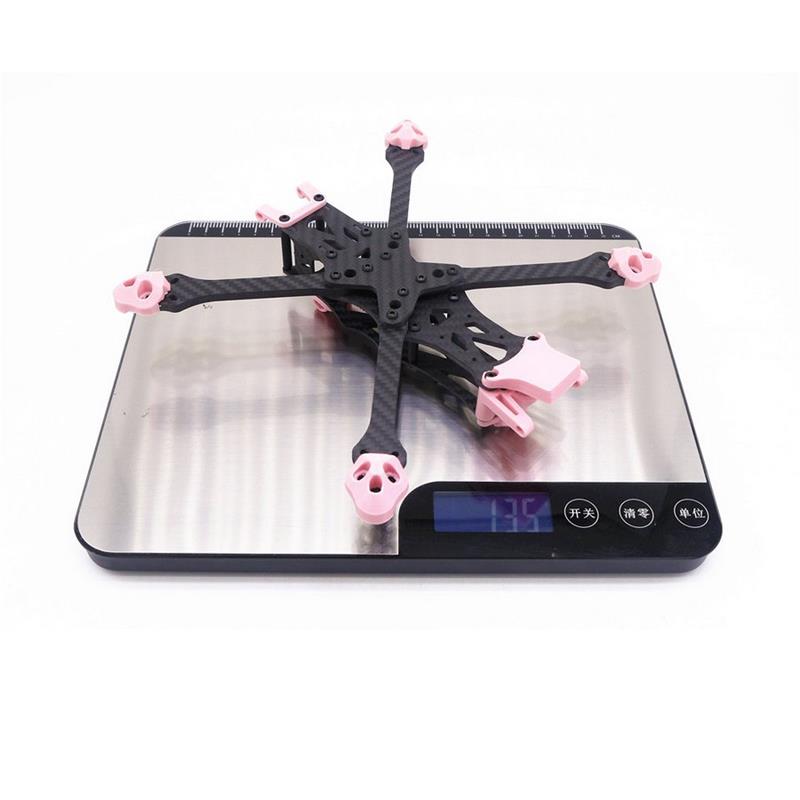

Weight: 141g
The hole position for the tail image transmission: 20x20mm (M2 hole position)
Camera installation width: 22mm
Internal height: about 20mm
Recommend Parts:
Propeller: 50XX 5 Inch Propeller
Flight Controller: 30.5×30.5mm F4 / F7 FC (M3 hole position)
Motor: Support 16mm (m3) and 19mm (m3) pitch motors, support 2204/2205 2207/2306/2405/2307/2308/2506 motors
Support the placement of DJI Air Unit, adapt to VISTA Air Unit
GPS: BN220
The fllowing Parts are Compatible: ( Not Included, need buy together)
FC & ESC: 30.5×30.5mm Flywoo Goku Versatile F745 Pro F7 FC & 50 A2-6S 4In1 ESC Stack
Brushless Motor: iFlight XING-E Pro 2207 2207 1800KV 3-6S Brushless Motor
Propeller: 2 Pairs HQProp DP5X4.5X3V3 Durable 5045 5×4.5 5 Inch 3-Blade Propeller
GPS: BN220 GPS Module
Lipo Battery: CNHL Black Series 1300mah 22.2V 6S 100C Lipo Battery XT60 Plug
Package Included:
1x Steele5 Plus 220mm Wheelbase Frame Kit

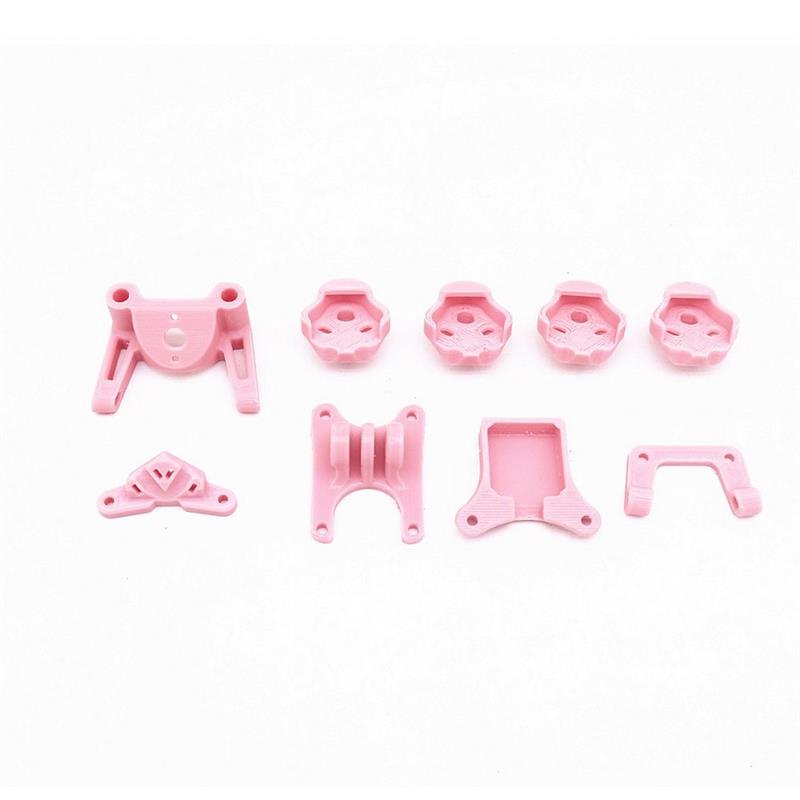

1x 3D Printed Parts
