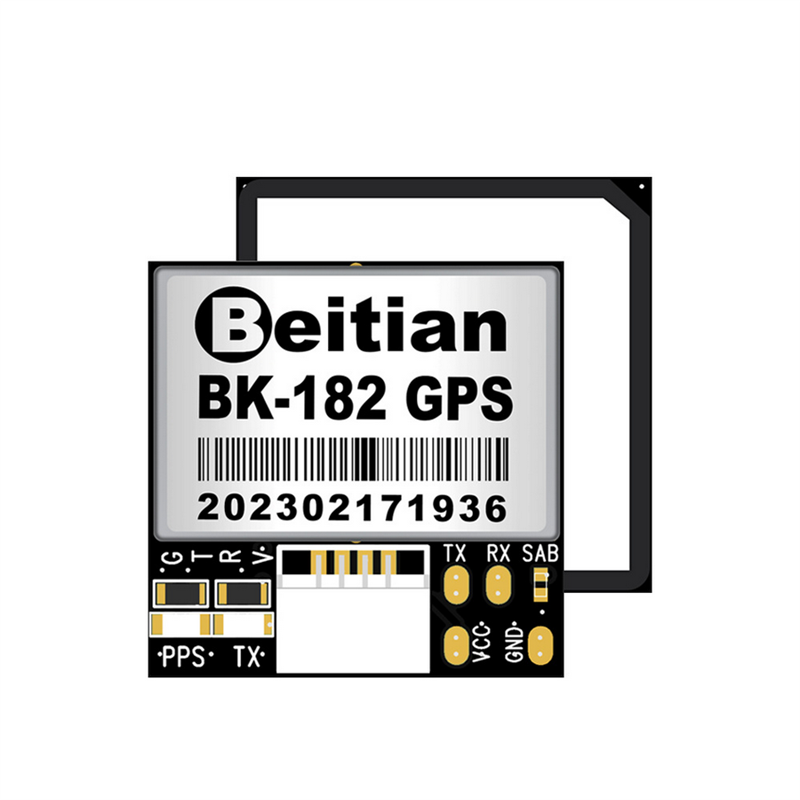

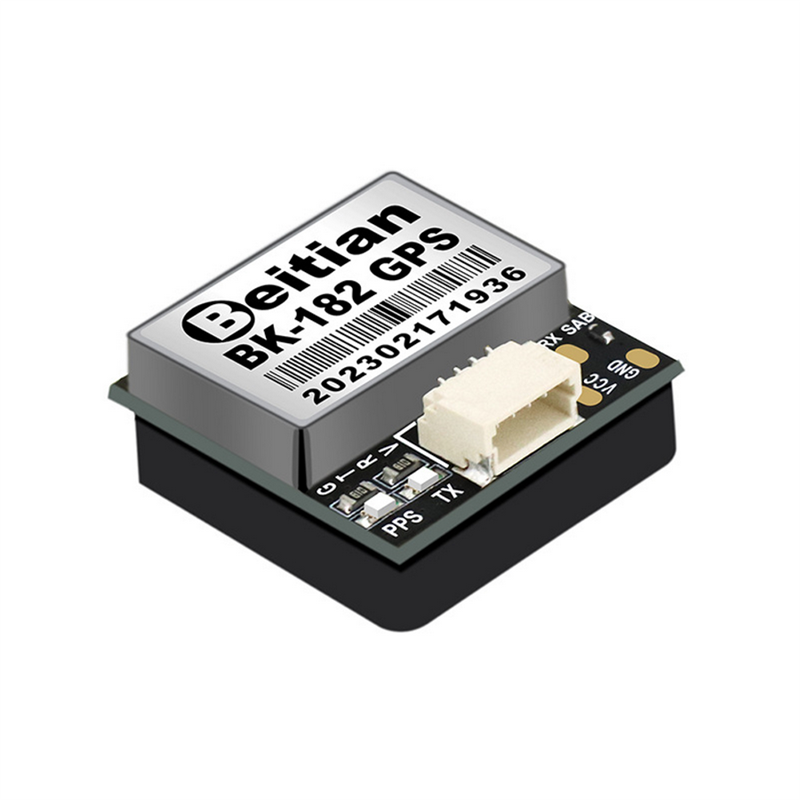

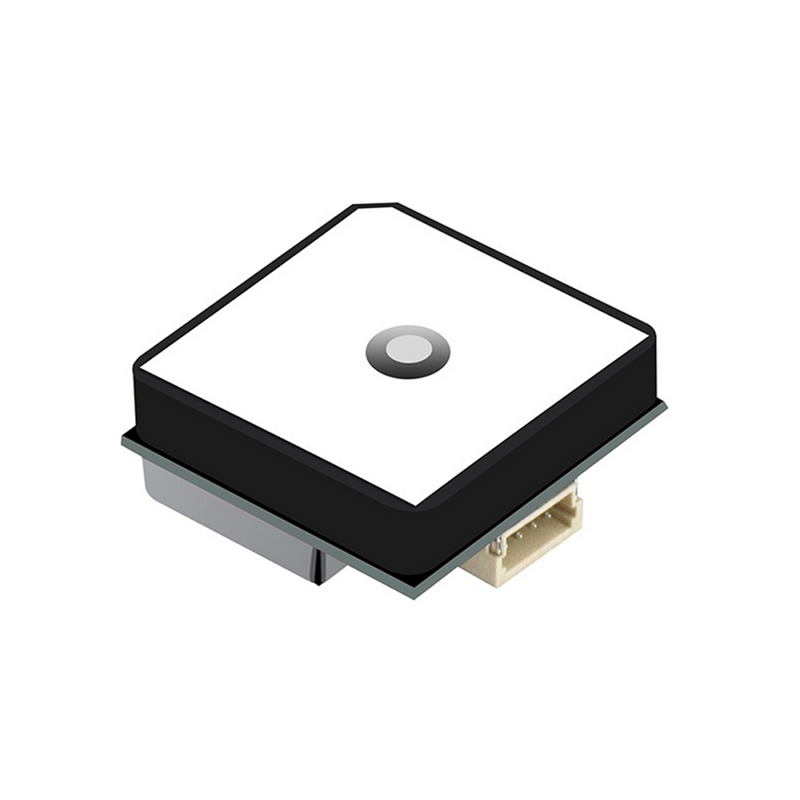

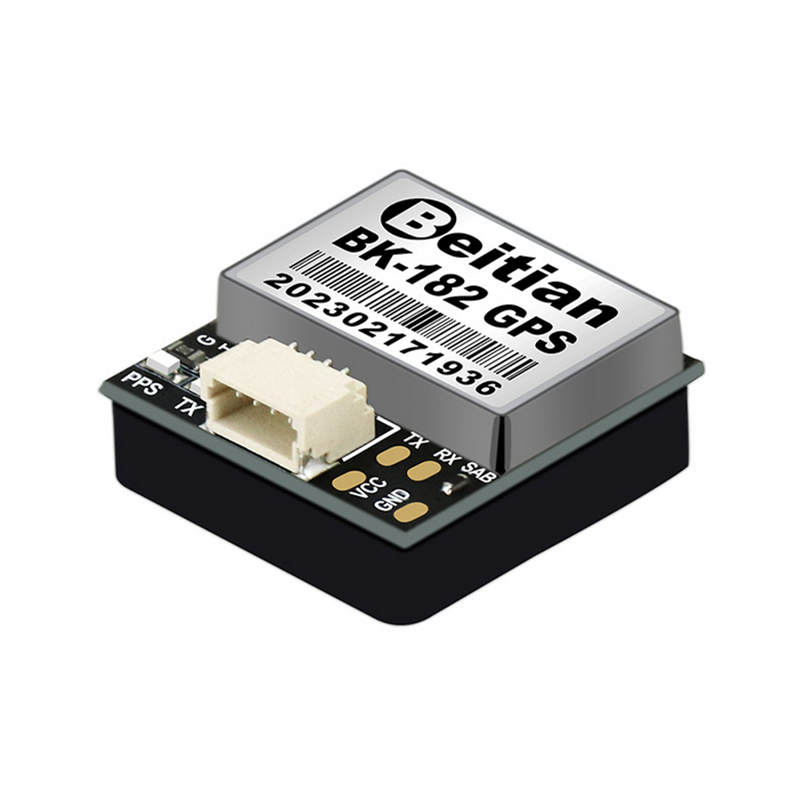

Beitian BK-182 GPS Module With Antenna NMEA UBX Dual Protocol M9140 Chip Ultra-low Power Drone UAV GNSS Receiver Module for FPV Return Rescue Racing Drone RC Airplane Compatible F4 F7 Flight Controller
Specifications:
Brand Name: Beitian
Item Name: BK-182
Chip: M9140-KB
Frequency: GPS L1 C/A, QZSS L1 C/A/S,GLONASS L10F, BDS B1I, Galileo E1B/C, SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
Working Mode: GPS+GLONASS+Galileo+QZSS+SBAS
Auxiliary System: SBAS, QZSS
Channel: 92 searching channel
Tracking Sensitivity: -167dBm
Reacquisition Sensitivity: -160dBm
Cold Start Sensitivity: -148dBm
Hot Start Sensitivity: -159dBm
Position Horizontal Accuracy: 1.5 m CEP with SBAS
Speed Accuracy: 0.05m/s
Dynamic Heading Accuracy: 0.3 deg
1PPS Time Accuracy: RMS 30ns, 99% 60ns
Cold Start Acquisition Time: 24s
Hot Start Acquisition Time: 2s
Auxiliary Start Acquisition Time: 2s
Dat AOutput Support Rate: 4800bps to 921600bps, Default 38400bps
Dat AOutput Level: TTL Level
Dat AOutput Protocol: NMEA, UBX
Dat AOutput NME AMessage: RMC, VTG, GGA, GSA, GSV, GLL
Dat AOutput Update Rate: 0.25Hz-25Hz, Default 1Hz
FLASH: With FLASH. Configuration can be changed. No loss due to power outage.
Dat AOutput Second Pulse: 0.25Hz-10MHz can be configured, the default period is 1s, and the high level lasts for 100ms
Operational Altitude Limits: 80000m
Operational Speed Limits: <500m/s
Operational Acceleration Limits: <4g
Power Consumption of VCC: DC Voltage 3.6V-5.5V, Typical: 5.0V
Power Consumption of Current: Capture 25mA/5.0V

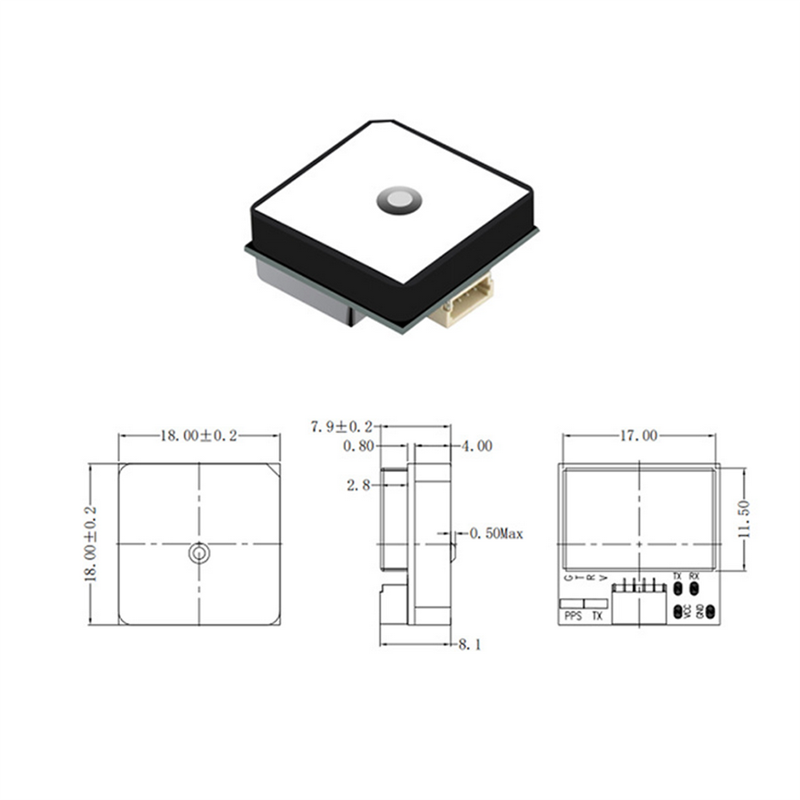

Dimension: 18mm*18mm*8.1mm
Weight: 8.5g
Connector: 1.0mm spacing 4pin
Compass: No
Operating Temp: -40 ??C ~ +85??C
Storage Temp: -40??C ~ +105??C
TX LED: Blue. The blue light flashes when powered on, indicating data output.
PPS LED: Red. PPS LED not bright when GPS not fixed, flashing when fixed.

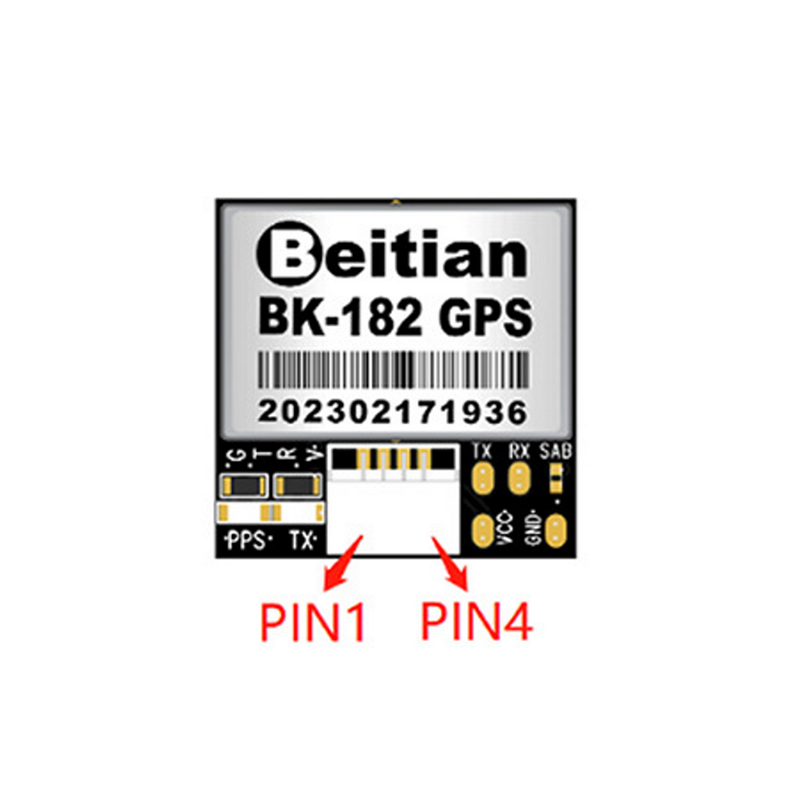

Pin Description:
PIN | PIN Name | I/O | Description | Characteristic |
1 | GND | G | Ground | Ground |
2 | TX | O | UART communication interface, TTL level | GPS data output pin |
3 | RX | I | UART communication interface, TTL level | GPS data input pin |
4 | VCC | I | Main power supply, DC input | DC 3.6V – 5.5V, Typical: 5.0V |
Package Included:
1x Beitian BK-182 GPS Module
