Holybro H-RTK Unicore UM982 Dual Antenna GPS Module Built-in Compass High-precision Positioning for FPV Racing Drone RC Helicopter Airplane Quadcopter
Overview
The Holybro UM982 Dual Antenn ARTK GPS provides high-precision positioning information and is capable of generating non-magnetometer moving baseline yaw determinations for autopilots with one single GPS module.
One of the best applications of this GPS is to provide compass-less YAW information to the autopilot (commonly called GPS Heading or Moving Baseline Yaw). Using this GPS as Ayaw source prevents magnetic interference from the vehicle motors and electrical systems and any environmental interference sources, such as metallic structures or equipment, that can cause incorrect yaw reports to the autopilot.
Ths works even if the GPSs are not receiving RTCM dat Afrom Afixed RTK station or NTRIP server. The device is based on the Unicore UM982 NME AGNSS module and supports RTK positioning adjustment for centimeter-level accuracy, GPS/GLONASS,Beidou, Galileo, and QZSS global positioning systems.
It also includes Amagnetometer, LED, and safety switch button. It also serves as an RTK-corrected vehicle GPS, with or without moving baseline yaw determination, and as Abase station GPS for sending RTCM dat Ato Aground control station to provide an RTK source for the vehicle vi Atelemetry.
Features
Dual antennas allow Moving Baseline Yaw (GPS Heading) with just one module
Can replace the traditional compass/magnetometer
Perfect for system/environment with high magnetic interference
Excellent RTK performance
Specifications:
Brand: Holybro
Model: UM982
| Application: | Rover Moving Baseline Rover Base Station (Recommend using H-RTK F9P-Base as base station) |
| Compass | IST8310 |
| GNSS: | BDS B1I/B2I/B3I GPS L1C/A/L2P (Y)/L2C/L5 GLONASS L1/L2 Galileo E1/E5a/E5b QZSS L1/L2/L5 |
| Antennas Peak Gain (MAX): | 2dBi |
| LNA Gain (typical): | 33??2dB |
| Time-TO-First Fix | Cold start: 30s Hot start: 5s |
| RTK-SurveyIn-Time: | minute @2.0mCEP |
| Data and Update Rate: | 20 Hz Positioning & Heading 20 Hz Raw Data observation |

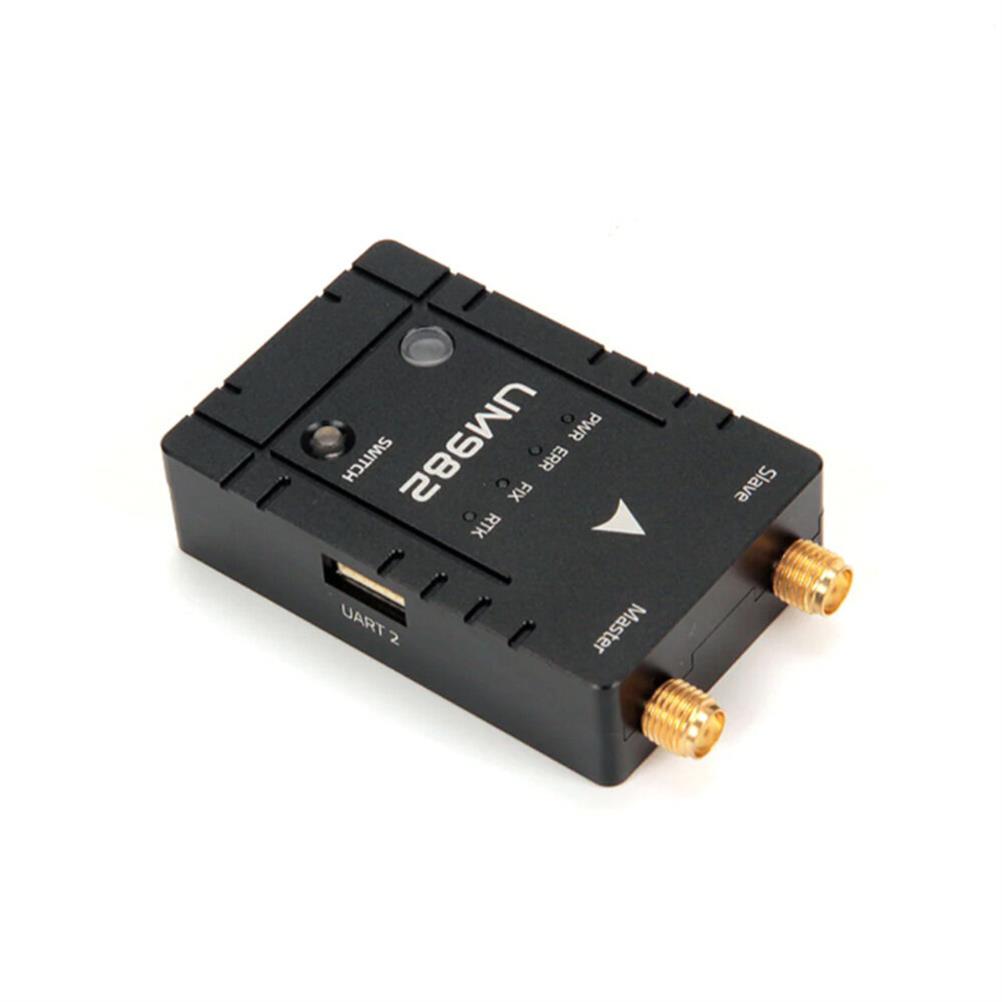

| Port: | Port 1: GH1.25 10-pin Port 2: USB Type-c Port 3: UART 2 (GH1.25 6pin) |
| Cable Length: | GH 10P: 150mm GH 10P: 400mm GH 10P to 6P: 300mm |
| Antenna Connection Type: | Board: SMA female Antenna: SMA male |
| Baud rate: (Adjustable): | 230400 5Hz default |
| Working voltage: | 4.75V~5.25V |
| Current Consumption: | ~350mA |
| Dimensions: | Board: 34.8*58.9*14.4mm Antenna Diameter: 27.5mm Antenna height: 59mm |

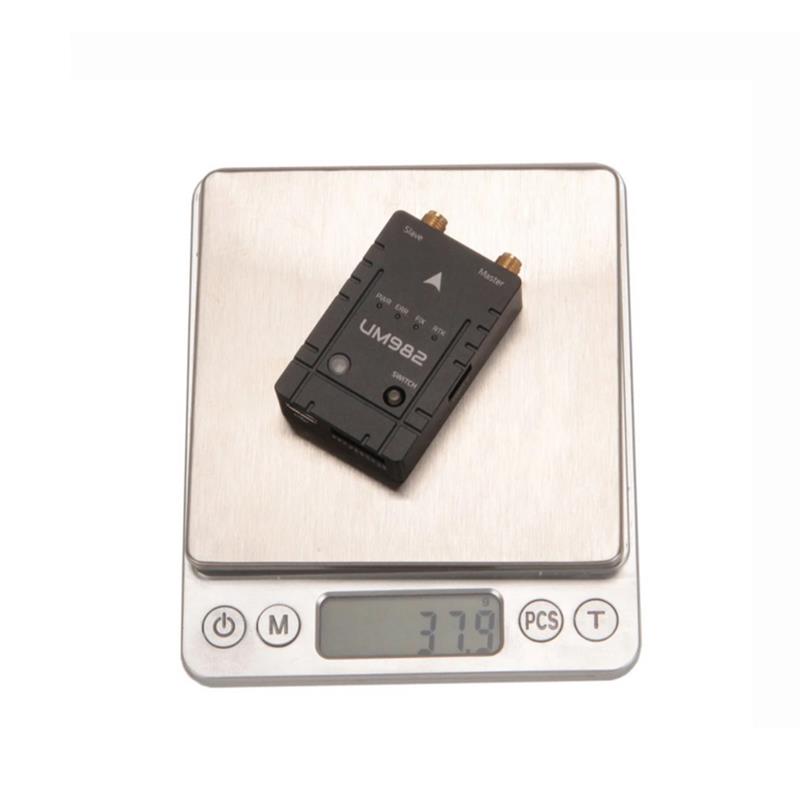

| Weight: | 37.9g (without antennas) |
Tips:
It is recommended to use the H-RTK F9P Base or F9P Helical as your base station, because it’s simple setup procedure in Mission Planner & QGroundControl. Neither MP nor QGC can configure the UM982 automatically as base station at this moment, additional manual setup is required.

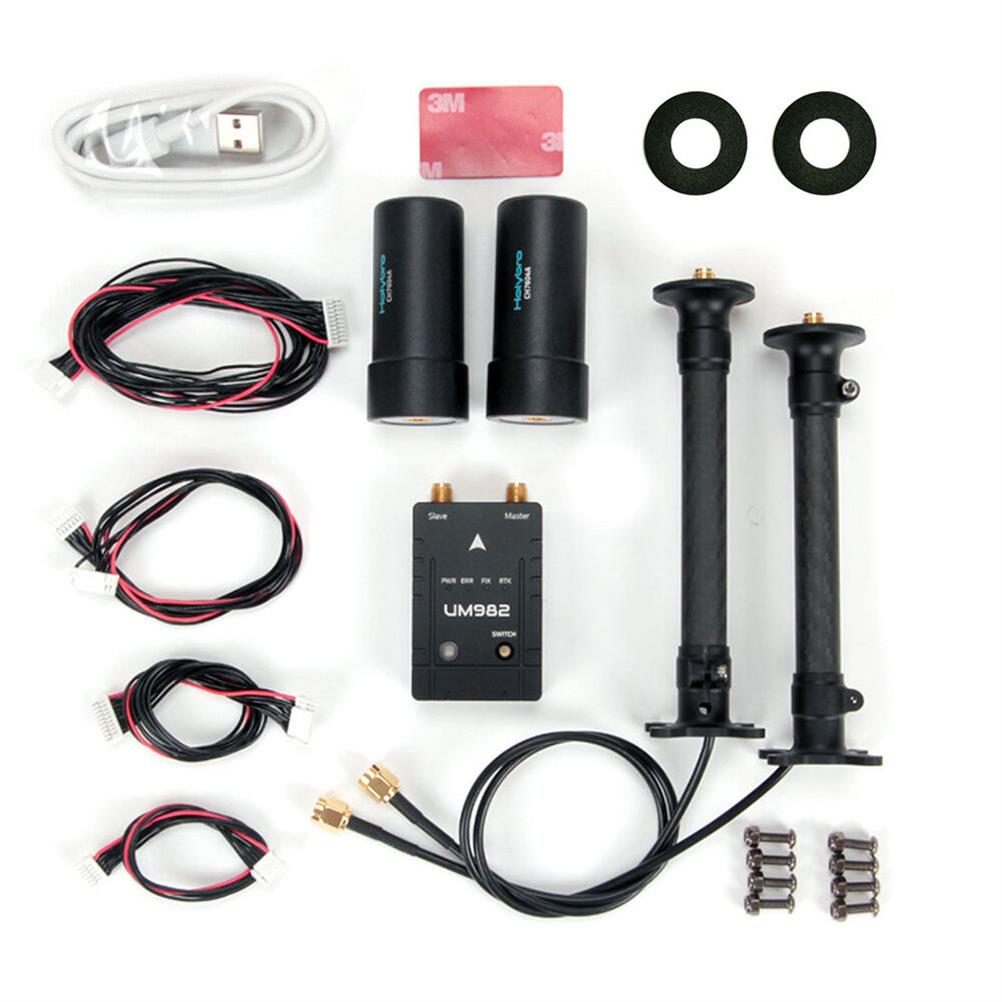

Package Included:
1x H-RTK UM982
2x High Precision Helical Antennas
2x Antenn AMounts
2x SM ACables
2x 10pin – 10pin JST-GH Cables
1x 10pin – 6pin JST-GH Cable
1x 6pin – 6pin JST-GH Cable
Features:
The UM982 is equipped with dual antennas enabling Moving Baseline Yaw (GPS Heading) with just a single module, adding flexibility to your system design.
It can serve as an efficient replacement for traditional compass/magnetometer, thereby reducing system complexity.
It’s particularly suited to environments with high magnetic interference, ensuring consistent performance.
The product excels with its superior RTK performance, offering precise positioning and navigation.
The compact and lightweight design (37.9g without antennas) allows for easy integration into your systems.
Package Included:
1x H-RTK UM982
2x High Precision Helical Antennas
2x Antenna Mounts
2x SMA Cables
2x 10pin – 10pin JST-GH Cables
1x 10pin – 6pin JST-GH Cable
1x 6pin – 6pin JST-GH Cable
