UBEC-8A 8A/16A BEC Dual-UBEC 8A+4A Dual Channel UBEC Servo Separate Power Supply For RC Drone Car Airplane Robot
Description:
Item Name: UBEC
Version: UBEC 8A, 8A+4 ADual-UBEC (optional)
Specifications:
Model | UBEC 8A | 8A+4A |
Input Voltage | 6-36V (2-8s lipo) | 15-26V (4-6s lipo) |
Output Voltage (port-1) | 5.2/6.0/7.4/8.4V | 5.2/6.0/7.4/8.4V |
Output Voltage (port-2) | 5.2/6.0/7.4/8.4V | 12V |
Voltage Control | Jumper Pin | Jumper Pin |
Output Voltage (port-1) | Max 8 Amp/ Peak 16 Amp | Max 8 Amp/ Peak 16 Amp |
Output Voltage (port-2) | Max 8 Amp/ Peak 16 Amp | Max 4 Amp/ Peak 6 Amp |
Size Without Wire | 51*36*8mm | 51*36*8mm |

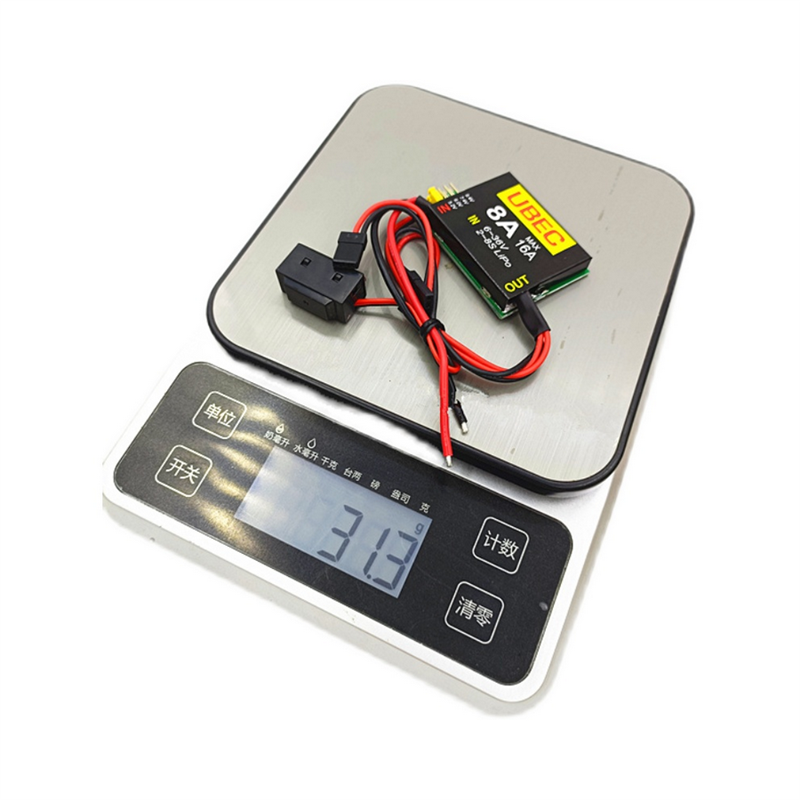

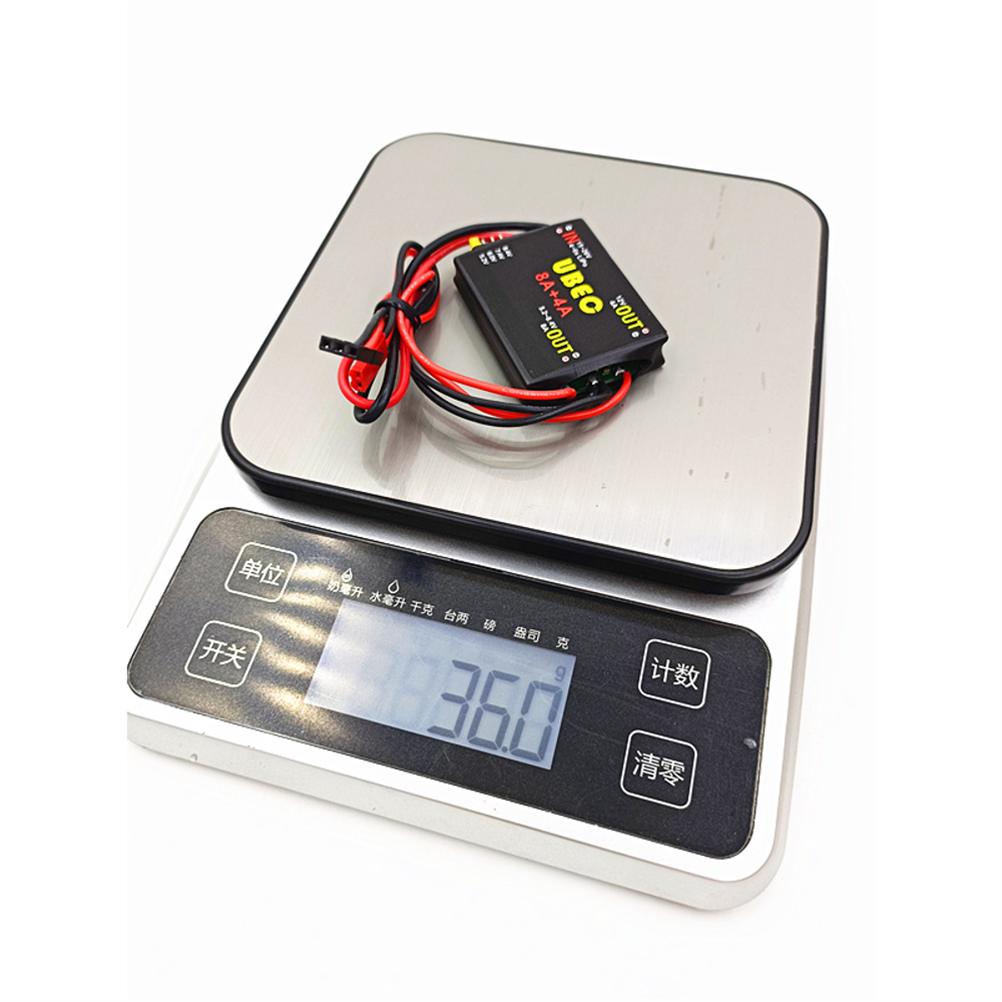

Net Weight | 32g | 46g |

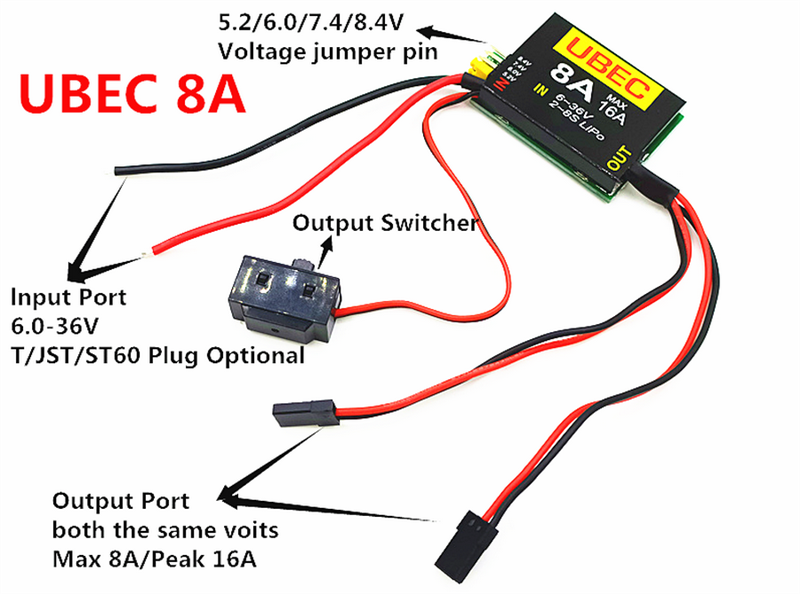

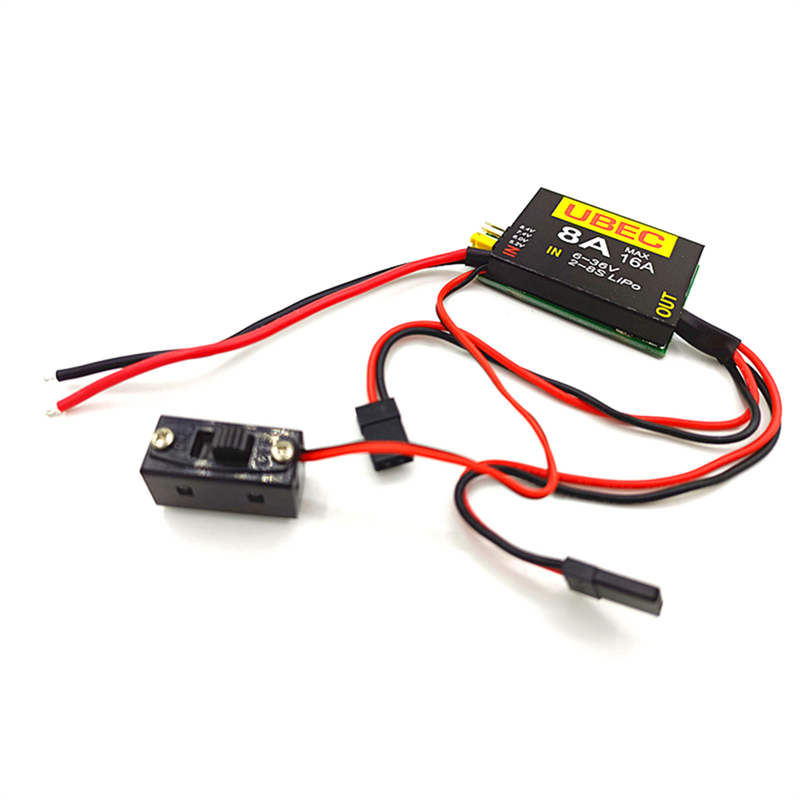

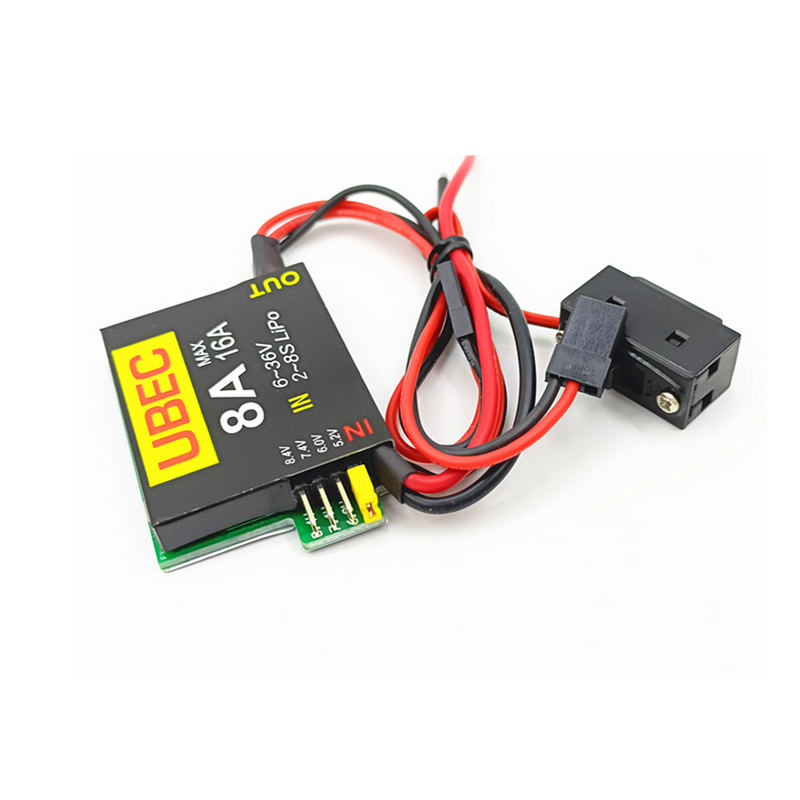

Features of UBEC 8A:
– High efficiency DC-DC regulator chip is adopted, with conversion efficiency exceeding 90%.
-The output voltage can be selected in four gears (5.2/60/7.4/8.4 V), which can meet the use of various voltage specifications for on-model equipment.
– Dual parallel output, capable of carrying greater current.
– It has functions such as overcurrent protection, output terminal short circuit protection, overheat protection, and is safe and reliable.
– External switch for easy opening and closing of UBEC.
– It has a working status indicator, which illuminates when UBEC operates normally.

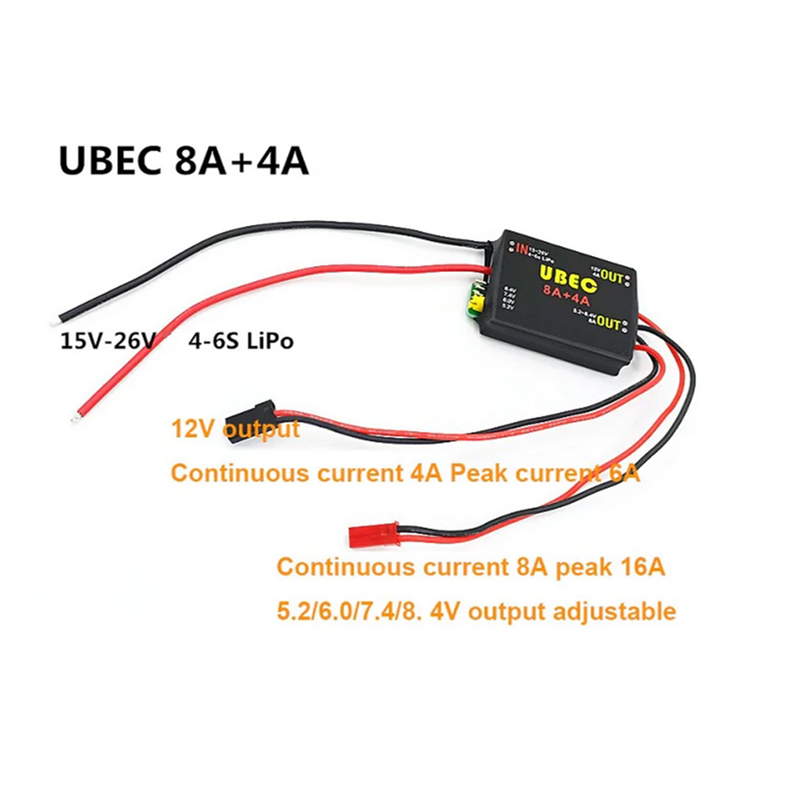

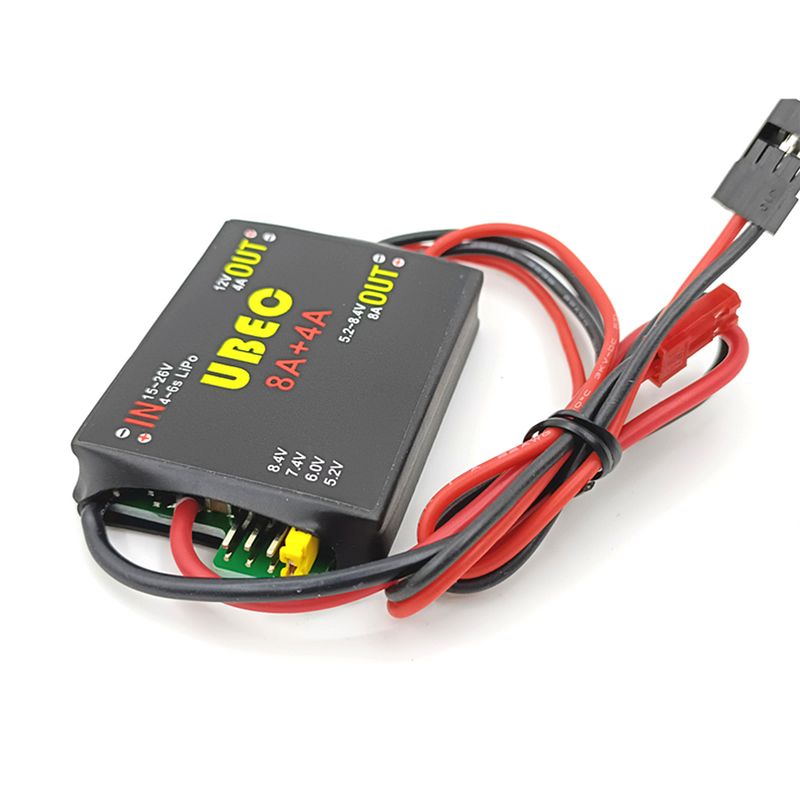

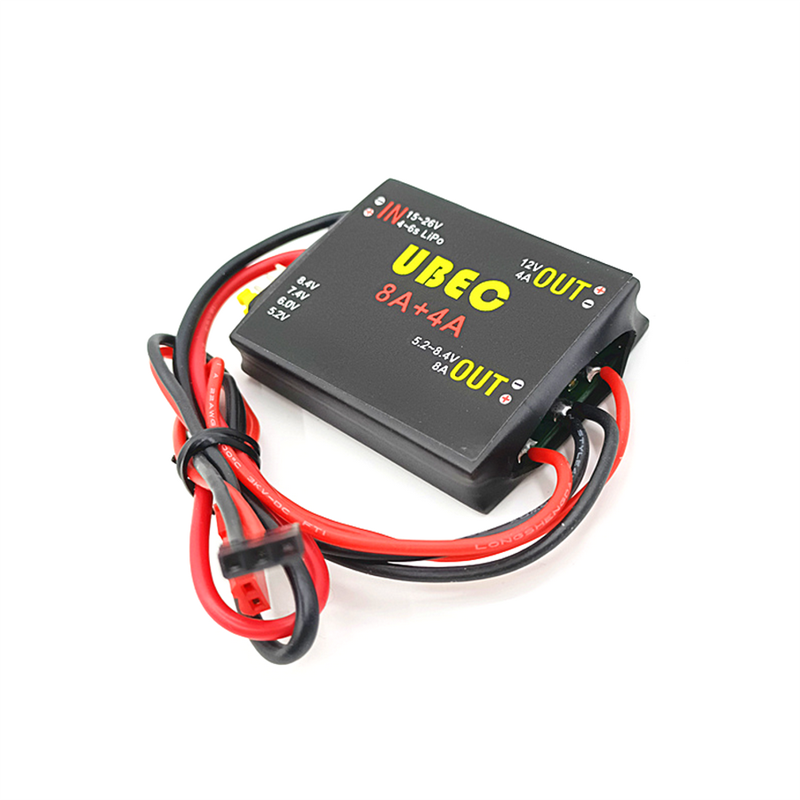

Features of 8A+4A Dual UBEC:
– High efficiency DC-DC regulator chip is adopted, with conversion efficiency exceeding 90% and high efficiency.
– One output voltage with four options (5.2/6.0/7 4/8.4V) can meet the requirements of various voltage specifications for aircraft model equipment.
– A fixed 12V voltage output is available for cameras, video transmitters, PTZ, and other devices.
– It has functions such as input reverse connection protection, overcurrent protection, output short circuit protection, overheat protection, and is safe and reliable.
– It has a working status indicator, which illuminates when UBEC operates normally.
Package Included:
1x UBEC
