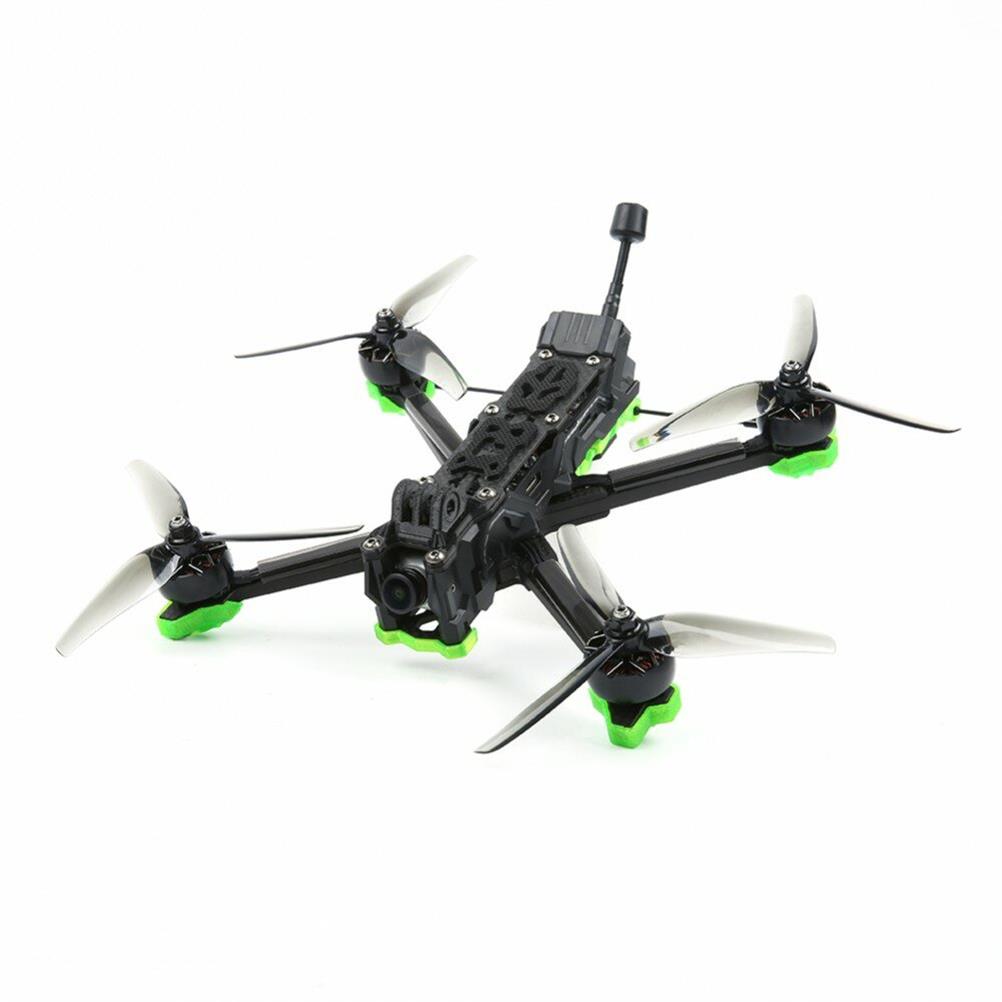

iFlight Nazgul5 Evoque F5 F5X Squashed X GPS Version HD/Analog 4S / 6S 5 Inch FPV Racing Drone w/ Vista Nebula Pro Digital System
Notice: HD Version, change into Vista Nebula Pro Digital System.
At present, old
Polar / new Nebula Pro Camer A
Camera mix. stock
( Random shipment)
Note:
GPS included
November 2021??HD VersionSucceX Mini F7 TwinG flight controller changed to BLITZ Mini F7 Flight Controller and BLITZ Mini E55 4-IN-1 ESC.
PRODUCT DESCRIPTION
The Secret Of Ultimate Performance Is Passion
That was the slogan for our newest approach to creating this piece of art! Fully protected electronics, fully illuminated, coupled with all the latest and greatest electronics we can offer. Months of engineering went into this BNF and all the lessons learned before, making sure that beginners, as well as experienced pilots, would fully enjoy using the new Nazgul Evoque from the first second they use it.
Lightweight Side Panels – Keep Your Rig Clean
Ever felt like a lawnmower cutting through the grass in your early days, props cutting and throwing wet grass all over and inside your flight stack Well… These days are over! The new side panels will not only protect from wetness but also protect the internals from any strikes hitting off little components from your flight controller.
Secured Integrated XT60 Battery Plug – As Safe, It Can Be
Dangling battery plugs will ALWAYS find a way in your props, there’s always that one time you forgot to secure it properly and almost cut off the cable while flying. There was only one way to get rid of that and we think we might have found a solution. The integrated XT60 connector on the back lets you securely plug in your battery leading all cables away from your props.
High-Performance Electronics – F4 45A Power Stack(Analog Version)
Our SucceX Mini F4 flight control, modern USB type-C plug, 32MB flash for every tuning session, and 5 UARTs for whatever equipment you might possibly wanna use. Power from the gods with our new SucceX Mini 45A ESC packed with better heat-dissipating Mosfets and a whole bunch of SMD capacitors to filter out possible motor noise, besides the pre-soldered directly installed Capacitor right next to your battery leads.
High-Performance Electronics – F7 55A Power Stack (HD version)
Our SucceX Mini F7 TwinG flight control with Gyro Fusion technology, modern USB type-C plug, 32MB flash for every tuning session, and 5 UARTs for whatever equipment you might possibly wanna use. Power from the gods with our new SucceX Mini 55A ESC packed with better heat-dissipating Mosfets and a whole bunch of SMD capacitors to filter out possible motor noise, besides the pre-soldered directly installed Capacitor right next to your battery leads.
XING2 Performance Motors – The Best Motors Just Got Better
7075 aluminum bell, 5mm titanium alloy shaft, NSK durable bearings, Center slotted magnets for better response, and lower air gaps for a higher magnetic flux with increased performance and efficiency. Not to mention the typical XING damping ring between the bell and bearing to increase durability and smoothen out your flights.
Illumination – Let 1t Be Green
360-degree illumination for day and night. Maybe the prettiest BNF out there but also a practical one. The bottom light indicates battery voltage, a quick check gives you a hint of the voltage still remaining; Never lift off with an empty battery again. Installed LED wires in the side panels and the bottom of the arms are also illuminated and gives you some style at the next night’s race.
SucceX Force 600mW – Analog Reliable Power
Equipped with our latest 600mW Mini VTX to go far. Stable power output and fast frequency lock without interfering with other pilots when powering up. VTX telemetry built-in as well as electrical interference filters for whatever noise that might get through and an MMCX antenna connector that doesn’t hop off in wild crashes.
Specifications:
Brand: iFlight
Item Name: Nazgul5 Evoque F5 HD/Analog with GPS FPV Racing Drone (Squashed X )
| Nazgul5 Evoque F5X HD 4S / 6S FPV Racing Drone | Total Dimensions: 136*190mm (body dimension) Bottom to top distance: 28mm Arm Thickness: 6mm Bottom plate thickness: 3mm Top plate thickness: 3mm Upper(middle) plate thickness: 3mm XING2 2207 motors (4S/6S) FC // SucceX-D Mini F7 ESC // SucceX Mini 55A BLHeli_S Camera&VTX: Caddx Polar Vista Nazgul F5 propellers Weight: 412g (without battery and GoPr0 mount) |
| Nazgul5 Evoque F5X Analog 4S / 6S FPV Racing Drone | Total Dimensions: 166*139mm (body dimension) Bottom to top distance: 28mm Arm Thickness: 6mm Bottom plate thickness: 2.5mm Top plate thickness: 2mm Upper(middle) plate thickness: 3mm FC // SucceX- E Mini F7 ESC // SucceX-E Mini 45A BLHeli32 XING-E Pro 2207 4S 2750KV / 6S 1800KV Camera: RaceCam R1 Mini 1200TVL 2.1mm lens 19*19 FPV Camera VTX: 5.8GHz SucceX Mini Micro 600mW VTX Nazgul F5 propellers Weight: 392.6g (without battery and GoPro mount) |
| FC // SucceX-D Mini F7(HD) | MCU: 216MHz STM32F722 Gyrox ICM20689 Blackbox2MB Betaflight OSD: YES BEC: 5V 2.5A / 9V 2.5A Current sensor scale: 100 Inverter for SBUS input (UART2-RX) Smart audio & Tramp VTX protocol supported Beeper pad: Yes RSSI input pad: No UARTs Motor outputs: 4 8 pin 4in1 ESC port (GND, VBAT, M1, M2, M3, M4, CUR, R5) 6 pin DJI Air Unit port (R1, GND, R2, T2, GND, 9V) BLHeli32 Telemetry??Yes Input voltage??recommended 2-6S, MAX 6S Firmware target: IFLIGHT_F722_TWING Mounting pattern: 20*20mm ??3 Dimensions:29*29mm USB Type-C |
| FC // SucceX-E Mini F7(Analog) | MCU: STM32F22RET6 216 MHz Gyro: MPU6000 OSD: IFLIGHT OSD ??AT7456E/div>BEC: 5V 2.5A BlackBox: 16MB Uart: 4*UART(UART1??UART2??UART4??UART5) UART1 for VTX HD/Analog Telemetry UART2 for Receiver UART4 for GPS UART5 for ESC Telemetry 4??Dshot/PWM outputs Smartaudio & IRC Tramp VTX protocol supported WS2812 led Strip: Yes Bepper: Yes Firmware: IFLIGHT_SUCCEX_E_F7 4.2.0 Outer Size: 27*27mm / 20*20mm ??3 mounting Weight: 4.9g |
| ESC // SucceX Mini 55A (HD) | Dimension: 31*29.5mm Mounting Holes: 20*20mm/??4mm Weight: 10.8g Supports 2-6S Lipo input MCUG071 Constant: 55 Amps Burst: 60 Amps Current sensor: Yes BEC: No Current rate: 100 Supports DShot DShot150/300/600/MultiShot/ OneShot etc. Firmware: BLHeli 32 Target: iFlight-G071-4IN1 |
| ESC // SucceX-E Mini 45A (Analog) | Input: 2-6S LiPoly Constant: 45 Amps (per channel) Burst: 55 Amps (per channel) BEC: No BlHeli32 telemetry: Yes Dimensions: 31×29.5mm Mounting Holes: 20*20mm ??3mm with Grommets ??2mm Weight: 6.7g (without motor wires) Target: iFlight-G071-4IN1 |
GPS
Model: M8Q-5883 GPS
GPS module: GPSSAM-M8Q
Frequencies: 72 channel
Compass module: QMC5883L
Baud Rate: 4800bps-115200bps (Default – 9600bps)
Sensitivity: Tracking: -162dBmCapture: -160dBm??Cold Start148dBm
Cold start: <29s
Hot start: <2s
Accuracy: Horizontal <2.5m average), SBAS < 2.0m average, Timepulse: RMS 30 ns
Maximum height: 50.000m
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Maximum acceleration: 4G
Refresh Rate: 10 Hz
GPS patch antenna size: 15 x 15 mm
Total dimensions: 20 x 20 x 10.5 mm
Weight: 8g
Input Voltage: 3.3V-5V??current 25mA
GPS pin definition: RX/TX UART
Compass pin definition: SDA/SLA
Package included/span>
1 x Nazgul5 Evoque F5 HD/Analog FPV Racing Drone (Squashed X )
1x iFlight M8Q-5883 GPS
4 x Nazgul F5 Prop
2 sets of Battery Pads
4 x Battery straps
1 x Screws bag
