EWRF FPV Dual Camera System 1000TVL CMOS Mini Two Cameras + 5.8Ghz 600mW 40CH VTX + 3CH Switch Support PMW for RC Racing Drone
Size Conversion
Inches
Centimeters
Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.
Note: The switcher is blue color instead of green.
Features
Support 3 cameras(package includes 2 cameras)
Plug and play
Description
Model : Dual Camera Combo

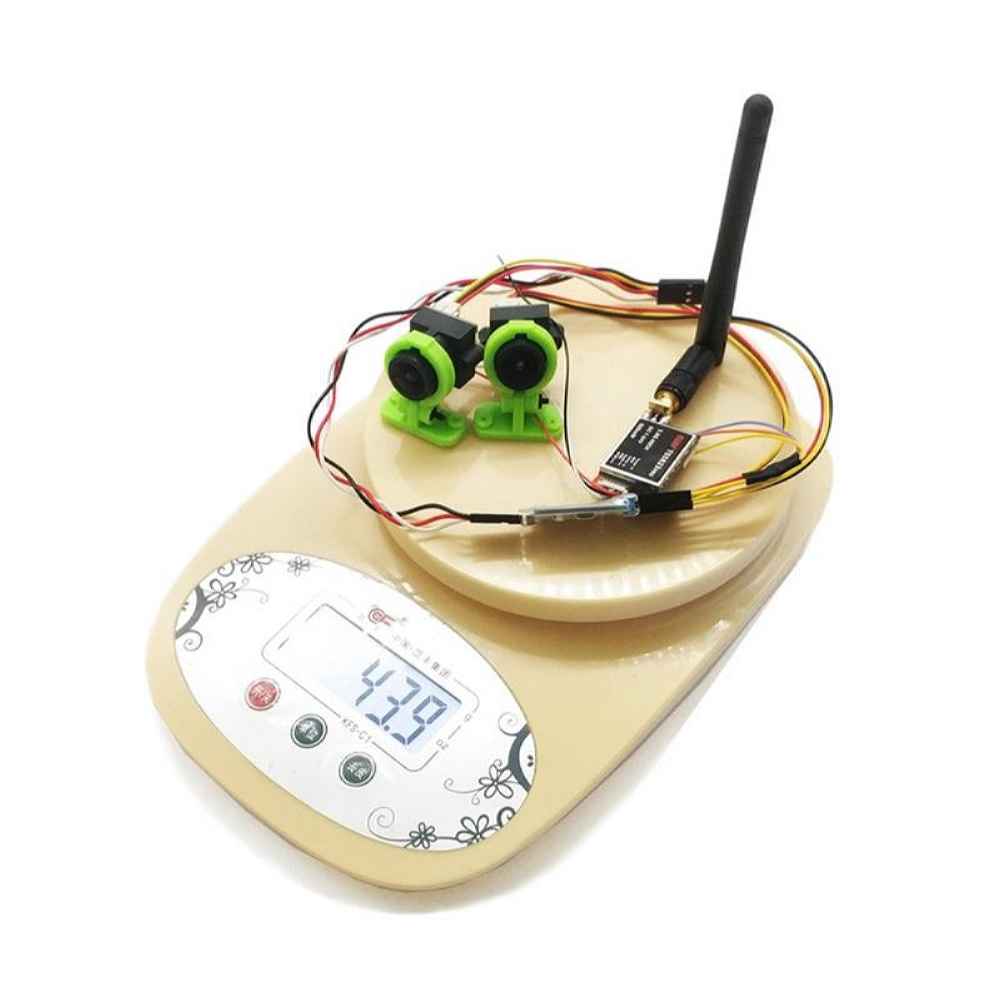

Weight : 43.9g
Specification

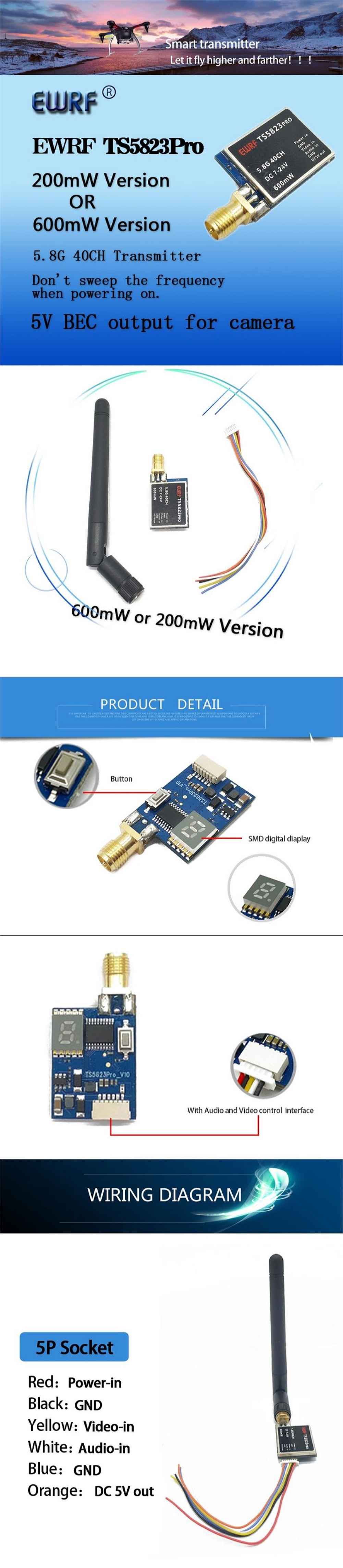

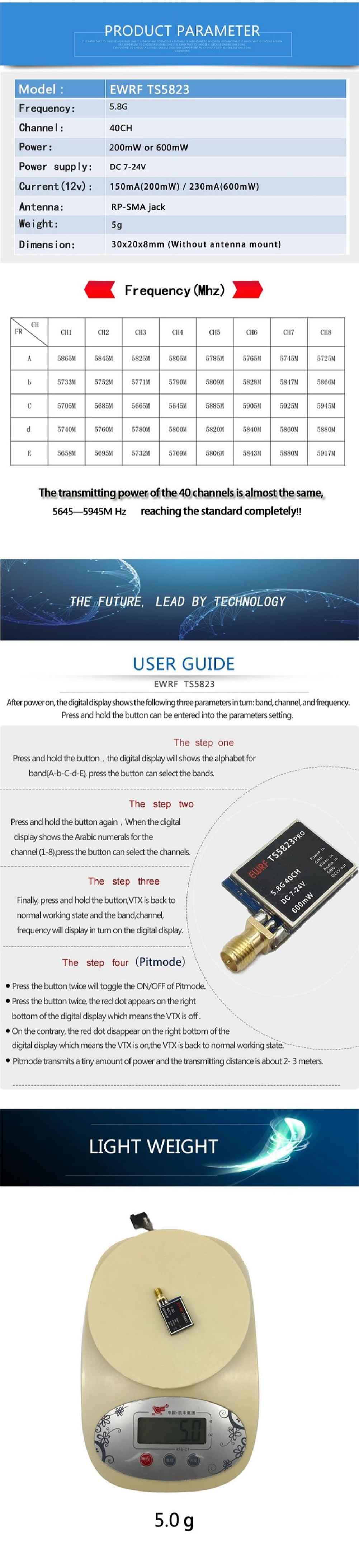

Transmitter
Model : TS5823
Power Supply : 7V-24V
VTX Power : 600mW
Frequency : 5.8Ghz
Channel : 40CH
Antenna Connector : RP-SMA
Working Current : 230mA@600mW 12V
Transmission Distance : 600mW=2km(in open area,with clover antenna)
Weight : 5g
Dimension : 30 x 20 x 8mm (without antenna port)

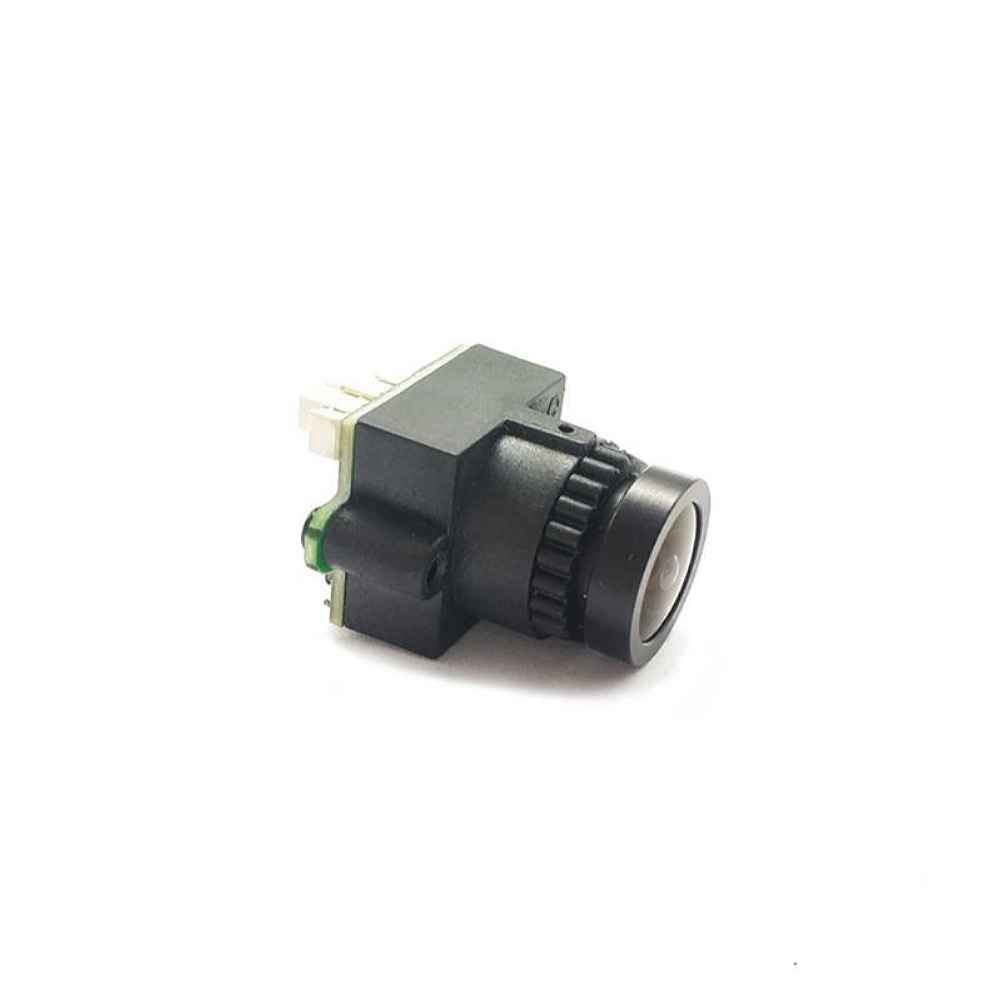

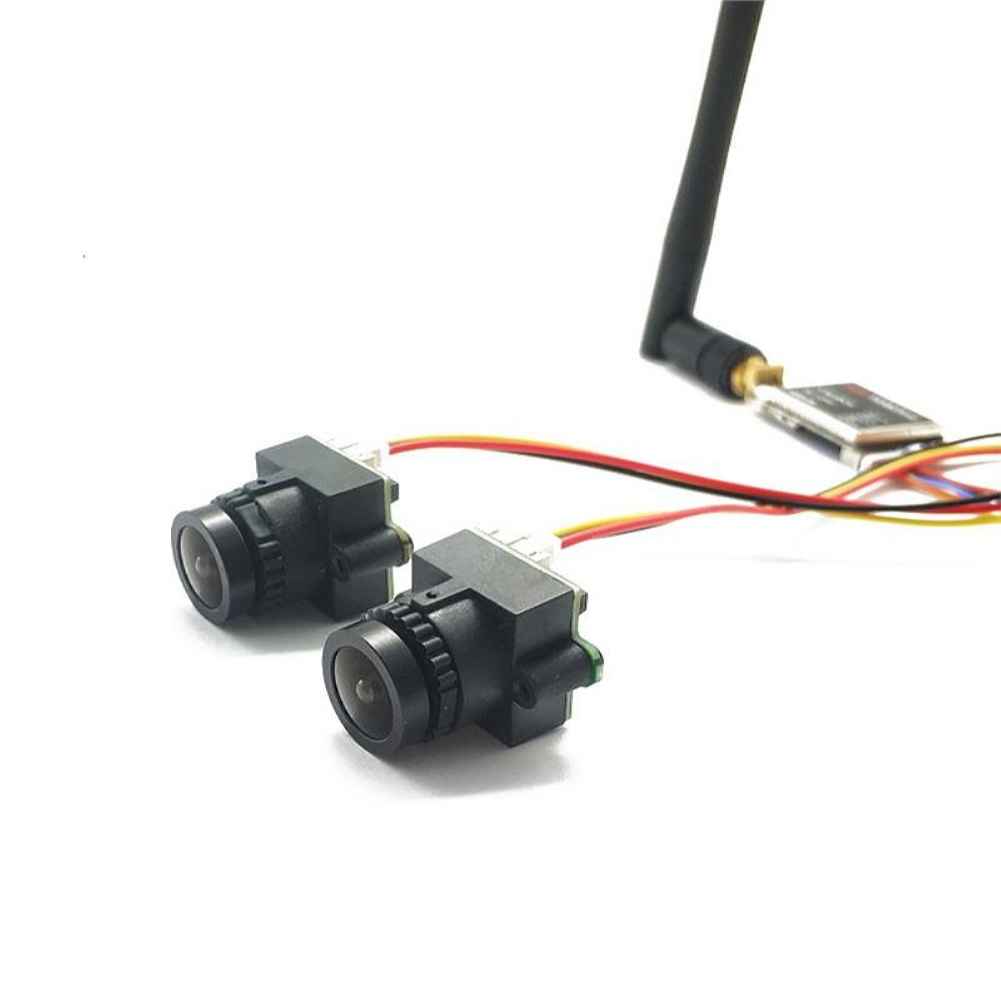

Camera
Material : ABS
Sensor : 1/3 CMOS
Resolution : 1000tvl
Focus : 2.8mm
Format : NTSC/PAL
White Balance : Auto
Back Light Compensation : ON/OFF
Synchronization : Inter-sync
Video out : 1.0Vp-p75??
Operating Voltage : DC12V FPV5-17V
Current : 70mA
Low RF interfernce and low power comsuption
Applicable models : QAV180,QAV210,QAV250…
Specifications of FPV ROTG01 receiver:
Click here

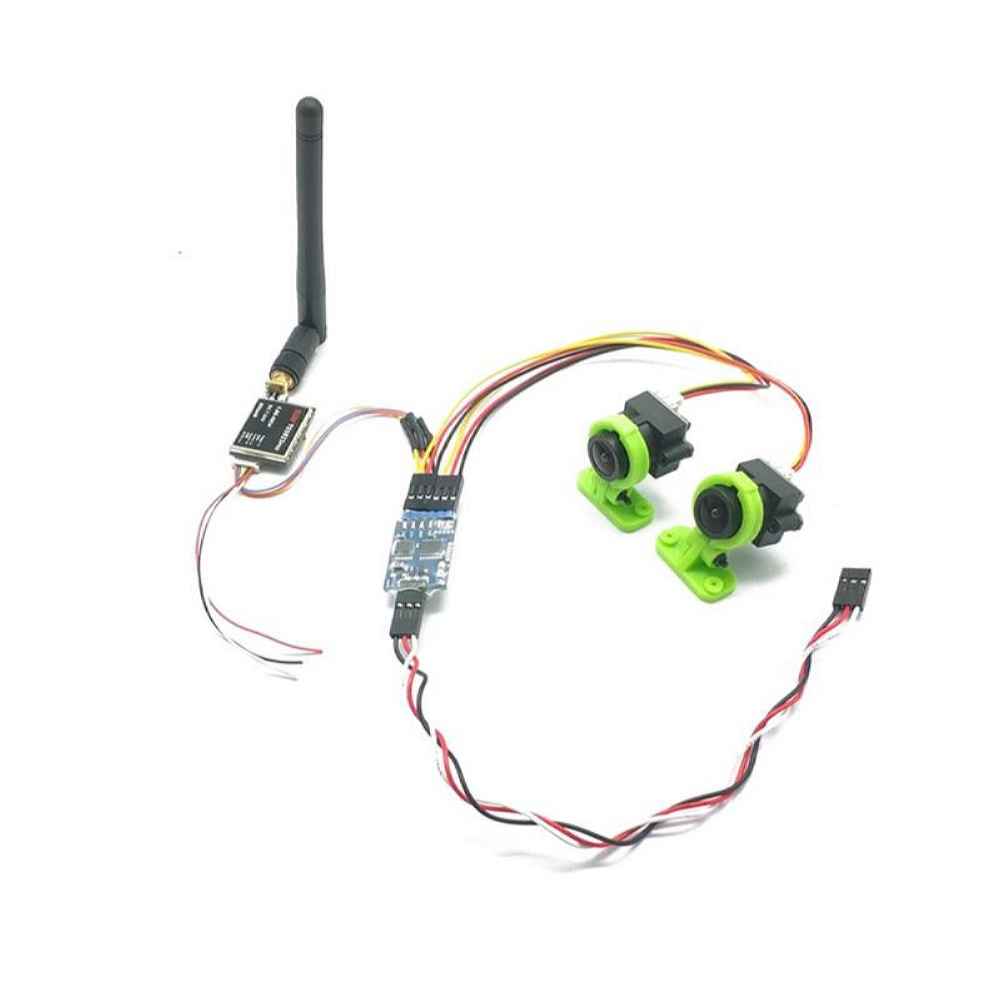

Package Included
1 x Transmittre
2 x Camera
2 x Camera Mount
1 x Switcher
1 x Cable wires set
