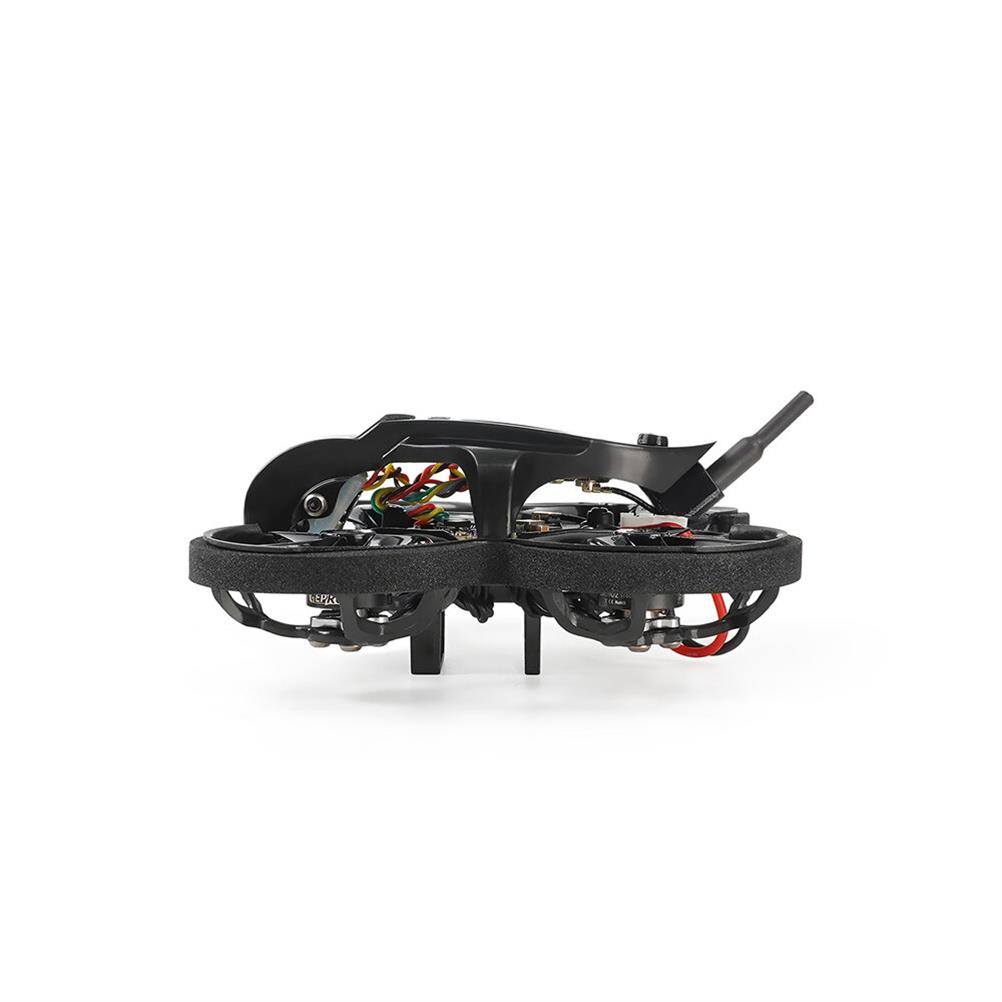

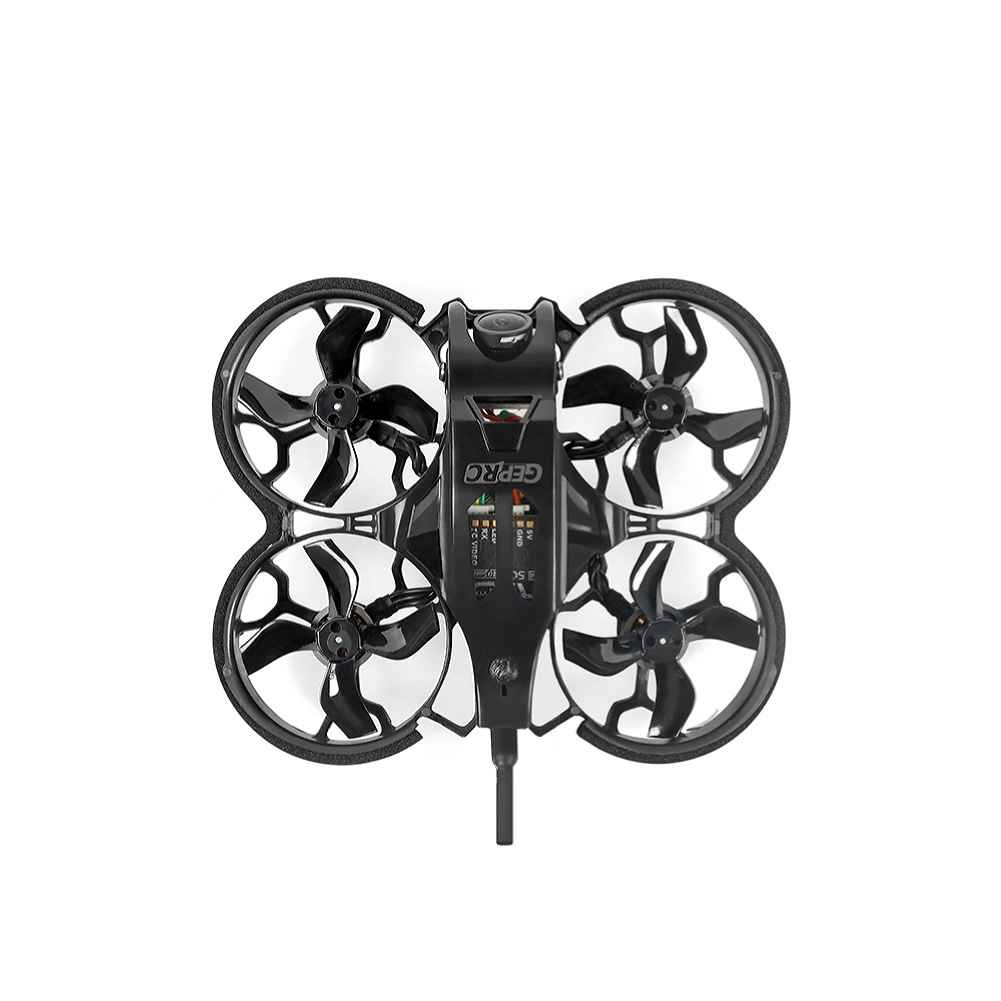

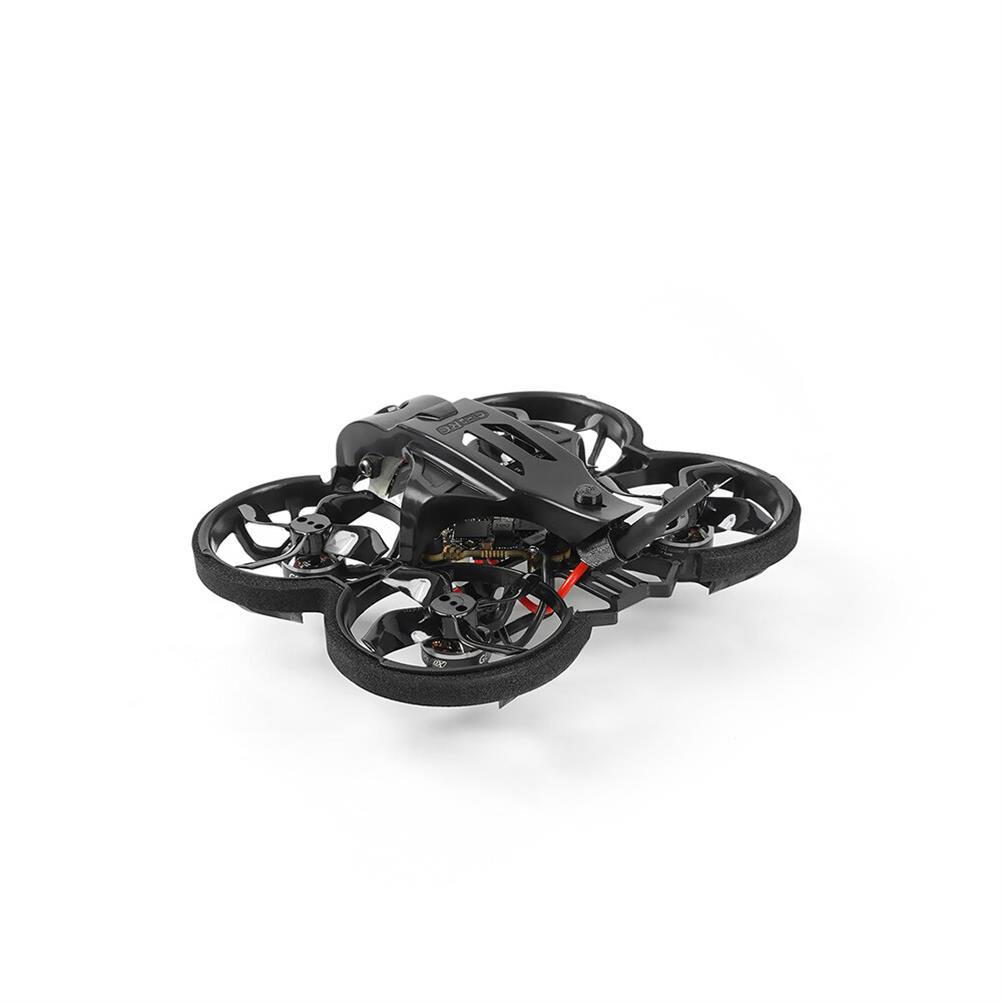

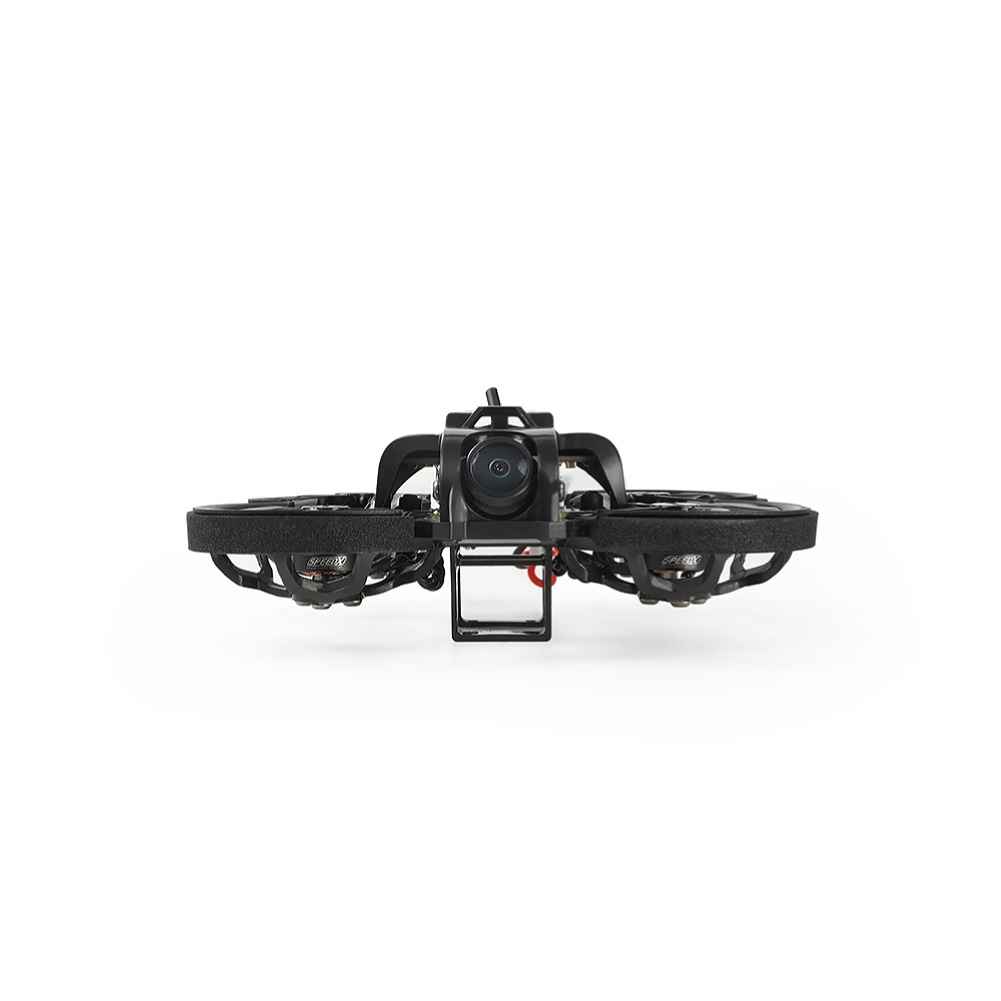

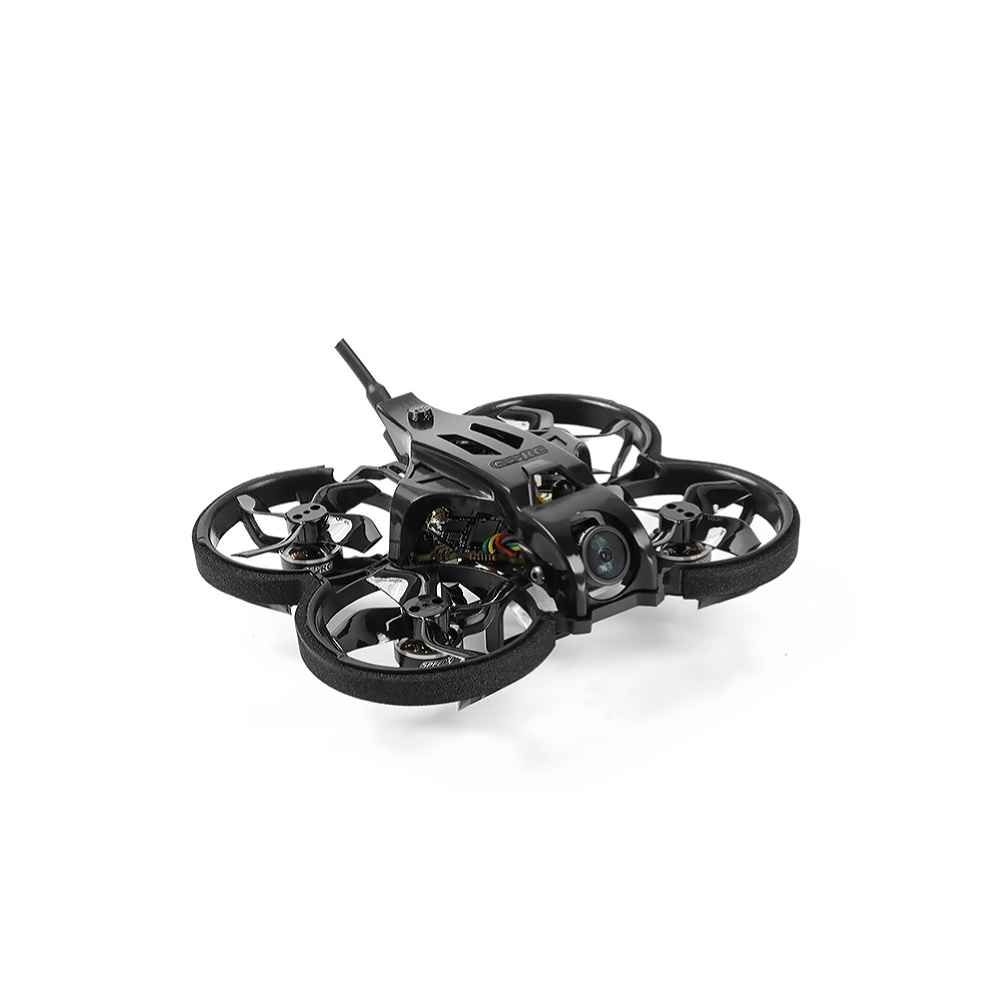

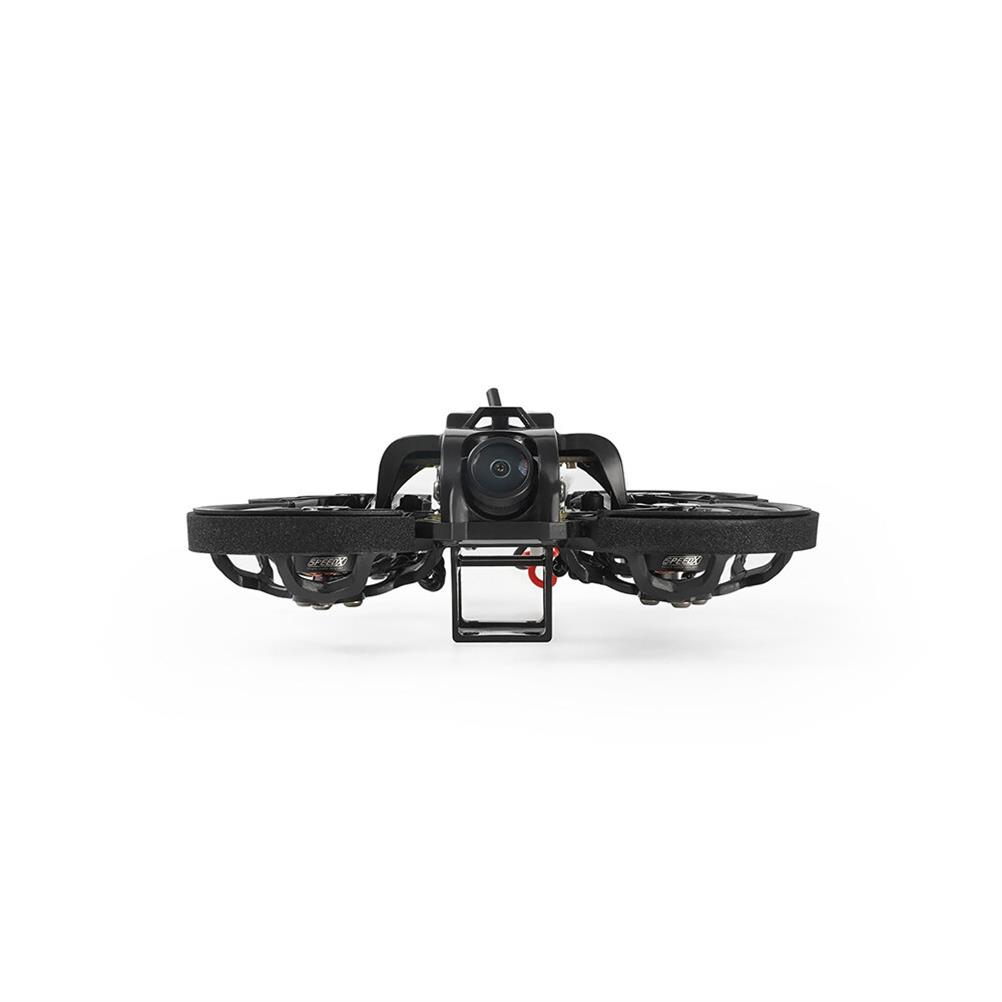

GEPRC TinyGO V1.3 79mm 1.6 Inch Whoop FPV Racing Drone RTF with TAKER F411 8Bit 12A TinyRadio ELRS 2.4G Remote Controller FPV Goggles

GEPRC TinyGO V1.3 79mm 1.6 Inch Whoop FPV Racing Drone RTF with TAKER F411 8Bit 12A TinyRadio ELRS 2.4G Remote Controller FPV Goggles

Feature:
l
TinyGO is very suitable for indoor flight, More than 6 minutes of flight time
l
Using TAKER F411 8Bit 12A FC system, reliable and stable
l
No Propellers in view, Anti-jamming VTX, NO Jello flight Footage, stable flight picture
l
The Newly Developed TinyRadio GR8 Remote Controller is specially designed for Novice and indoor flight
l
High-Quality FPV Goggle, High definition 800 * 480px, sensitive 5.8G receiver
l
Ready To Fly Kit, Including a GEPRC Fashion Fly bag, Portable and Light weight.
l
There are Two versions: The normal version is suitable for daily practice, The 4K version can Record 4K 60fps Video.
Configuration
l
Brand: GEPRC
l
Model: TinyGO V1.3
l
Frame: GEP-TG16
l
Motor to Motor: 79mm
l
FC: TAKER F411 8Bit 12 A
l
MCU: STM32F411
l
IMU: 42688-P
l
Blackbox: 16Mb
l
OSD: BetaFlight OSD w/ AT7456E chip
l
ESC: 8Bit 12 A
l
VTX: RAD Whoop 5.8G 25~400mw VTX
l
Camera: Runcam Nano2/Caddx Loris 4K 60fps
l
Propeller: GEMFAN 1636*4 (4 pairs)
l
Motors: GR1102 10000Kv
l
Receiver: Integrated ELRS SPI receiver
l

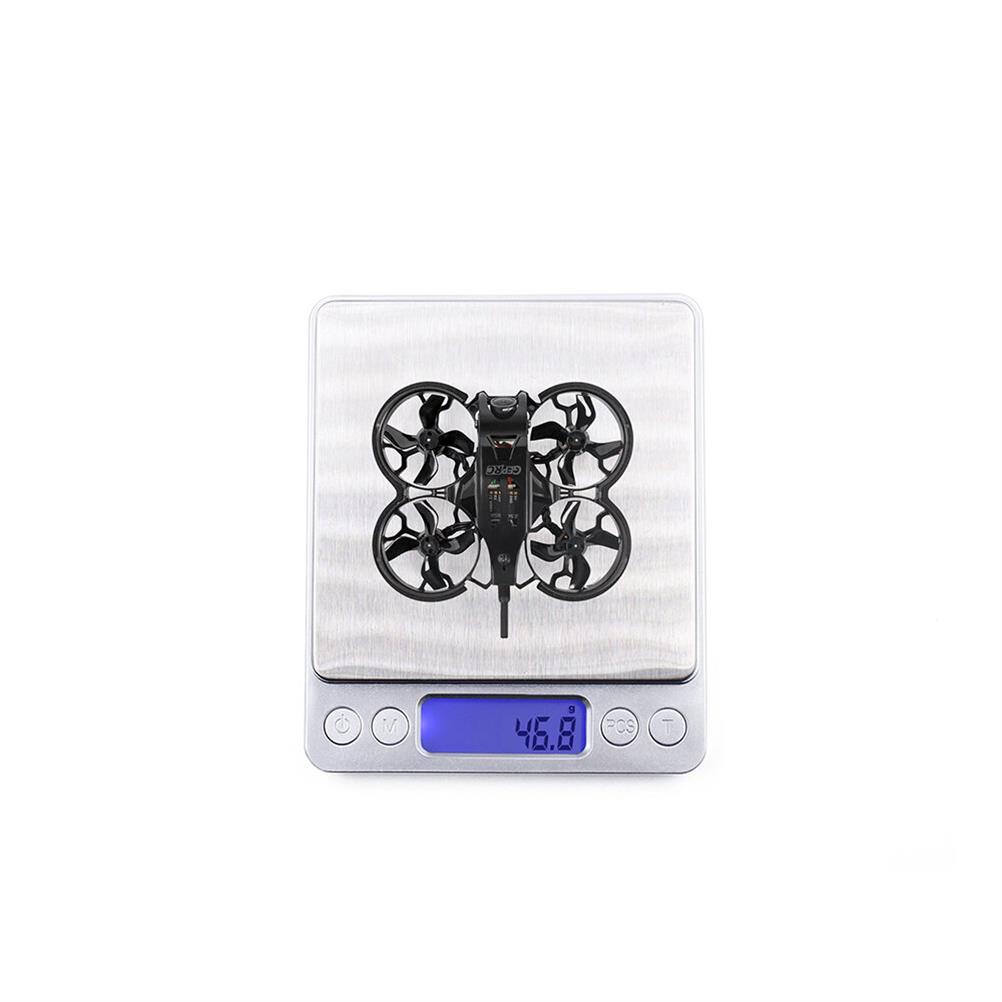

TinyGO Racing Weight: 48 Grams
Remote Controller
l
TinyRadio ELRS 2.4G Remote Controller
l
Radio Frequency: 2.4GHz
l
Radio Frequency: 2.4GHz
l
Range: 1000+ meter
l
Channel: 8
l
Transmit Power:<500mW
l
Antenna interface : SM A
l
Low Voltage alarm: <6.6v
l
Batteries: 2 x 18650 Batteries (not included)
l
TinyRadio ELRS Remote Controller
l
Radio Frequency: 2.4GHz
l
Radio Protocol: FHSS
l
Channel: 8
l
Transmit Power: < 20 dBm
l
Antenna interface: SM A
l
Low Voltage alarm: <6.6v
l
Batteries: two 18650 batteries or a 2S battery.(not included)
FPV Goggle/b>
l
Resolution: 800*480px
l
Size of Screen: 4.3 inch
l
Whole Size: 155mmx144mmx113mm
l
In-built batteries: 3.7v/2000mAh
l
Working Hours: 2.5 Hours
l
Weight: 314.6 Grams

FPV Batteriesnbsp;
l
Batteries Capacity: 530mAh
l
Voltage: 4.35v 1S1P
l
Discharge rate: 90C
l
Size:1mmx16.7mmx7mmnbsp;
l
Weight: 12.7 Grams
l
Interface: PH2.0
Chargernbsp;
l
Input power:5v??USB & Type Cnbsp;
l
Full charged Voltage:4.35v
l
Output current : 500mAh
l
Charging:It can charge 2 PCS 1s HV lipo 4.35v HP2.0/GNB27 plug batteries at the same time

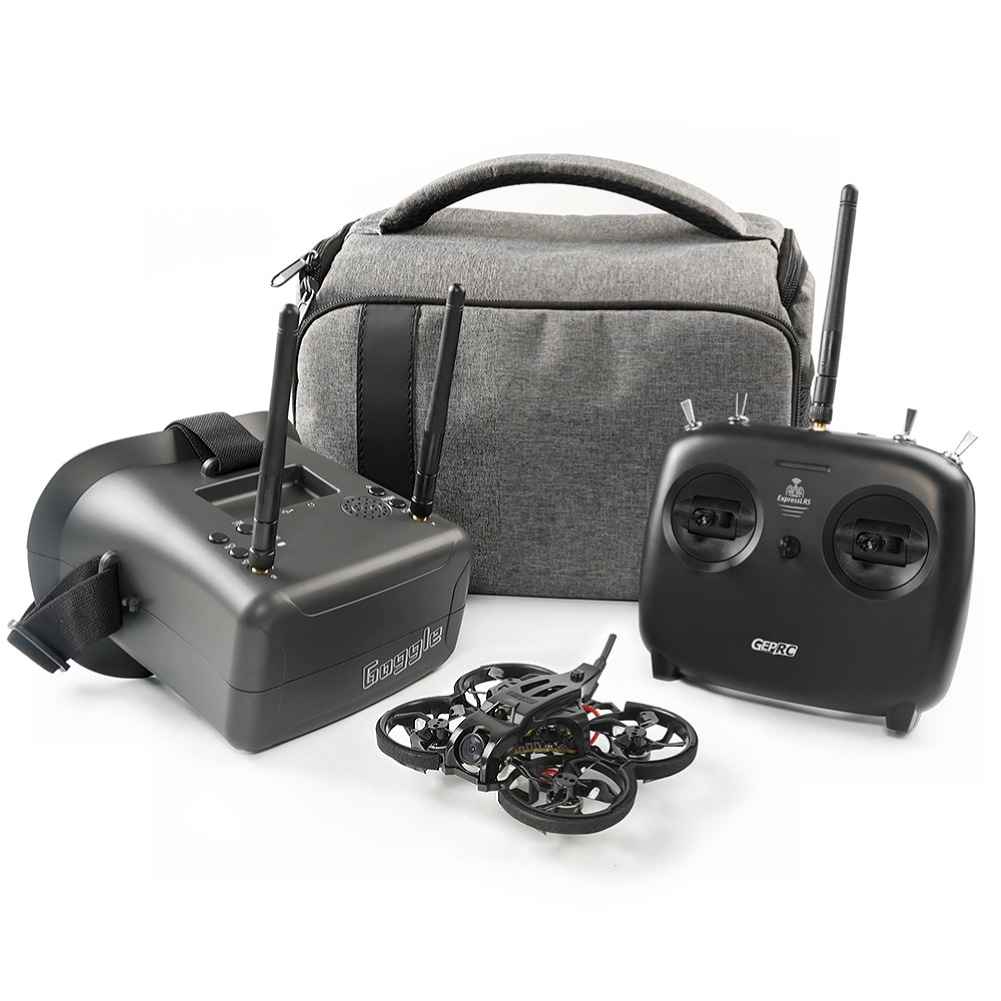

Package Include:
l
1x TinyGO TinyWhoop
l
1x TinyRadio GR8 Transmitter
l
1x GEPRC FPV RG1 Goggle
l
4x GEPRC LiHV 4.35v 90C Battery
l
1x Battery strap
l
4x Gemfan 1636*4 Props(pairs)
l
1x GEPRC Fly bag
l
1x Screwdriver
